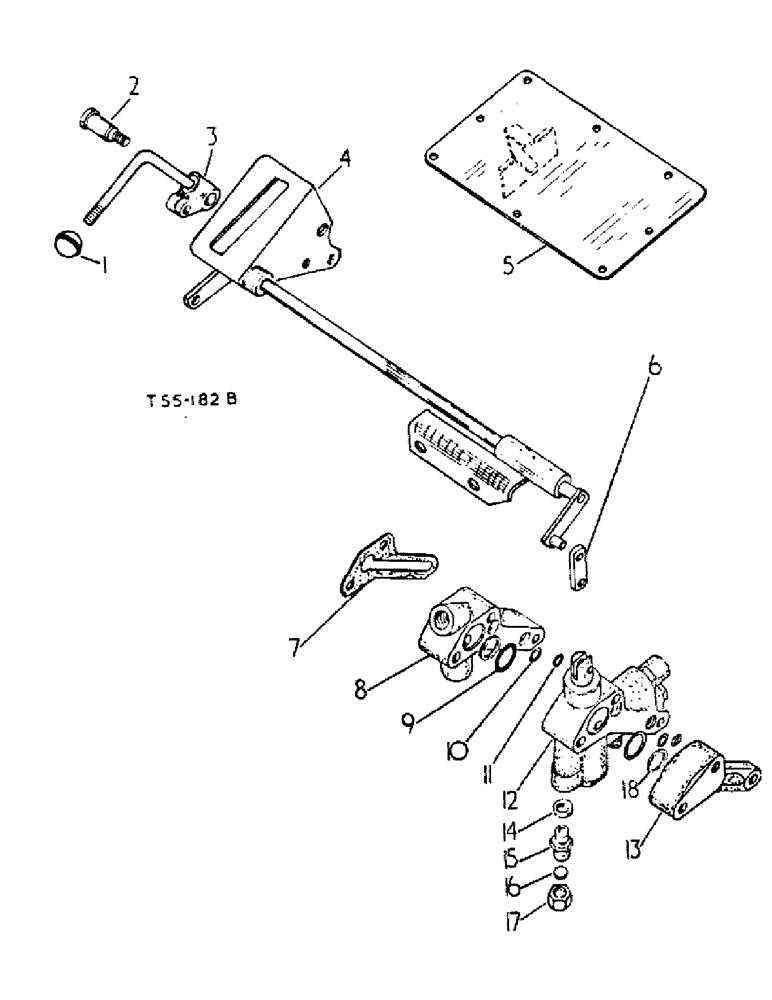

Запчасти Case IH 384 (10-20) - HYDRAULICS, AUXILIARY VALVE ATTACHMENTS, WITH ONE SA OR ONE DA VALVE (07) - HYDRAULICS

3123501R91

ATTACHMENT, single acting ind aux valve A

1шт.

3123505R91

ATTACHMENT, double acting aux valve B

1шт.

1

371602R1

KNOB

1шт.

2

(Not used)

1шт.

3

3114786R1

LEVER

RH control

1шт.

3066427R1

PIN

5/16 x 7/8 std hd

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

4

3069016R91

SHAFT

ASSY, cross

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2 x 2-3/4 pln type 5

1шт.

102635

NUT,3/8"-16, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

2шт.

5

3044366R12

PLATE

top cover

1шт.

6

3061040R1

LINK

connecting

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, 5/16 x 1. pln hd type 1

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

7

3061055R2

GASKET

1шт.

8

3069023R1

BLOCK

adaptor

1шт.

9

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8

2шт.

10

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

7/16 x 5/8 x 3/32

2шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

2шт.

12

3069019R93

VALVE

single acting ind aux A

1шт.

12

3069020R93

VALVE

double acting aux B

1шт.

13

3069021R1

PLATE

valve cover

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3/8 x 5 type 5

2шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8 x 4-1/4 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

704743R91

SEALING WASHER

WASHER, dowty

1шт.

15

702270R2

ADAPTER

hose

1шт.

16

703619R1

GASKET

blanking off nut

1шт.

17

703618R1

NUT

blanking off

1шт.

18

3110297R1

RETAINER

o-ring

2шт.
