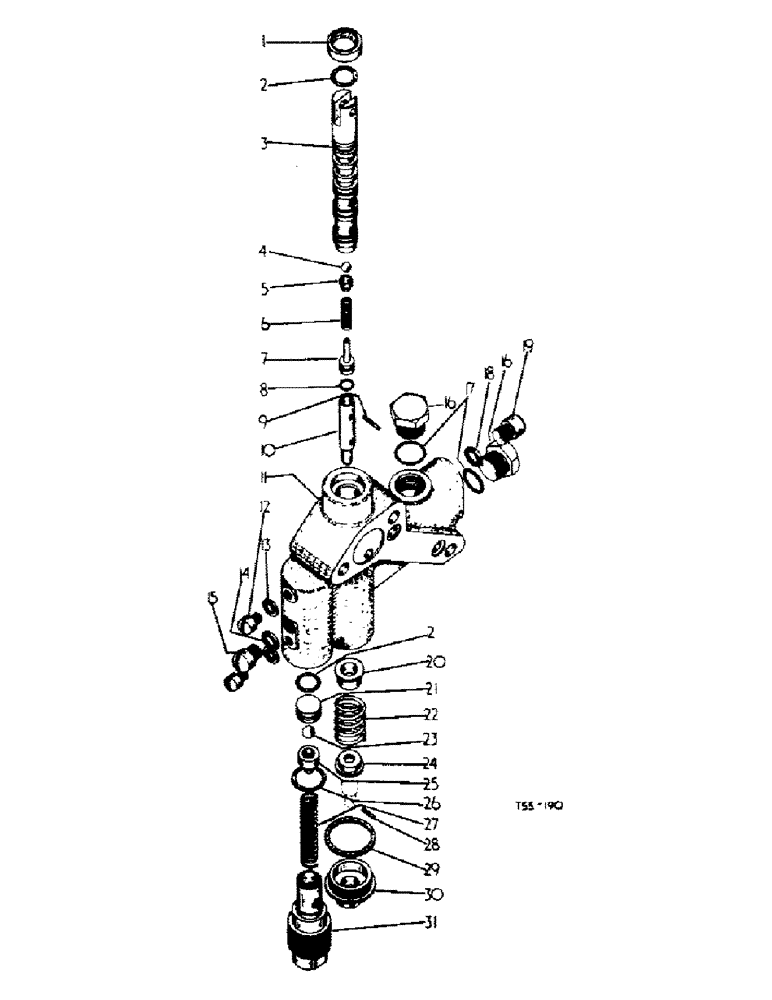

Запчасти Case IH 384 (10-19) - HYDRAULICS, DOUBLE ACTING INDEPENDENT AUXILIARY VALVE (07) - HYDRAULICS

3069020R93

VALVE

ASSY, auxiliary independent double acting

1шт.

1

3061049R1

SEAL

oil

1шт.

2

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

3

SPOOL, valve, order 3069042R92

1шт.

4

3072917R1

BALL,11/32" Dia

11/32

2шт.

5

3061046R1

SEAT

RIDER, ball

1шт.

6

3061047R1

SPRING

1шт.

7

3069044R1

SEAT

spring

1шт.

8

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16

1шт.

9

20948R1

PIN,1/8" x 5/8", Coiled

1шт.

10

3069043R1

END

spool

1шт.

11

BODY, valve, order 3069041R92

1шт.

12

140758

SCREW, 5/16 x 3/8 pln fil/hds mach

2шт.

13

751876R1

SEALING WASHER

WASHER

2шт.

14

709803R1

SEALING WASHER

WASHER

1шт.

15

437310

SCREW, 3/8-NF x 3/8 pln fil/hds mach

1шт.

16

9410360

PLUG

5/8 C-Z str thd o-ring boss

2шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

2шт.

18

3043969R1

WASHER

1шт.

19

110832

SPACER

SCREW, 7/16 x 1/2 pln fil/hds mach

1шт.

20

3069045R1

SEAT

spring top

1шт.

21

3069047R1

SEAT

relief valve

1шт.

22

3064800R1

SPRING

return

1шт.

23

3072883R1

BALL,3/8" Dia

3/8 dia

1шт.

24

3069046R1

SEAT

spring bottom

1шт.

25

751556R2

SEAT

RIDER, ball

1шт.

26

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1, class 6

1шт.

27

751557R1

SPRING

relief valve

1шт.

28

21007R1

PIN,1/8" x 1/2", Coiled

1шт.

29

3063547R1

WASHER

fibre

1шт.

30

3061051R1

PLUG

1шт.

31

3069048R1

HOUSING

relief valve spring

1шт.

3069042R92

BODY

ASSY, valve and spool, matched pair

1шт.
