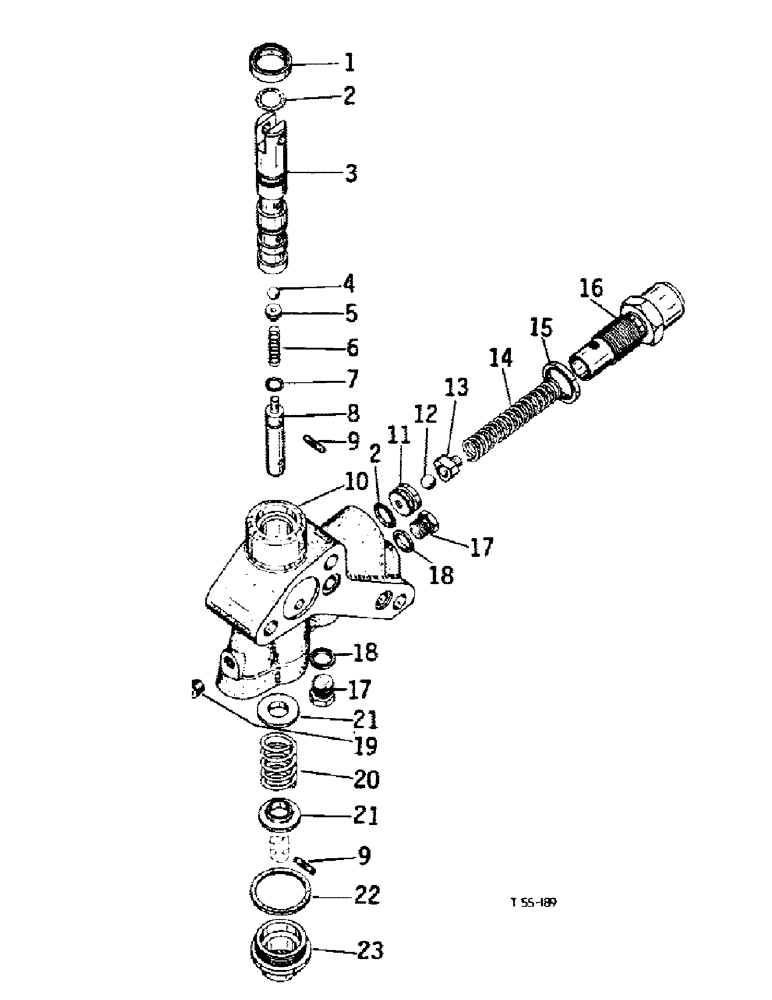

Запчасти Case IH 384 (10-18) - HYDRAULICS, SINGLE ACTING INDEPENDENT AUXILIARY VALVE (07) - HYDRAULICS

3069019R93

VALVE

ASSY, auxiliary independent single acting

1шт.

1

3061049R1

SEAL

oil

1шт.

2

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32

2шт.

3

SPOOL, valve, order 3069040R92

1шт.

4

3072917R1

BALL,11/32" Dia

11/32

1шт.

5

3061046R1

SEAT

RIDER, ball

1шт.

6

3061047R1

SPRING

1шт.

7

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16

1шт.

8

3061048R1

END

spool

1шт.

9

20948R1

PIN,1/8" x 5/8", Coiled

1шт.

10

BODY, valve, order 3069040R92

1шт.

11

3069041R1

SEAT

relief valve

1шт.

12

3072883R1

BALL,3/8" Dia

3/8 dia

1шт.

13

751556R2

SEAT

RIDER, ball

1шт.

14

751557R1

SPRING

relief valve

1шт.

15

3043070R91

WASHER, dowty 7/8 dia

1шт.

16

3061054R1

HOUSING

relief valve spring

1шт.

17

110832

SPACER

SCREW, 7/16 x 1/2 pln fil/hds mach

2шт.

18

3043969R1

WASHER

dowty

2шт.

19

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

1шт.

20

3064800R1

SPRING

return

1шт.

21

3061050R1

SEAT

spring

2шт.

22

3063547R1

WASHER

fibre

1шт.

23

3063999R1

PLUG

1шт.

3069040R92

SPOOL

BODY ASSY, valve and spool, matched pair

1шт.
