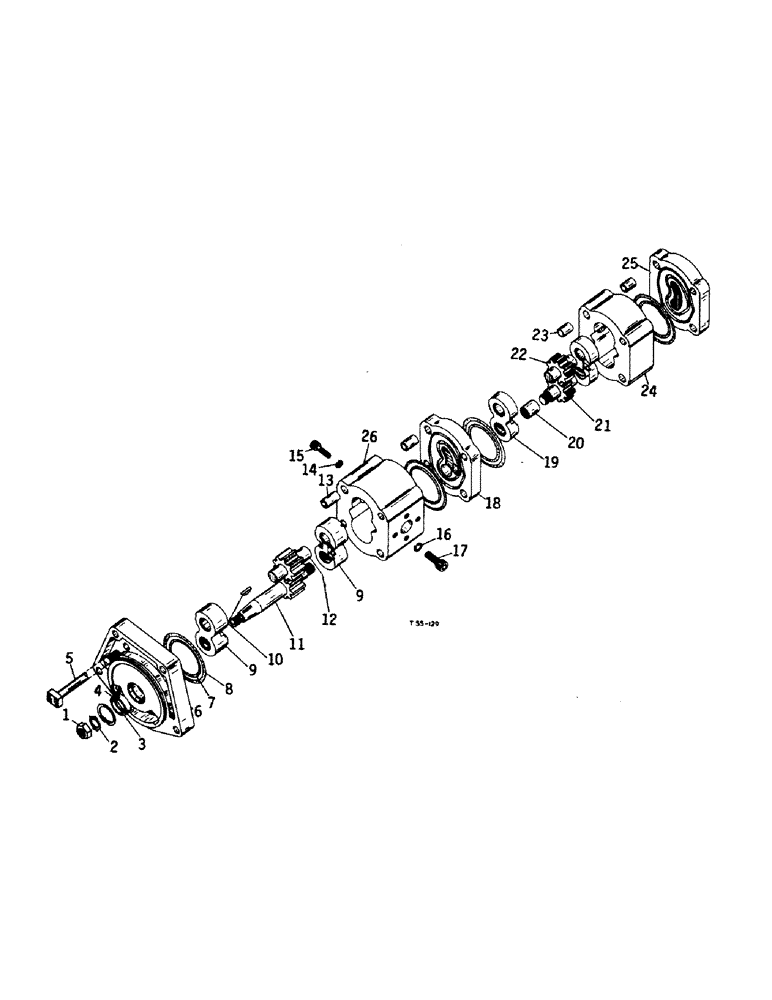

Запчасти Case IH 384 (10-17) - HYDRAULICS, DUAL PUMP, POWER STEERING (07) - HYDRAULICS

3063911R93

PUMP

W/O-RINGS, dual

1шт.

The gasket for the pump # (3063911R93) is on figure 12-8, ref #18; part # 703851R1

1шт.

1

3044638R1

NUT

lock

1шт.

2

706069R1

LOCK WASHER

WASHER, lock

1шт.

3

706066R1

RETAINER

RING, retaining

1шт.

4

SEAL, oil, order pkg. 3070955R91

1шт.

5

396404R1

BOLT

3/8 UNF x 5-1/2 sq hd

4шт.

214441

NUT

3/8 pln type 8 hex

4шт.

3064282R1

WASHER

lock

4шт.

6

708395R1

FLANGE

1шт.

7

O-RING, order pkg 3070955R91

4шт.

8

O-RING, order pkg 3070955R91

4шт.

9

3066762R91

BEARING

2шт.

10

706067R1

KEY

1шт.

11

3064268R1

GEAR

drive, 9 teeth

1шт.

12

3064269R1

GEAR

driven, 9 teeth

1шт.

13

3064276R1

PIN

4шт.

14

706072R1

WASHER

spring

2шт.

15

3044642R1

SCREW

1/4 UNC

2шт.

16

706053R1

SPRING WASHER

spring

2шт.

17

706075R1

SCREW

5/16 x 3/4

2шт.

18

3064270R1

PLATE

sandwich

1шт.

19

3066763R91

BEARING ASSY

2шт.

(Brass bushing inside brg. is N.S.S.)

1шт.

20

3064273R1

COUPLING, BREAK AWAY

COUPLING, muff

1шт.

21

3064271R1

GEAR

drive, 9 teeth

1шт.

22

3064272R1

GEAR

driven, 9 teeth

1шт.

23

3064277R1

PIN

4шт.

24

BODY (NSS)

1шт.

25

3064274R1

COVER

1шт.

26

BODY (NSS)

1шт.

O-RING, inlet, order pkg 3070955R

1шт.

O-RING, outlet, order pkg 3070955R91

1шт.

3064278R1

COVER

dust

1шт.

3064279R1

COVER

dust

1шт.

3064280R1

COVER

dust

1шт.

3070955R91

PACKAGE

seal

1шт.

3070957R91

GEAR-SET

PACKAGE, gear, rear pump

1шт.

3070956R91

GEAR-SET

PACKAGE, gear, front pump

1шт.
