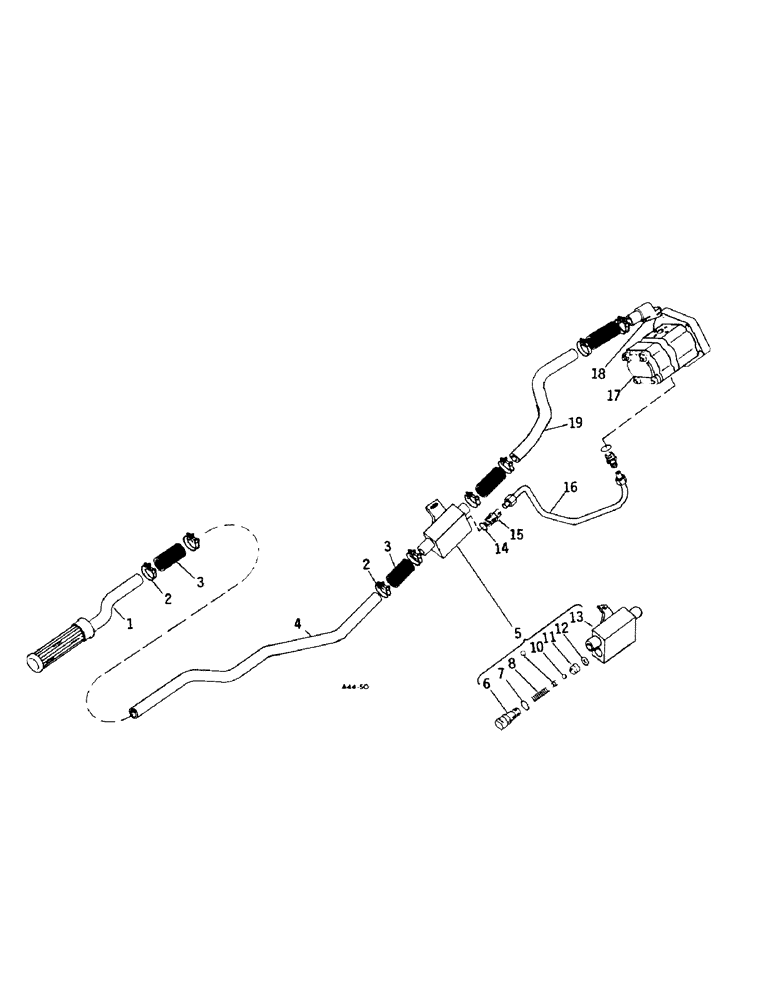

Запчасти Case IH 384 (10-16) - HYDRAULICS, RELIEF VALVE AND PIPES, POWER STEERING (07) - HYDRAULICS

1

3062073R93

FILTER

ASSY, suction

1шт.

2

3065216R91

CLIP

hose

8шт.

3

3106782R1

HOSE,1.00", SAE R30R2

Connectin, Suction, Filter. Part No. Covers 1 Ft. of Bulk Material 1.00", SAE R30R2

4шт.

4

3112829R1

PIPE

suction rear

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

(For pipe clamp) Hex, 1/4"-20 x 1 1/2", G5

1шт.

5

3112825R91

VALVE

ASSY, relief

1шт.

3046704R1

SCREW, ct snk int hex

2шт.

6

3063917R1

HOUSING

relief valve spring

1шт.

7

704378R1

O-RING,0.139" Thk x 0.85" ID

7/8 x 1-1/8 x 1/8

1шт.

8

3063916R1

SPRING

relief valve

1шт.

9

3063915R1

SEAT

RIDER, ball

1шт.

10

3072883R1

BALL,3/8" Dia

steel 3/8 dia

1шт.

11

3063914R1

SEAT

relief valve

1шт.

12

751560R1

COPPER WASHER

9/32 x 23/32 x 16ga

1шт.

13

3112826R1

BODY

BLOCK, relief valve

1шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

2шт.

16

3112823R1

PIPE

pump to valve pressure

1шт.

17

3063911R93

PUMP

ASSY, hydraulic, dual, see detail list

1шт.

18

3063923R91

MANIFOLD

suction

1шт.

19

3112828R1

PIPE

front suction

1шт.
