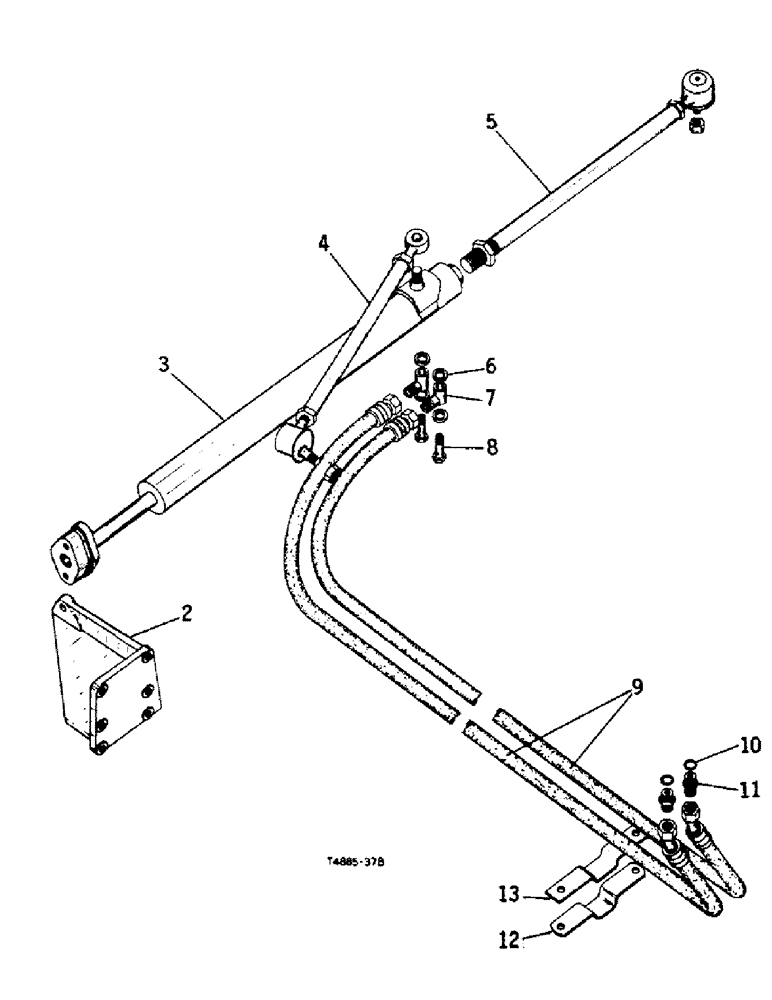

Запчасти Case IH 384 (10-13) - HYDRAULICS, POWER STEERING CYLINDER AND HOSES (07) - HYDRAULICS

1

(Not used)

1шт.

2

3120617R1

BRACKET

reaction

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4 pln type 5

3шт.

NLS

NO LONGER SERVICED

3/8 x 1.000 pln UHDN dowel

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

3043938R93

CYLINDER

ASSY, steering, for components, see list of parts under power steering cylinder

1шт.

454962

BOLT,Hex, 7/16" - 20 x 2 3/4", Gr 8

7/16-NF 2-3/4 pln type 8

2шт.

425-117

NUT,7/16"-20, G5

7/16 pln lock

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

3105265R91

LINK

w/two fittings 110143R91, drag, for list of components, see list of parts under drage link

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

.656 x 1.312 x .074 pln

1шт.

5

3070916R91

LINK

ASSY, connecting, for list of components, see list of parts under connecting link

1шт.

6

3045118R1

SEAL

WASHER

4шт.

7

3064499R1

BOLT,Mild Steel

FITTING, banjo

1шт.

The new banjo fitting is a 1" square.It will needed to be machined down to make it fit.

1шт.

8

3064500R1

BOLT

banjo

2шт.

9

3112830R1

HOSE

, Serial Range: valve-booster

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, class 6

2шт.

11

3063920R1

ADAPTER

2шт.

12

3043979R2

BRACKET

hose

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

3043980R2

INSERT

rubber

2шт.
