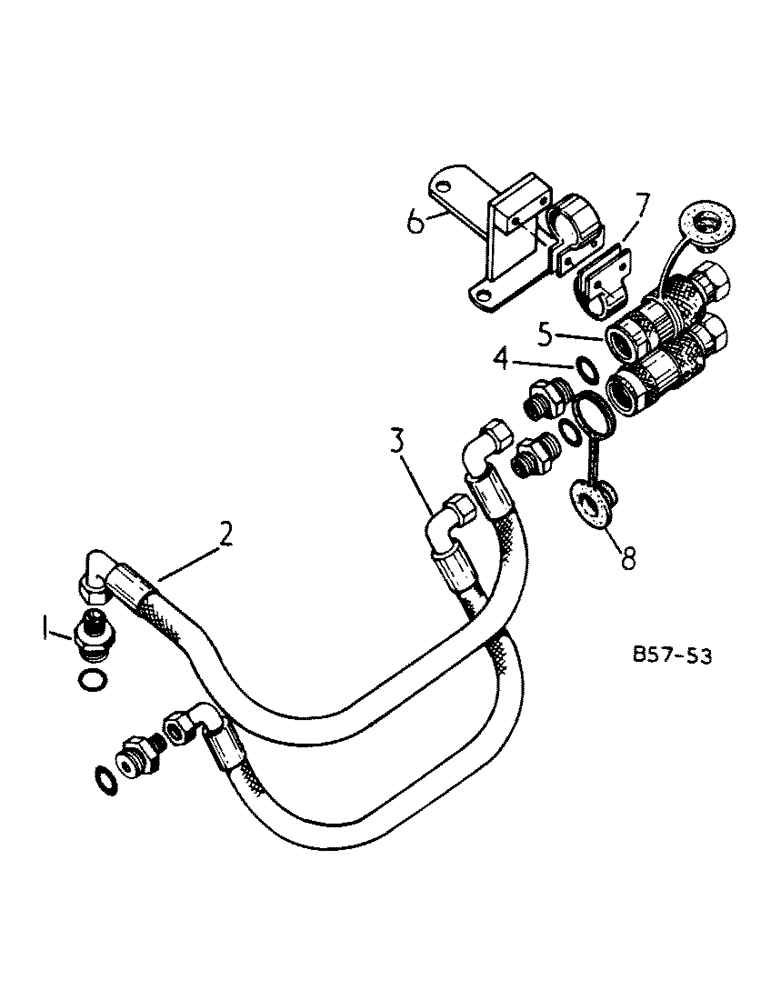

Запчасти Case IH 384 (10-12) - HYDRAULICS, SELF SEALING COUPLING, DOUBLE BREAKAWAY, USED WITH SINGLE ACTING VALVES (07) - HYDRAULICS

3125079R91

ATTACHMENT, breakaway, self sealing coupling

1шт.

1

3060799R2

ADAPTER

ADAPTOR, hose

4шт.

2

3069765R91

HOSE

flexible

1шт.

3

3062508R91

HOSE

flexible

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

5

SB5046

COUPLING, breakaway, female (replaces 395150R91)

2шт.

6

3065078R12

SUPPORT

PLATE ASSY, coupling support

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

2шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3114106R1

CLAMP

coupling

2шт.

8

373220R1

PLUG

SEAL, dust, optional with

2шт.

8

401757R11

PLUG

SEAL, dust

2шт.
