(10-11) - HYDRAULICS, SELF SEALING COUPLING, SINGLE BREAKAWAY, USE WITH SINGLE ACTING VALVE

Запчасти Case IH 384 (10-11) - HYDRAULICS, SELF SEALING COUPLING, SINGLE BREAKAWAY, USE WITH SINGLE ACTING VALVE (07) - HYDRAULICS

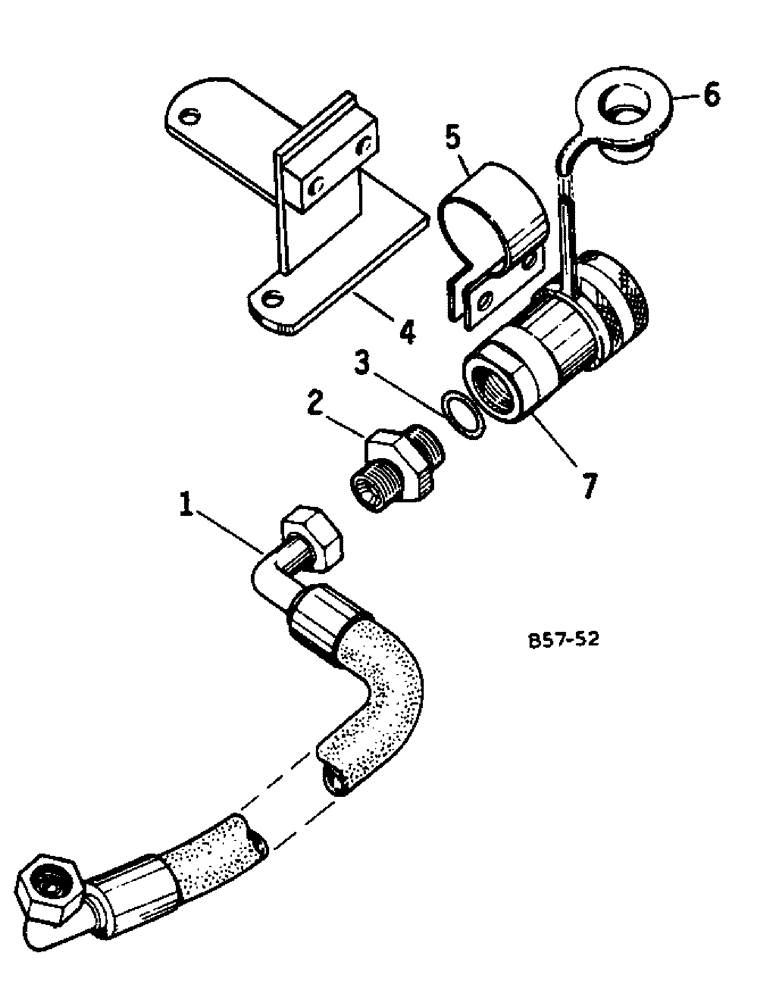

Схема запчастей Case IH 384 - (10-11) - HYDRAULICS, SELF SEALING COUPLING, SINGLE BREAKAWAY, USE WITH SINGLE ACTING VALVE (07) - HYDRAULICS
4
6
5
7
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3125078R91

ATTACHMENT, self sealing coupling

1шт.

1

3063993R91

HOSE

flexible

1шт.

2

3060799R2

ADAPTER

ADATOR, hose

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

2шт.

4

3065078R12

SUPPORT

PLATE ASSY, coupling support

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

2шт.

NLS

NO LONGER SERVICED

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3114106R1

CLAMP

coupling

1шт.

6

373220R1

PLUG

SEAL, dust, optional with

1шт.

6

401757R11

PLUG

SEAL, dust

1шт.

7

395150R91

COUPLING, QUICK, FEM

COUPLING, breakaway, female

1шт.
