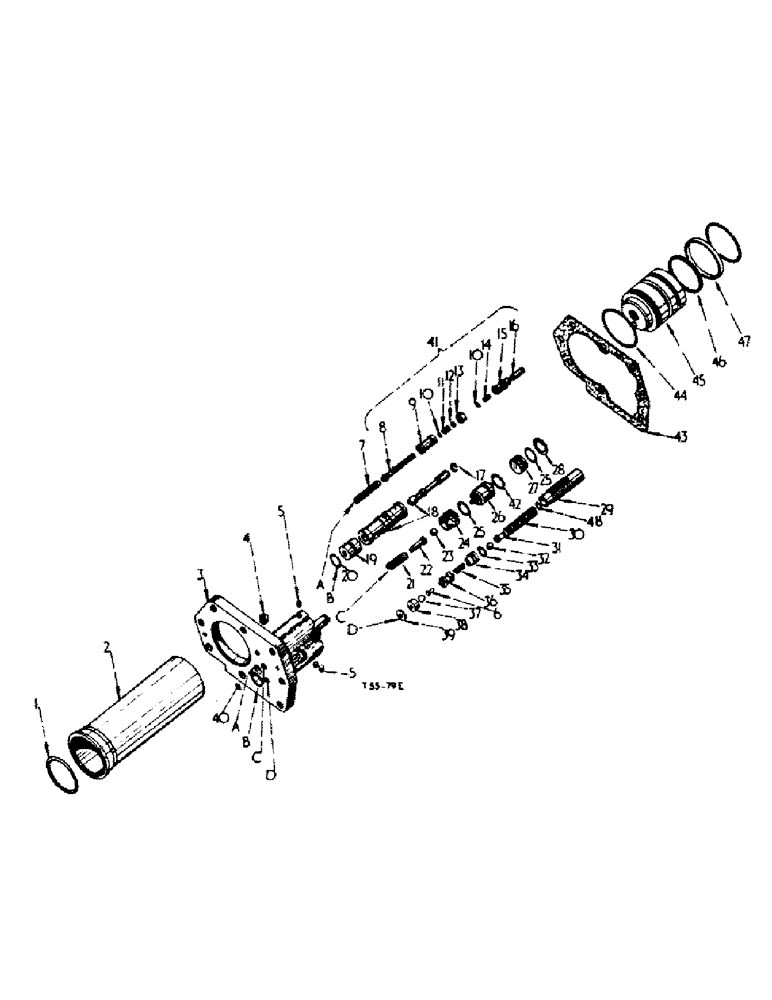

Запчасти Case IH 384 (10-10) - HYDRAULICS, CONTROL VALVE BODY (07) - HYDRAULICS

1

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3 x 3/16, class 6

1шт.

2

3044434R1

SLEEVE

CYLINDER, hydraulic lift

1шт.

3

3044426R1

BODY

valve

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 pln hex/skt auto pipe

1шт.

5

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

3шт.

6

3063495R1

SEAT

PIN, ball

1шт.

7

41608D

SPRING

spool

1шт.

8

SPOOL, lowering, order spool 3049142R95

1шт.

9

SLEEVE, lowering, order spool 3049142R95

1шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16

2шт.

11

GLAND, lowering spool, order spool 3049142R95

1шт.

12

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

5/16 x 7/16 x 1/16, class 6

1шт.

13

PLUG, lowering sleeve, order spool 3049142R95

1шт.

14

3045610R1

SPRING

plunger

1шт.

15

SLEEVE, lowering spool, order spool 3049088R91

1шт.

16

PLUNGER, lowering spool, order spool 3049088R91

1шт.

17

3040910R1

RETAINER

RING, internal 1/2 bore retaining

1шт.

18

3049088R91

SPOOL

AND SLEEVE W/RING 3040910R1 ASSY, matched set

1шт.

19

3040809R1

PLUG

main sleeve

1шт.

20

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

13/16 x 1-1/16 x 1/8 valve sleeve

1шт.

21

352026R2

SPRING

flow control valve ball

1шт.

22

350084R2

SEAT

PIN, flow control valve ball

1шт.

23

3072912R1

BALL

flow control valve

1шт.

24

751562R1

SEAT

flow control valve

1шт.

25

704378R1

O-RING,0.139" Thk x 0.85" ID

2шт.

26

751563R91

PISTON

valve

1шт.

27

751566R1

PLUG

vavle piston

1шт.

28

751567R1

RETAINER

RING, internal 1-3/16 bore retaining

1шт.

29

3108947R2

HOUSING

relief valve spring

1шт.

30

751557R1

SPRING

relief valve

1шт.

31

3108946R3

SEAT

BALL, relief valve rider

1шт.

32

3072883R1

BALL,3/8" Dia

relief valve

1шт.

33

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 valve seat

1шт.

34

751554R1

SEAT

relief valve

1шт.

35

3074227R2

SPRING

non-return valve

1шт.

36

751555R2

SLEEVE

non-return valve

1шт.

37

3072883R1

BALL,3/8" Dia

non-return valve

1шт.

38

751559R2

SEAT

non-return valve

1шт.

39

751560R1

COPPER WASHER

copper, 9/32 x 23/32 x 16ga

1шт.

40

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, class 6, flow control valve bore

1шт.

41

3049142R95

SPOOL

ASSY, lowering

1шт.

42

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

valve piston

1шт.

43

3044437R2

GASKET

valve body

1шт.

44

387374R1

RING,70mm ID x 76.2mm OD x 6.43mm Thk

wear, serial no. 1398 and above

2шт.

45

3044376R93

PISTON

ASSY, on orders for 3044376R92 order 3044376R93 w/ring 25205R1 seal 545813R2 and 2 ring 387374R1

1шт.

3072882R1

BALL,3/32" Dia

chrome steel 3/32 dia

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

707745R1

PLUG

relief valve

1шт.

45

3044377R4

PISTON

serial no. 1397 and below order 3123766R1, w/o-ring 25205R1, seal 545813R2 and 2 ring 387374R1

1шт.

45

3123766R1

PISTON

serial no. 1398 and above

1шт.

707746R2

SEAT

BALL, rider

1шт.

3066410R1

SPRING

valve

1шт.

46

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

serial no. 1397 and below

1шт.

46

25205R1

O-RING,Rect, 2.5" ID x 2.875" OD, Cl 5

RING, seal, serial no. 1398 and above

1шт.

47

545813R2

RING

SEAL, piston, serial no. 1397 and below

1шт.

47

3109731R1

BACK-UP RING,67.03mm ID x 76.17mm OD x 1.802mm Thk

back-up, serial no. 1398 and above

1шт.

48

3110027R1

SHIM

steel, (or as required)

2шт.

3063656R93

VALVE

PACKAGE, non-return valve and relief valve, consist of

1шт.

3072883R1

BALL,3/8" Dia

2шт.

3108947R2

HOUSING

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

3063495R1

SEAT

RIDER

1шт.

3108946R3

SEAT

RIDER

1шт.

751554R1

SEAT

1шт.

751559R2

SEAT

1шт.

751557R1

SPRING

1шт.

3074227R1

SPRING

1шт.

751555R2

SLEEVE

1шт.

751560R1

COPPER WASHER

1шт.

311027R1

SHIM

5шт.

3063659R93

SPOOL

PACKAGE, lowering spool service, consist of

1шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

3063657R93

SPOOL

1шт.

41058DA

SPRING

1шт.

3067990R91

KIT

PACKAGE, control valve o-ring service, consists of

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

1шт.

704753R1

GASKET,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

O-RING

2шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

4шт.

704378R1

O-RING,0.139" Thk x 0.85" ID

2шт.

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

2шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

2шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

3037284R1

O-RING

1шт.

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

O-RING

1шт.
