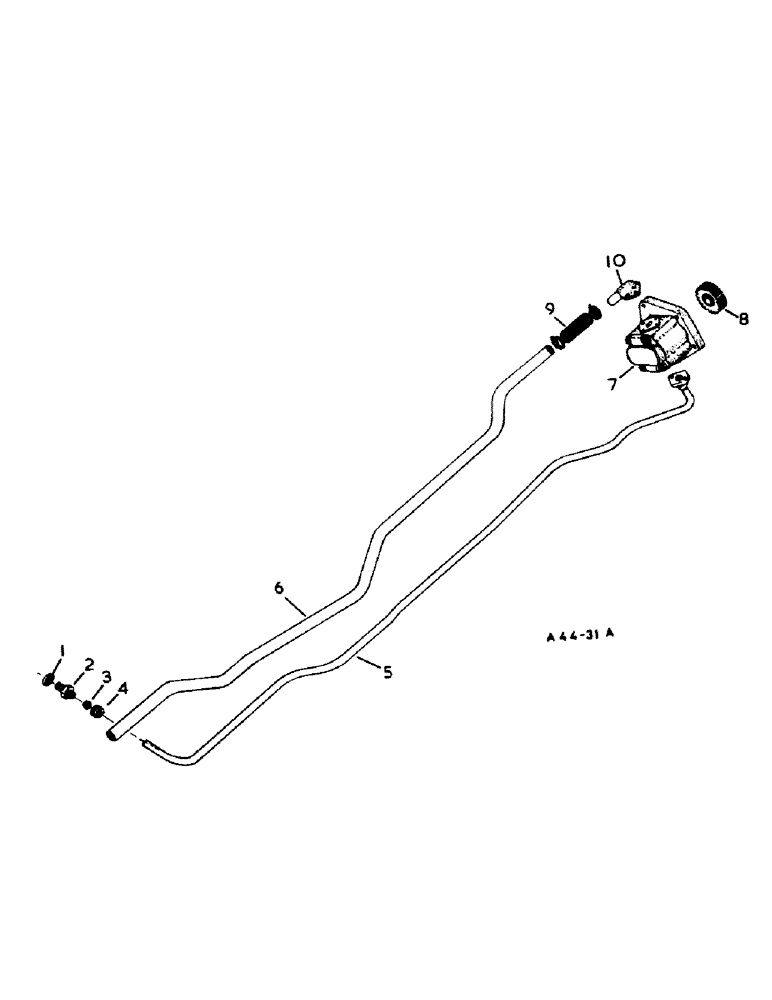

Запчасти Case IH 384 (10-07) - HYDRAULICS, PUMP SUCTION AND PRESSURE PIPES (07) - HYDRAULICS

1

704337R1

SEALING WASHER

WASHER, 1/2 BSP sealing

1шт.

2

704336R1

COUPLING, BREAK AWAY

COUPLING, male parallel, 1/2 x 1/2 BSP

1шт.

3

705519R1

RING

sealing

1шт.

4

705520R1

NUT,0.69" Length

1шт.

5

3112657R3

PIPE

pressure

1шт.

6

3112661R1

PIPE

suction

1шт.

706405R1

CLAMP

hydraulic pipe

2шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

PUMP ASSY, hydraulic, for components, see list of parts under details of hydraulic pump

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

8

704331R1

GEAR

hydraulic pump

1шт.

9

704741R1

HOSE,0.81" ID x 2.50"

1шт.

3066758R1

HOSE CLAMP

CLAMP, hose

2шт.

10

3112659R1

MANIFOLD

suction

1шт.
