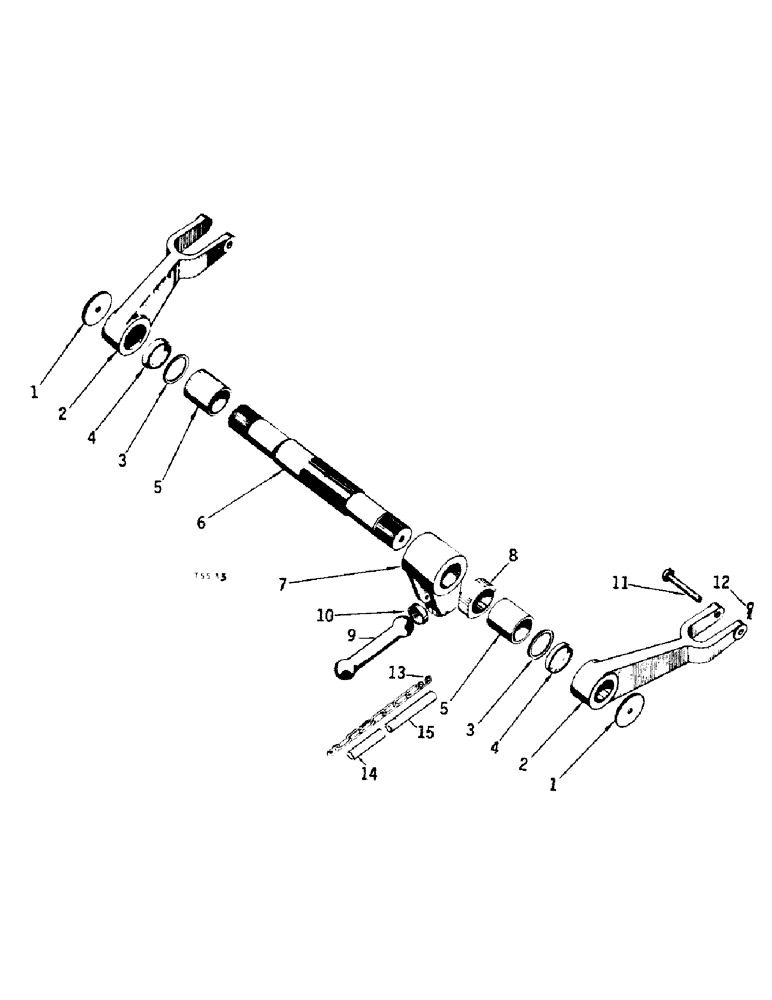

Запчасти Case IH 384 (10-06) - HYDRAULICS, DRAFT CONTROL ROCKSHAFT (07) - HYDRAULICS

1

3123767R1

WASHER

rockshaft

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

3044375R1

ARM

lift

2шт.

3

3044372R1

WASHER

rockshaft

2шт.

4

3071148R91

OIL SEAL,55.12mm ID x 73.28mm OD x 12.7mm Thk

rockshaft oil

2шт.

5

3044371R1

BUSHING

rockshaft

2шт.

6

3044370R1

SHAFT

ROCKSHAFT

1шт.

7

3044373R1

ARM

rocker

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

3/8-NF x 1 pln type 5

1шт.

8

3048403R1

CAM

rockshaft

1шт.

9

708924R1

ROD

connecting

1шт.

M79594

PIN,5/16" x 3 1/4"

5/16 x 3-1/4 std hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

10

3046977R1

BUSHING

connection rod

1шт.

11

3044309R1

PIN

5/8 dia x 3-3/8 std hd

2шт.

12

720631R1

LINCH PIN

PIN, cotter, optional with

2шт.

12

520175R1

CLIP

PIN, cotter

2шт.

13

3070768R92

CHAIN

safety

1шт.

14

395829R1

PIPE

HOSE, safety chain, short

1шт.

15

395830R2

HOSE,0.50" ID x 5.00"

Safety Chain, Long 0.50" ID x 5.00"

1шт.
