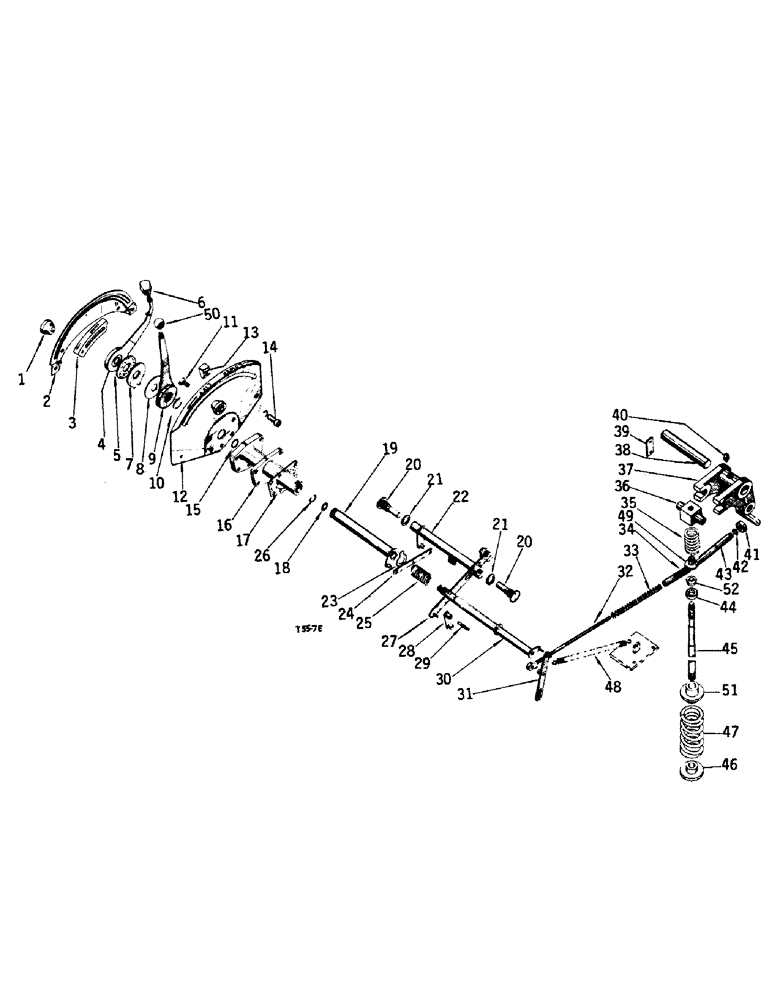

Запчасти Case IH 384 (10-04) - HYDRAULICS, DRAFT CONTROL LINKAGE (07) - HYDRAULICS

1

3044389R1

NUT

control lever stop

2шт.

2

3044387R2

STRIP

quadrant

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

3045639R11

SLIDE

ASSY, draft

1шт.

4

3044393R92

LEVER

W/KNOB 3109405R1 ASSY, draft control

1шт.

5

3044397R1

WASHER

friction

1шт.

6

3109405R1

KNOB

control lever

1шт.

7

3044402R1

PLATE

friction

1шт.

8

3044887R1

DISC

friction outer

1шт.

9

3044398R91

LEVER

W/KNOB 3063270R1 ASSY, position control

1шт.

10

933523R1

SNAP RING,M22, Ext

RING, 21.78 mm ext ret

1шт.

11

3044388R1

STOP

control lever

1шт.

12

3044386R2

SECTOR

control lever

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

3123993R1

STOP

position control lever

1шт.

14

3072577R1

SCREW

3/8 x 5/8 soc. hd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

1шт.

15

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

16

3044391R3

BRACKET

quadrant

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

4шт.

19242R1

LOCK PIN,7/16" x 1 1/4", Slotted

Pin, 7/16" x 1 1/4", Slotted

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

17

3044392R2

GASKET

quadrant bracket

1шт.

18

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.

19

3044408R93

PISTON

SLEEVE ASSY, position control

1шт.

20

3044417R2

PIVOT,1.06" OD, 2" Length

cross tube

2шт.

21

709840R1

SEALING WASHER

WASHER, dowty

2шт.

22

3044413R92

TUBE,6.84, 1.2" Length

position control cross

1шт.

23

3044886R1

WASHER

tab

1шт.

24

3044412R1

LINK

connecting

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

95-11034

WASHER,1/4"

.344 x .388 x .051 pln

2шт.

25

3044407R1

SPRING

draft control crankshaft

1шт.

26

3048955R1

RETAINER

RING, 3/4 dia shaft retaining

1шт.

27

3044418R91

LINK

ASSY, position control

1шт.

28

3044423R91

ARM

ASSY, position control link radius

1шт.

29

751575R1

PIN

radius arm pivot

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 pln cot

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

30

3044403R92

SHAFT

CRANKSHAFT ASSY, draft control

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

131016

WASHER

.656 x 1.312 x .074

1шт.

31

3044383R91

LINK

ASSY, valve opening

1шт.

512166R1

PIN,1/4" x 7/8"

1/4 x .875 pln hd type 1

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

32

751515R1

LINK

draft

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

33

751517R1

SPRING

draft link

1шт.

34

751514R1

CLEVIS

draft link

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

512166R1

PIN,1/4" x 7/8"

1/4 x .875 pln hd type 1

1шт.

35

751506R2

SPRING

tip link

1шт.

36

751508R1

TRUNNION

top link

1шт.

37

751503R1

POWER ARM

CRANK, top link

1шт.

38

751504R1

SHAFT

top link crank

1шт.

39

3041366R1

PLATE

top link crankshaft lock

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

40

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

41

3070697R91

SEAL

oil

1шт.

42

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

1шт.

43

751512R1

SHAFT

PLUNGER, draft link

1шт.

44

3070698R91

SEAL

oil

1шт.

45

751509R3

PIN

SPINDLE, top link

1шт.

3073898R1

NUT

5/8 lock

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 pln slt type 5

1шт.

NLS

NO LONGER SERVICED

PIN, 3/16 x 1-3/8 pln cot

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

46

751507R1

SEAT

compression spring

1шт.

3049370R1

WASHER

21/32 x 1-3/8 x 16ga

1шт.

3049369R1

WASHER

21/32 x 1-3/8 x 11ga

1шт.

3070211R2

WASHER

21/32 x 1-1/2 x 21ga

1шт.

47

751505R1

SPRING

top link

1шт.

48

751516R1

SPRING

draft link return

1шт.

49

3040826R3

SPRING SEAT

SEAT, spring, small

1шт.

50

3063270R1

KNOB

control lever

1шт.

51

3064871R1

SEAT

spring

1шт.

52

3064872R1

RING

W/CLIP, scraper

1шт.
