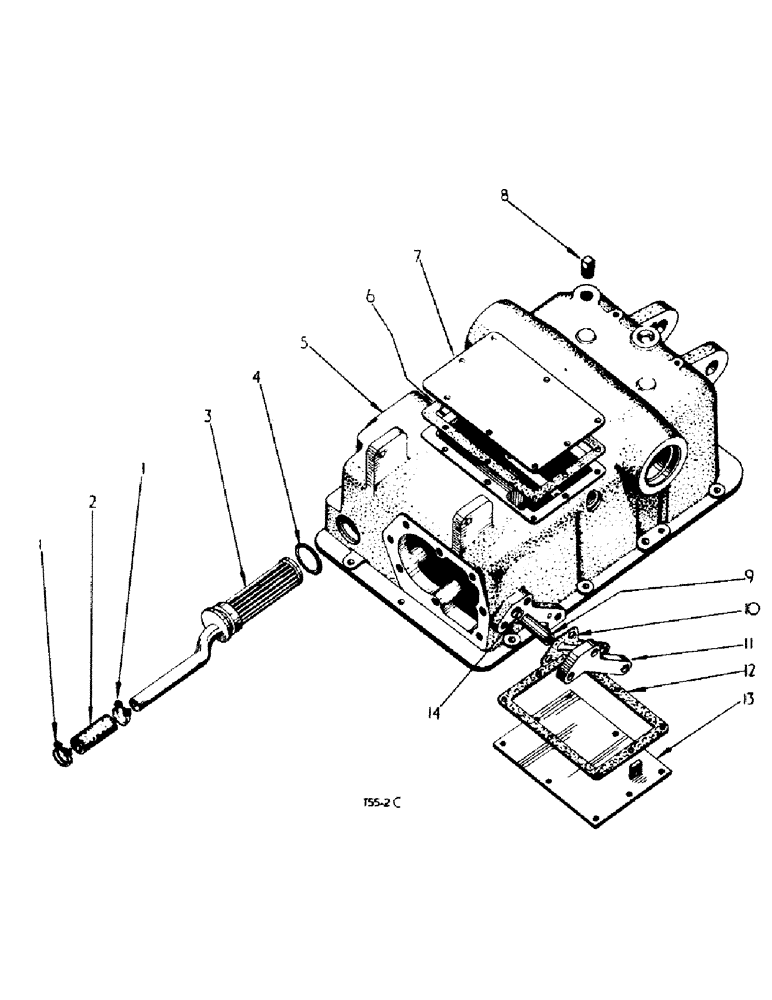

Запчасти Case IH 384 (10-03) - HYDRAULICS, DRAFT CONTROL HOUSING (07) - HYDRAULICS

1

3066758R1

HOSE CLAMP

CLAMP, hose

2шт.

2

704741R1

HOSE,0.81" ID x 2.50"

Suction Filter 0.81" ID x 2.50"

1шт.

3

3044368R93

FILTER

suction

1шт.

4

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

O-RING, suction filter

1шт.

5

3044365R5

HOUSING

hydraulic lift

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

8шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8 x 3-3/4 pln type 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

11шт.

172570

PLUG,Exp, 1 3/8"

1-3/8 expansion

1шт.

6

3044367R2

GASKET

tip cover plate

1шт.

7

3044366R1

PLATE

top cover

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG, 3/4-14 znp sq/hd auto pipe

2шт.

9

751540R1

CONNECTOR, ELEC

CONNECTOR, aux. valve cover plate

1шт.

10

3061055R2

GASKET

aux valve cover plate

1шт.

11

751541R1

PLATE

aux valve cover

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

751499R2

GASKET

hydraulic lift housing cover plate

1шт.

13

751497R11

PLATE

cover hydraulic lift housing

1шт.

179814

SPACER

5/16 x 5/8 pln type 5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

14

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

9/16 x 3/4 x 3/32

1шт.
