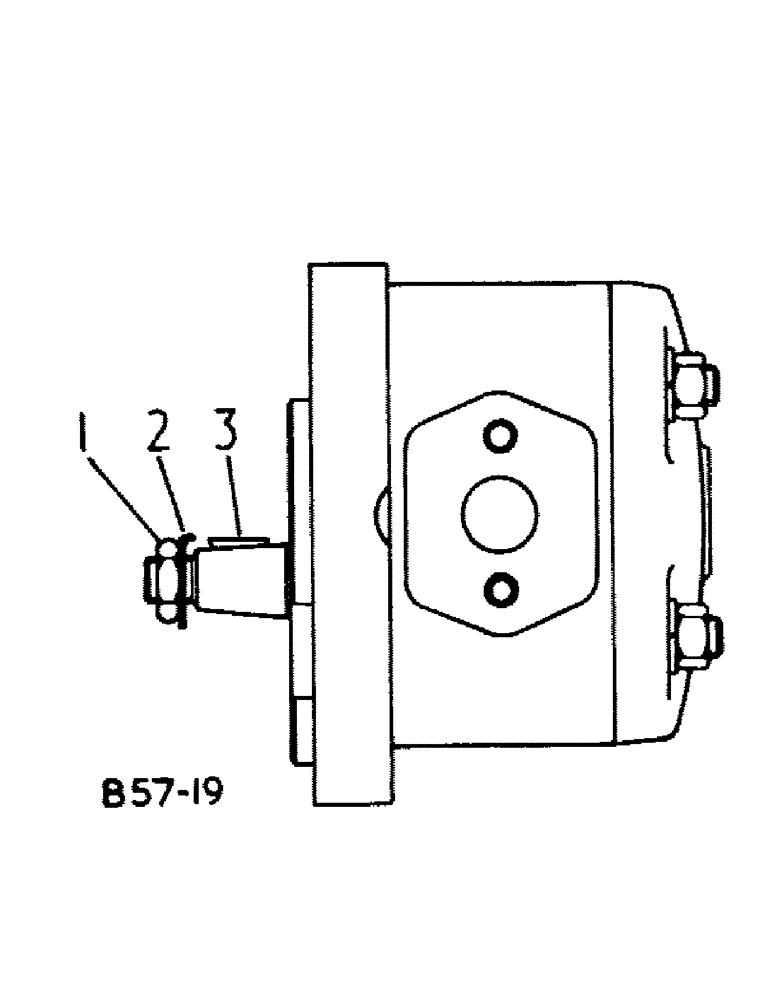

Запчасти Case IH 384 (10-02) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

3067220R91

PUMP

ASSY, hyd, dowty

1шт.

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

inlet port

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

outlet port

1шт.

3120490R92

PACKAGE

SEAL KIT, consists of (2) seal, body (NSS), (2) seal, body (NSS), (2) bush, lube seal (NSS), (2) ring, backing (NSS), (2) ring, backing (NSS), (1) seal, shaft (NSS)

1шт.

1

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

2

3120487R1

WASHER

WASHER, tab

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.
