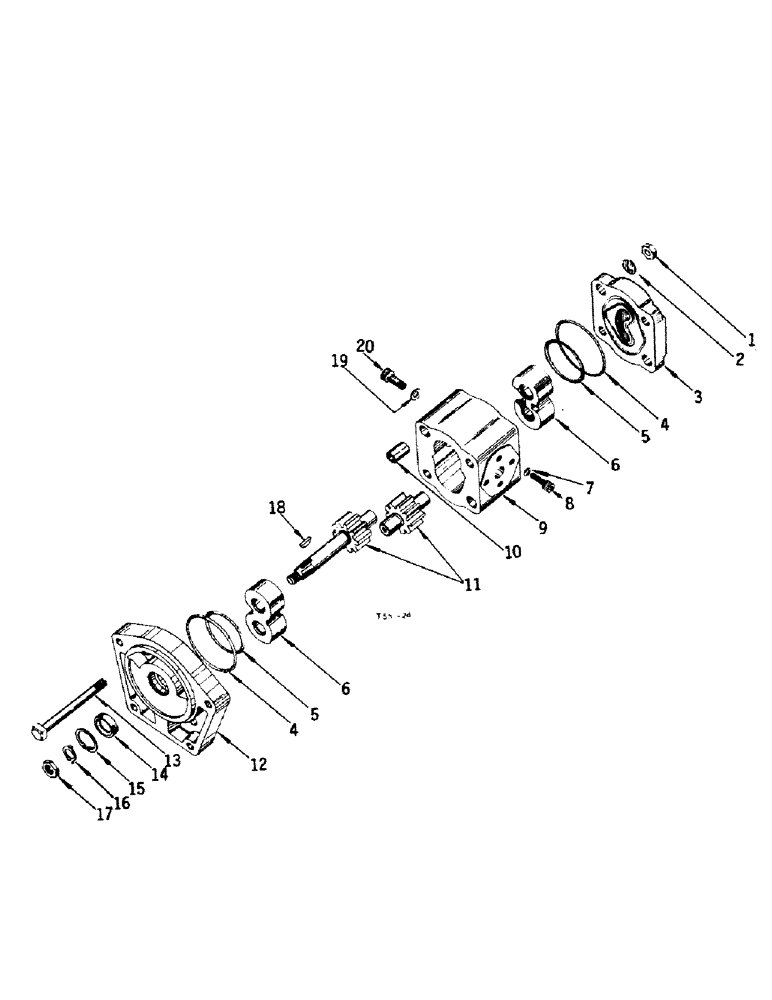

Запчасти Case IH 384 (10-01) - HYDRAULICS, HYDRAULIC PUMP (07) - HYDRAULICS

704330R95

PUMP

ASSY, hydraulic Plessey C-25-VR

1шт.

1

214441

NUT

3/8 pln type 8 hex

4шт.

2

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

3044628R1

COVER

1шт.

4

O-RING, flange sealing, order package 3004645R91

2шт.

5

O-RING, pressure relief, order package 3044645R91

2шт.

6

3066762R91

BEARING

2шт.

7

706053R1

SPRING WASHER

spring

2шт.

8

3044642R1

SCREW

1/4 x 3/4 Allen

2шт.

9

BODY, pump (NSS), o-ring, manifold, inlet, o-ring, manifold, outlet, order seal package 3111634R91

1шт.

10

3064277R1

PIN

hollow dowel

4шт.

11

3044627R91

GEAR

PACKAGE, gear spares

1шт.

12

708395R1

FLANGE

1шт.

13

3072021R1

BOLT

3/8 UNF x 3-5/8 sq hd

4шт.

14

SEAL, oil, order package 3044645R91

1шт.

15

706066R1

RETAINER

RING

1шт.

16

706069R1

LOCK WASHER

WASHER, lock

1шт.

17

3044638R1

NUT

lock

1шт.

18

706067R1

KEY

Woodruff

1шт.

19

706072R1

WASHER

spring

2шт.

20

706075R1

SCREW

5/16 x 3/4 Allen

2шт.

3044645R91

SEAL

PACKAGE, seal

1шт.

3111634R91

SEAL KIT

PACKAGE, seal

1шт.
