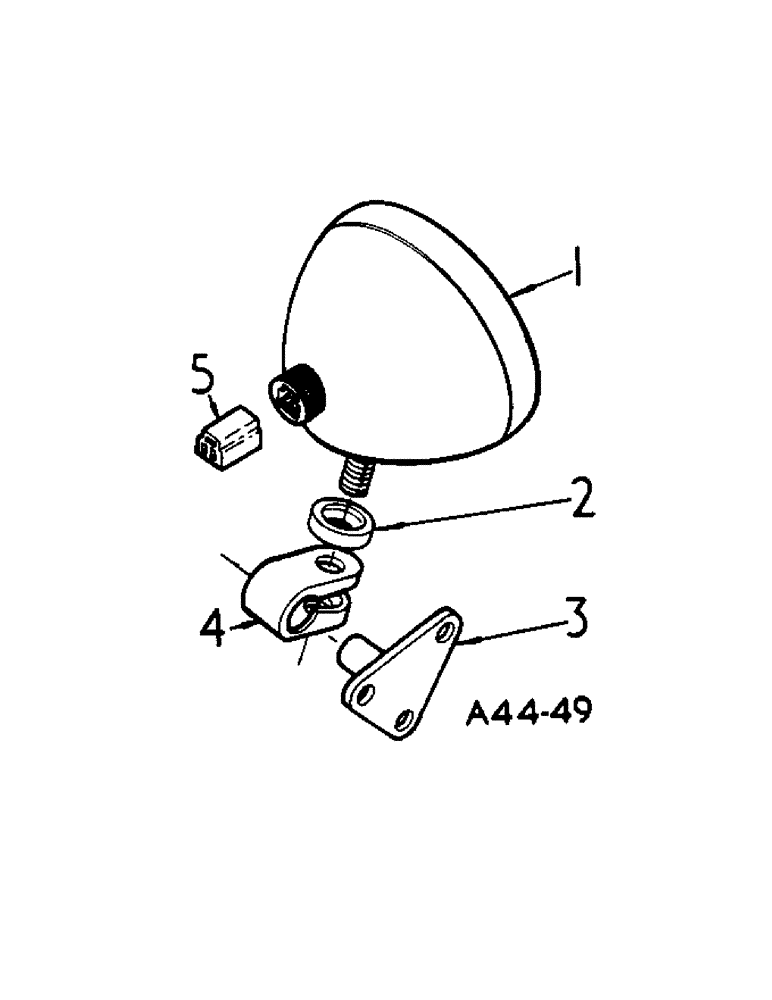

Запчасти Case IH 384 (08-10) - ELECTRICAL, SEALED BEAM COMBINATION (06) - ELECTRICAL

1

377102R92

LIGHT ASSY, sealed beam combination, consists of

1шт.

371461R92

LAMP

ASSY, sealed beam

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, bulb 15CP 12V

1шт.

1

387729R92

LIGHT ASSY.

LIGHT ASSY, sealed beam combination, consists

1шт.

371461R92

LAMP

ASSY, sealed beam

1шт.

455490

BULB,C-6, #1003, 12V, .94W

LAMP, bulb 15CP 12V

1шт.

676078R1

RETAINER

shock proof light, guide lamp div

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

2

365503R1

SPACER

combination tail and rear

1шт.

3

401471R1

POST

ASSY, combination tail and rear

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8 type 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

4

350920R1

CLAMP

combination tail and rear

1шт.

5

3112755R1

CONNECTOR, ELEC

CONNECTOR

1шт.

708115R1

PLATE ASSY.

CLIP, cable

1шт.

3123202R1

HARNESS

fender RH

1шт.

3123201R1

HARNESS

fender LH

1шт.

117959

GROMMET,5/16" ID x .719" x .062"

fender

1шт.
