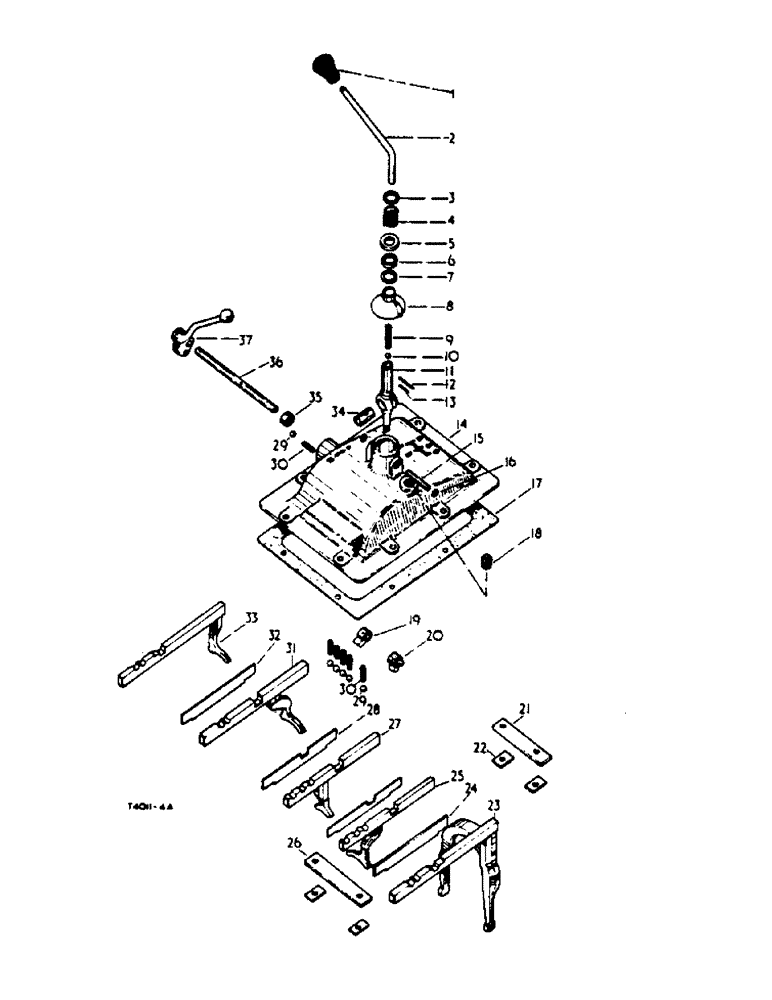

Запчасти Case IH 364 (4-19) - CHASSIS, GEAR SHIFTER MECHANISM AND TRANSMISSION, CASE COVER, FRONT (12) - CHASSIS

1

3109443R1

BALL

gear shifter lever

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER, gear shifter, hand, order 3106909R92 (NSS)

1шт.

454331R1

SNAP RING,#87, Ext

1шт.

3

710953R1

STOP

spring, gear shifter lever

1шт.

4

3106665R1

SPRING

gear shifter lever

1шт.

5

34880D

RETAINER

felt washer, gear shifter lever

1шт.

6

34879D

WASHER

felt, gear shifter lever

1шт.

7

Q113

WASHER

plain, 29/32" x 1-3/8" x 16 ga

1шт.

8

712626R1

SHIELD

gear shifter swivel housing

1шт.

9

3068944R1

SPRING

gear shift ball

1шт.

10

16014R1

BALL

7/16" dia.

1шт.

11

NSS

NOT SOLD SEPARAT

END, gear shifter lever, order 3106909R92 (NSS)

1шт.

12

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

13

17054R1

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

14

3044047R3

COVER

trans. case front

1шт.

NLS

NO LONGER SERVICED

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

15

NSS

NOT SOLD SEPARAT

SHAFT, swivel, gear shifter lever, small, order 310664R11

1шт.

16

172529

PLUG

expansion, gear shifter lever swivel, small

2шт.

17

703969R1

GASKET

trans. case cover, front

1шт.

18

444592R1

PLUG

pipe, 3/4", opt.

1шт.

18

20963R1

PLUG,Sq Hd, 1/4"-14 NPTF

pipe 3/4", opt.

1шт.

18

217-442

PLUG,3/4" - 14

pipe 3/4", opt.

1шт.

19

751090R3

CAM

high low range shifter

1шт.

188943

DOWEL

PIN, groove, type 5, 3/16" x 1-1/8"

1шт.

20

751851R4

CAM

low speed gear shifter

1шт.

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, type 5, 3/16" x 1-1/4"

1шт.

21

751085R1

BRACKET

gear shifter fork and guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

59473DA

LOCK

bolt, gear shifter rail guide

4шт.

23

3040867R33

FORK

low speed shifter, CPTE.

1шт.

24

704039R2

GUIDE

gear shifter, R.H.

1шт.

25

751101R23

FORK

1st and reverse gear shifter, CPTE.

1шт.

26

3044010R1

GUIDE

BRACKET, gear shifter fork and guide

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

751104R93

FORK

2nd and 3rd speed gear shifter, CPTE.

1шт.

28

704038R2

GUIDE

gear shifter rail, inner

2шт.

29

16013R1

BALL

steel, 13/16" dia. chrome grade 2

6шт.

30

3072000R1

SPRING

gear shifter poppet

6шт.

31

751100R13

FORK

4th speed gear shifter, CPTE.

1шт.

32

705926R2

GUIDE

gear shifter, rail L.H.

1шт.

33

751094R43

FORK

high speed shifter, CPTE.

1шт.

34

NSS

NOT SOLD SEPARAT

SHAFT, swivel, gear shifter lever, large, order 3106662R11

1шт.

35

751086R91

SEAL ASSY.

OIL SEAL, high low range shifter shaft, opt.

1шт.

35

751087R91

SEAL

OIL SEAL, high low range shifter shaft, opt.

1шт.

3069986R91

SEAL

OIL SEAL, high low range shifter shaft, opt.

1шт.

36

751088R2

SHAFT

shifter, high low range

1шт.

37

751089R2

HANDLE

shifter, high low range

1шт.

435-1820

GROOVED PIN,1/4" x 1 1/4", Type A

PIN - grooved, 1/4" x 1 1/4", Type A

1шт.

3106909R92

LEVER

assy., gear shifter, comprising: (1) end (NSS), (1) lever (NSS), (1) pin 17054R1

1шт.

3106662R11

SHAFT

PACKAGE, swivel shaft service, large

1шт.

3106664R11

SHAFT

PACKAGE, swivel shaft service, small

1шт.
