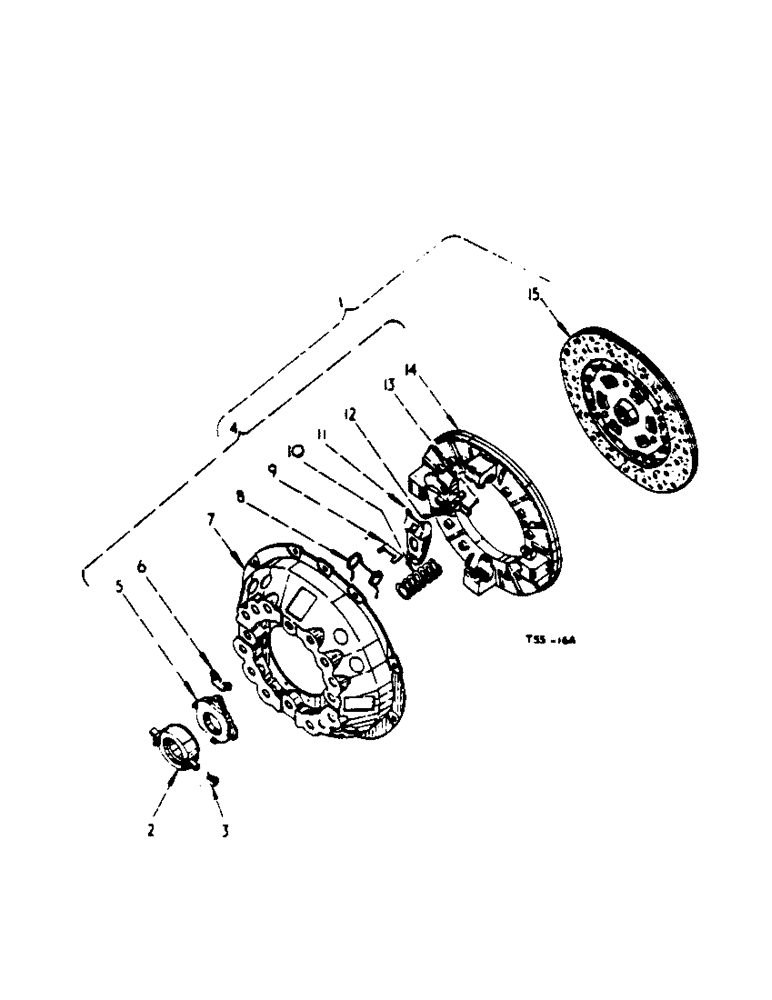

Запчасти Case IH 364 (4-18) - CHASSIS, CLUTCH 11 INCH (12) - CHASSIS

1

NSS

NOT SOLD SEPARAT

CLUTCH, 11" CPTE.

1шт.

3 finger clutch is on Fig. 6-29

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

2

705542R91

STOP

BEARING, and cup assy

1шт.

3

705543R1

RETAINER

spring

2шт.

4

3048528R91

COVER

clutch assy, Includes: Ref. 5 - 14

1шт.

5

3048532R1

PLATE

release lever

1шт.

6

705530R1

SPRING

release lever plate retainer

4шт.

7

3048534R1

COVER

1шт.

8

3048531R1

SPRING

anti-rattle

4шт.

9

700915R1

STRUT

4шт.

10

700910R1

SPRING

thrust

12шт.

11

705536R1

LEVER

release

4шт.

12

3069200R91

NUT

EYE, bolt and nut assy

4шт.

13

700913R1

PIN

release lever

4шт.

14

3048535R1

PLATE

pressure

1шт.

15

3048529R91

CLUTCH & DISC ASSY

PLATE, driven, assy., 1-1/8" spline

1шт.

3048530R91

FACING

PACKAGE, driven plate facing, service

1шт.
