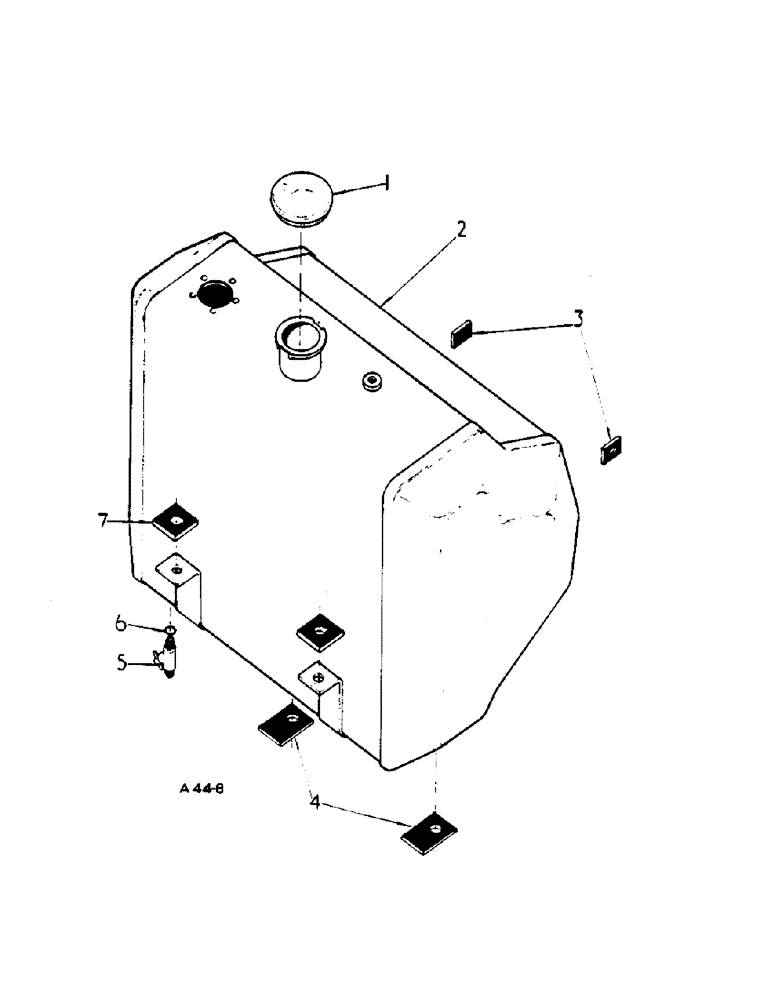

Запчасти Case IH 364 (4-13) - CHASSIS, FUEL TANK (12) - CHASSIS

1

707822R93

FILLER CAP

CAP, fuel tank filler

1шт.

3112648R1

BLOCK

SEAL, fuel tank filler neck

1шт.

2

3112004R1

FUEL TANK

TANK, CPTE., fuel

1шт.

3

3112128R1

PAD

fuel tank to rear support mtg.

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

4

3112129R1

PAD

fuel tank support

2шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

hex. hd. 7/18" x 3/4"

2шт.

5

3064222R91

VALVE

TAP, CPTE., fuel

1шт.

6

3045115R1

RING

"O" RING, 11/32 x 15/32

1шт.

7

3112130R1

PAD

fuel tank to battery tray mtg.

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

128145

WASHER

7/16" x 1-3/8" x .064" plain

2шт.

128145

WASHER

7/16" x 1-3/8" x .064", petrol and diesel Canada

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

LH side, Petrol and Diesel Canada Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

RH side, petrol and diesel Canada Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16" x 1/2", petrol

1шт.

3070933R1

BOLT,5/16" - 18 x 0.88"

banjo, spill pipe fixing to fuel tank, diesel

1шт.

751876R1

SEALING WASHER

WASHER, sealing, diesel

2шт.
