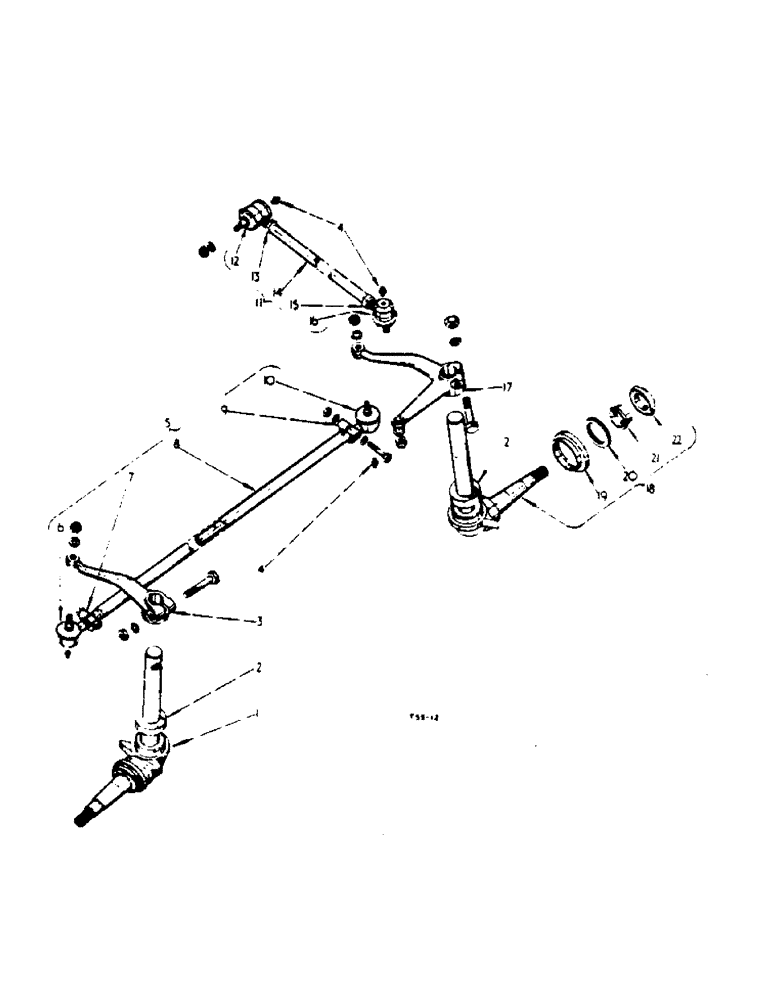

Запчасти Case IH 364 (4-10) - CHASSIS, STEERING KNUCKLES (12) - CHASSIS

1

3043865R92

STEERING KNUCKLE

KNUCKLE, CPTE., R.H. steering, comprising (1) oil seal 3042600R91 (1) shield 48541D, (1) spacer 50270D, (1) washer 50259D

1шт.

2

3070055R91

SPLINED BUSHING

BEARING, steering knuckle thrust

2шт.

3

3040273R1

STEERING LEVER

ARM, R.H. steering knuckle

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex. hd. 5/8" x 2-3/4"

1шт.

102639

NUT,5/8"-11, G5

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

4шт.

5

3072603R91

ROD

CPTE., tie w/two lubricator 110146R91, Lockheed, comprising (1) clip 3041061R91, (1) clip 3041062R91, (1) end 3040920R92, (1) end 3040919R92, (1) rod 3066606R1

1шт.

5

3072611R91

TIE-ROD

ROD, tie w/two lubricator 110146R91, Clevedon, comprising (1) clamp 3071098R91, (1) end 3071097R91, (1) end 3071096R91, (1) tube 3072591R91

1шт.

6

3040920R92

BALL JOINT

END, tie rod, threaded end, Lockheed, comprising

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3042689R1

WASHER

for boot

1шт.

6

3071097R91

END

tie rod, threaded end, Clevedon, comprising

1шт.

3071112R1

BOOT

1шт.

3071062R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3071116R1

ROD, tie

1шт.

3071113R1

WASHER, boot

1шт.

7

3041061R91

CLIP

assy., for screwed end, Lockheed, comprising

1шт.

3042284R1

BOOT, for socket

1шт.

3042282R1

NO LONGER SERVICED

CLIP, for socket

1шт.

3070085R1

NUT

for clip

1шт.

3042286R1

WASHER, spring

1шт.

3042287R1

WASHER

2шт.

8

3066606R1

TIE-ROD

ROD, tie, Lockheed

1шт.

3072591R91

ROD

TUBE, w/clamp tie rod, Clevedon

1шт.

3071107R1

BOLT, clamp

1шт.

3071101R1

NUT, clamp

1шт.

3071100R1

WASHER, spring

1шт.

9

3041062R91

CLIP

assy., for extension rod, comprising

1шт.

3042284R1

BOLT, for socket

1шт.

3042283R1

NO LONGER SERVICED

CLIP, for socket

1шт.

3070085R1

NUT

for clip

1шт.

3042286R1

WASHER, spring

1шт.

3042287R1

WASHER

2шт.

9

3071098R1

CLAMP, assy., for extension end, Clevedon, comprising

1шт.

3071114R1

CLAMP

1шт.

3071107R1

BOLT, clamp

1шт.

3071101R1

NUT, clamp

1шт.

3071100R1

WASHER, spring

1шт.

10

3071096R1

END, tie rod w/extension, Clevedon, comprising

1шт.

3071112R1

BOOT

1шт.

3071062R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3071108R1

ROD, tie

1шт.

3071113R1

WASHER, boot

1шт.

10

3040919R92

BALL JOINT

END, tie rod w/extension, Lockheed, comprising

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3041689R1

WASHER, for boot

1шт.

11

3114826R91

LINK

CPTE., steering drag w/lubricators 110140R91 and 16964R91, Clevedon, consists of: (1) end 3071055R91, (1) end 3071056R91, (1) nut 3071057R91, (1) nut 3071058R91, (1) tube 3071152R1

1шт.

11

3114827R91

LINK

CPTE., steering drag w/lubricators 110146R91 and 16694R91, Lockheed, consists of: (1) end 3040921R92, (1) end 3040922R92, (1) link 3070788R1, (1) nut 705247R1, (1) nut 705248R1

1шт.

11

3040922R92

BALL JOINT

END, drag link, R.H. thread, comprising:

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3041065R1

WASHER

boot

1шт.

12

3071056R91

END

drag link R.H., comprising:

1шт.

3071061R1

BOOT

1шт.

3071062R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3071118R1

ROD

R.H.

1шт.

3071063R1

WASHER

boot

1шт.

13

705248R1

NUT

lock, R.H. thread, Lockheed

1шт.

13

3071058R1

NUT, lock, R.H. thread, Clevedon

1шт.

14

3070788R1

LINK

drag, Lockheed

1шт.

14

3071152R1

TUBE

Clevedon

1шт.

15

705247R1

NUT

lock, L.H. thread, Lockheed

1шт.

15

3071057R1

NUT, lock, L.H. thread, Clevedon

1шт.

16

3040921R91

THREADED TIE-ROD

END, drag link, L.H. thread, comprising:

1шт.

3041067R1

BOOT

rubber

1шт.

3041066R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3041065R1

WASHER

boot

1шт.

16

3071055R91

END

drag, link L.H., comprising:

1шт.

3071061R1

BOOT

1шт.

3071062R1

CLIP

boot

1шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

3071117R1

END

ROD, L.H.

1шт.

3071063R1

WASHER

boot

1шт.

17

3040272R1

STEERING LEVER

ARM, L.H. steering knuckle

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8" x 2-3/4" hex. hd

1шт.

102639

NUT,5/8"-11, G5

1шт.

18

3043864R92

STEERING KNUCKLE

KNUCKLE, CPTE., steering L.H., comprising: (1) oil seal 3042600R91, (1) shield 48541D, (1) spacer 50270D, (1) washer 50259D

1шт.

19

48541D

SHIELD

front wheel dust

2шт.

20

50259D

WASHER

WASHER, front wheel felt

2шт.

21

50270D

SPACER

front wheel bearing

2шт.

22

3042600R91

RH DOOR LOCK

OIL SEAL, front wheel, opt.

2шт.

22

48539DA

PACKING RING

OIL SEAL, front wheel, opt.

2шт.

22

704083R92

OIL SEAL

front wheel )

2шт.

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

Steering knuckle arm #21, 1/4" x 1 1/4", HT

2шт.
