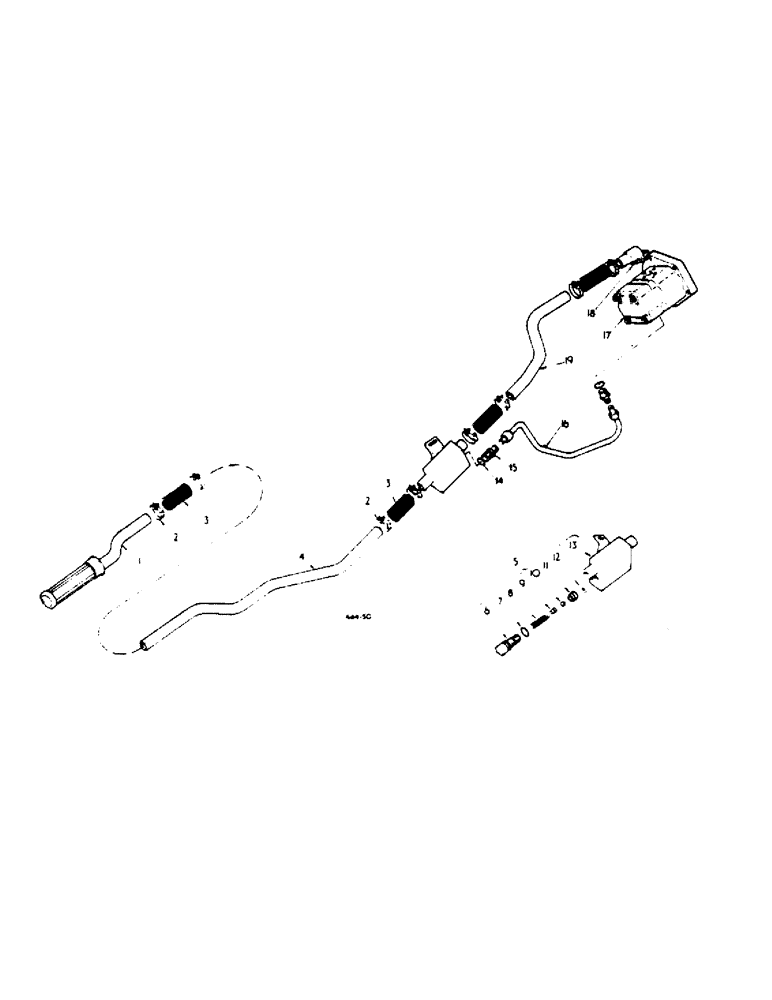

Запчасти Case IH 364 (6-18) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, FLOW CONTROL VALVE AND PIPES Attachments

1

3062073R93

FILTER

CPTE., suction

1шт.

2

3065216R91

CLIP

hose

8шт.

3

3106782R1

HOSE,1.00", SAE R30R2

Connecting, Suction, Filter (NSS) 1.00", SAE R30R2

4шт.

4

3112829R1

PIPE

suction rear

1шт.

5

3112825R91

VALVE

BLOCK, CPTE., relief valve assy., Includes: Ref. 6 - 13

1шт.

6

3063917R1

HOUSING

relief valve spring

1шт.

7

704378R1

O-RING,0.139" Thk x 0.85" ID

"O" RING, 7/8" x 1-1/8" x 1/8"

1шт.

8

3063916R1

SPRING

relief valve

1шт.

9

3063915R1

SEAT

RIDER, ball

1шт.

10

3072883R1

BALL,3/8" Dia

steel, . 3/8" Dia

1шт.

11

3063914R1

SEAT

relief valve, Includes: Ref. 12 and 13

1шт.

12

751560R1

COPPER WASHER

9/32" x 23/32" 16 ga.

1шт.

13

3112826R1

BODY

BLOCK, CPTE., relief valve

1шт.

3046704R1

SCREW, ct. snk. int. hex.

2шт.

14

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING

2шт.

15

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTOR

2шт.

16

3112823R1

PIPE

HOSE, pressure, Serial Range: pump-valve

1шт.

17

3063911R93

PUMP

CPTE., hydraulic, dual, see detail list

1шт.

18

3063923R91

MANIFOLD

CPTE., suction

1шт.

19

3112828R1

PIPE

front, suction

1шт.
