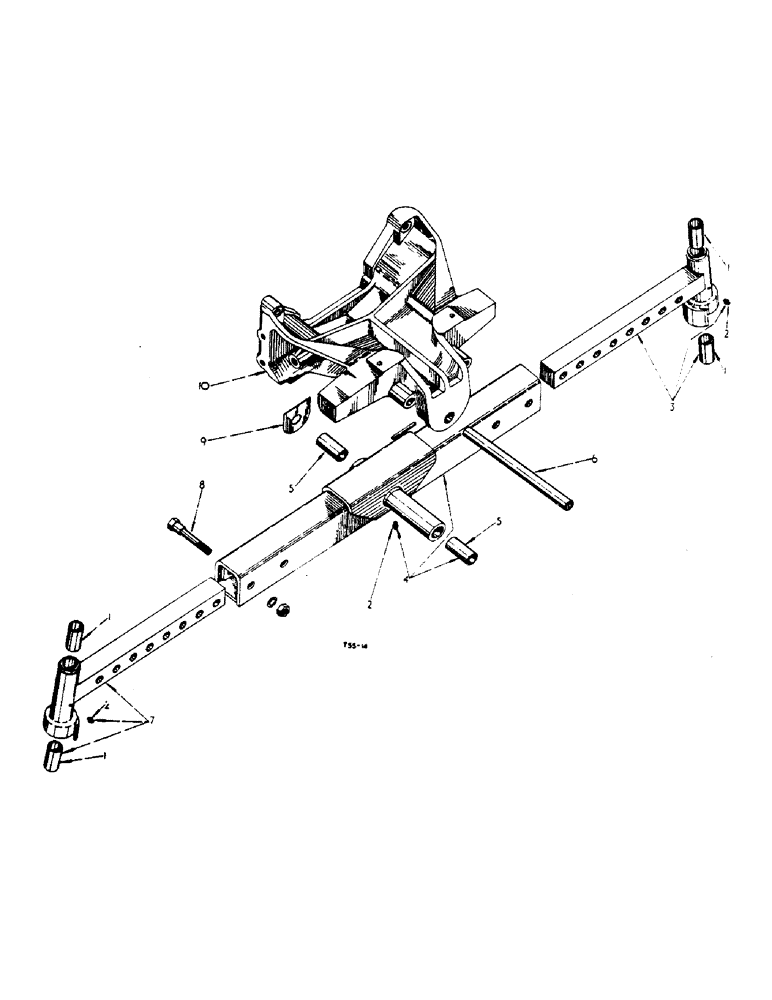

Запчасти Case IH 364 (4-09) - CHASSIS, FRONT AXLE (12) - CHASSIS

1

40090D

BUSHING

BUSH, steering knuckle pivot

4шт.

2

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , NPT, Opt. 1/8"-27 x .66 lg

3шт.

2

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

3шт.

3

3043858R91

EXTENSION

w/two bushes 40090D and lubricator 109461 CPTE, front axle LH

1шт.

4

3043850R91

AXLE

w/two bushes 3043856R1 and lubricator 109461 CPTE front

1шт.

5

3043856R1

BUSHING

BUSH, pivot pin, front axle

2шт.

6

3043857R1

PIN

front axle pivot

1шт.

186288

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

hex. hd. 3/8" x 4-1/2"

1шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

3043859R91

EXTENSION

w/two bushes 40090D and lubricator 109461 CPTE. front axle RH

1шт.

8

3072766R11

BOLT

CPTE., front axle extension

4шт.

3043863R2

BOLT

front axle extension

4шт.

218197

NUT,3/4"-16, G5

hex. 3/4" UNF

4шт.

9

706151R2

SHIM

front axle pin sleeve, .036"

1шт.

10

3049145R3

SUPPORT, front axle

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex. hd. 5/5" x 2-3/4"

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex. hd. 5/8" x 3", Course Threads

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

hex. hd. 5/8" x 3-3/4", Course Threads

1шт.

3044674R1

SHIM

front axle pivot sleeve (.028)

1шт.

706152R1

SHIM

front axle pivot pin sleeve (33swg)

1шт.
