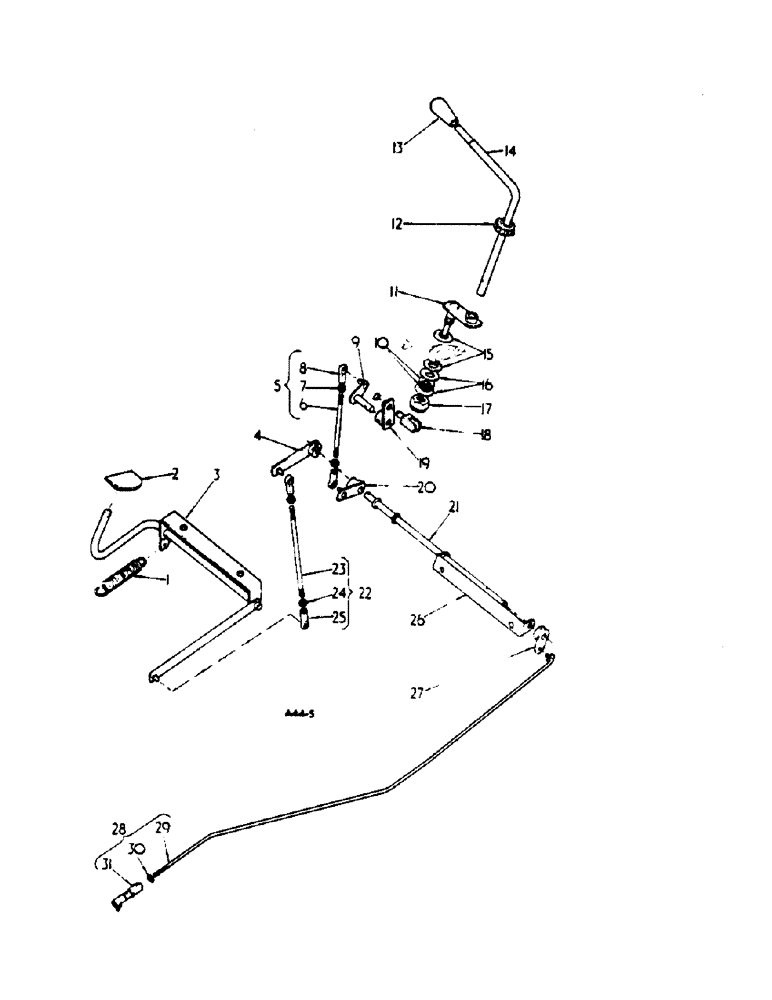

Запчасти Case IH 364 (4-07) - CHASSIS, GOVERNOR CONTROLS (12) - CHASSIS

1

3047546R1

SPRING

pedal return

1шт.

2

3120455R1

PEDAL, CPTE foot accelerator, used w/cab and safety frame

1шт.

2

3108779R1

PEDAL

CPTE foot accelerator

1шт.

18607R1

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

3

3112889R1

BRACKET

cross shaft CPTE, used w/cab and safety frame

1шт.

3

3112052R1

BRACKET

CPTE cross shaft

1шт.

15016R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/8" , Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/8", G2

2шт.

NLS

NO LONGER SERVICED

NUT, hex 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

4

3112094R1

LEVER

CPTE foot accelerator

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

5

3112048R91

ROD

CPTE control, comprising

1шт.

6

NSS

NOT SOLD SEPARAT

ROD, control (NSS)

1шт.

7

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

8

3068537R1

TRUNNION

END, control rod

2шт.

9

3112080R1

LEVER

CPTE governor control

1шт.

10

3112079R1

WASHER

disc spring

2шт.

11

3112075R2

ARM

CPTE governor control

1шт.

On order for 3112074R1 or 3112075R1 furnish 3112074R2 and 3112075R2 together with pin 17054R1

1шт.

17054R1

LOCK PIN,3/16" x 7/8", Slotted

PIN, , for use w/3112075R2 3/16" x 7/8", Slotted

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, , For use w/3112075R1 1/8" x 7/8", Slotted

1шт.

575808R1

WASHER

19/32 x 1 x .063 plain

1шт.

12

528290R1

GUIDE RING

COLLAR, governor control handle

1шт.

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW, 3/8" soc hd

1шт.

13

402584R1

BUTTON

KNOB, governor control handle

1шт.

14

3112074R2

ROD

governor control handle

1шт.

On order for 3112074R1 or 3112075R1 furnish 3112074R2 and 3112075R2 together with pin 17054R1

1шт.

15

3112078R1

FRICTION WASHER

friction governor control (replaces 3112076R1)

2шт.

16

551174R1

WASHER

19/32" x 1-1/4" x 1/8"

2шт.

17

3112678R1

NUT

9/16" UNF self locking

1шт.

18

3112086R1

FORK

governor control

1шт.

3112087R1

WASHER

governor control fork

1шт.

138693R1

SNAP RING,#31, Ext

RING - snap, #31, Ext

1шт.

19

3112082R1

LEVER

CPTE., throttle arm

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32" x 13/16" x .051" plain

1шт.

20

3112091R1

LEVER

CPTE., cross shaft driving

1шт.

21

3112090R2

SHAFT

cross CPTE., governor control

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x.051

2шт.

121223

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

2шт.

22

3112050R91

ROD

control CPTE., foot accelarator, comprising

1шт.

23

NSS

NOT SOLD SEPARAT

ROD, control foot accelerator (NSS)

1шт.

24

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

25

3068537R1

TRUNNION

END, control rod

2шт.

3112088R1

BRACKET

cross shaft CPTE.

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

3114217R1

LEVER

CPTE., cross shaft

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

PIN, 1/8" x 7/8", Slotted

1шт.

28

3112097R91

ROD

assy., CPTE., cross shaft to governor, comprising

1шт.

29

NSS

NOT SOLD SEPARAT

ROD, assy., cross shaft to governor (NSS)

1шт.

137141

AXLE PIN

PIN, cotter, 1/16" x 5/8"

1шт.

120392

WASHER,1/4", SAE

9/32" x 5/8" x .051"

1шт.

23036R1

WASHER

13/32" x 3/4" x .030" plain

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

30

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF

1шт.

31

3109941R2

END

adj. control rod

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" UNF

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4" hex. jam, high idle adj. stop

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4" x 1-1/2" fill hd., high idle adj. stop

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

hex. hd. 3/8" x 1-1/2", foot accelerator stop

1шт.

120377

NUT,3/8" - 16, Gr 5

Foot accelerator stop 3/8"-16, G5

2шт.
