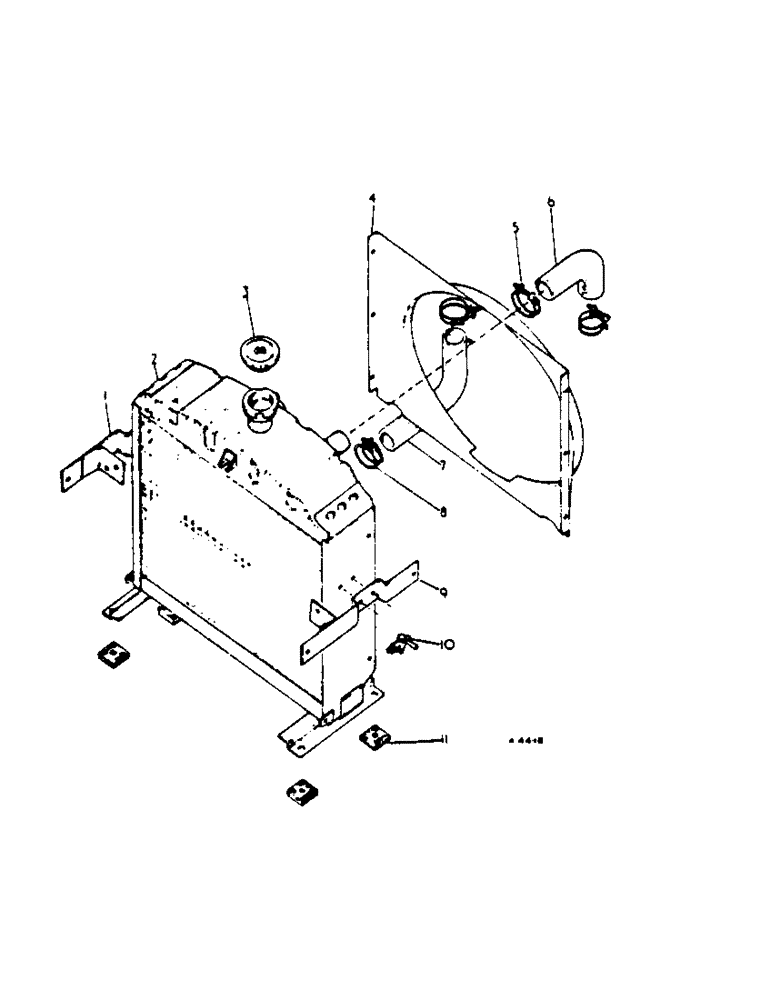

Запчасти Case IH 364 (4-06) - CHASSIS, RADIATOR AND CONNECTIONS (12) - CHASSIS

1

3112070R1

SUPPORT

CPTE., air cleaner R.H.

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

106261

WASHER,1/4"

5/16 x 3/4 x .051

2шт.

2

3112868R94

RADIATOR

w/cap, fan housing and guards CPTE.

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex hd 7/16 x 1-1/4

4шт.

NLS

NO LONGER SERVICED

hex 7/16

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

3

3115339R91

CAP

filler, used w/radiator 3112868R94

1шт.

3

3111424R91

FILLER CAP

CAP, filler, used w/radiator 3112868R91

1шт.

4

3115338R91

COWL

assy, fan, used w/3112868R94

1шт.

4

3047379R1

HOUSING

COWL, fan, used w/3112868R91

1шт.

25-114

NUT,1/4"-28, G5

1/4 UNF hex

6шт.

149495

SCREW,Sl Rnd Hd, 1/4" - 28 x 1/2"

1/4 UNF x 1/2 rd hd

6шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

5

705935R91

HOSE CLAMP

CLAMP, radiator inlet hose

2шт.

6

3112067R1

RADIATOR HOSE,1.50" ID x 4.44", SAE 20R4 CLASS R or SAE 20R4 CLASS D1

Inlet 1.50" ID x 4.44", SAE 20R4 CLASS R or SAE 20R4 CLASS D1

1шт.

7

3112068R1

HOSE

radiator outlet

1шт.

8

705934R91

CLAMP

radiator outler hose

2шт.

9

3112069R1

SUPPORT, CPTE., air cleaner L.H.

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

106261

WASHER,1/4"

5/16 x 3/4 x .051

2шт.

10

3113083R1

PLUG, DRAIN

1шт.

11

3041407R1

PAD

radiator mounting

4шт.

3120448R1

PIPE

overflow, Not illustrated

1шт.

3047381R1

CLIP, pipe, Not illustrated

1шт.
