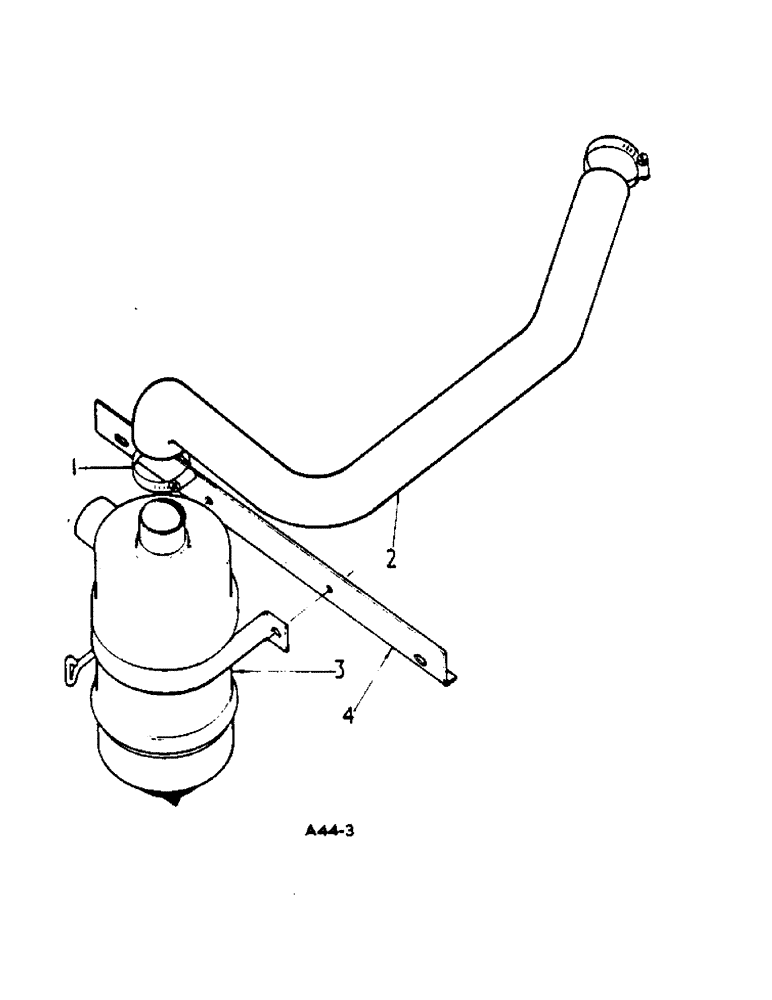

Запчасти Case IH 364 (4-05) - CHASSIS, AIR CLEANER AND CONNECTIONS (12) - CHASSIS

1

3025291R91

CLIP

worm drive

2шт.

2

3111971R1

HOSE

air cleaner connection

1шт.

3

3111969R92

CLEANER ASSY.

CLEANER, dry air type, see detail list

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

3111970R1

SUPPORT

air cleaner

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

179814

SPACER

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex. 5/16"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

95-11034

WASHER,1/4"

11/32" x 11/16" plain

4шт.
