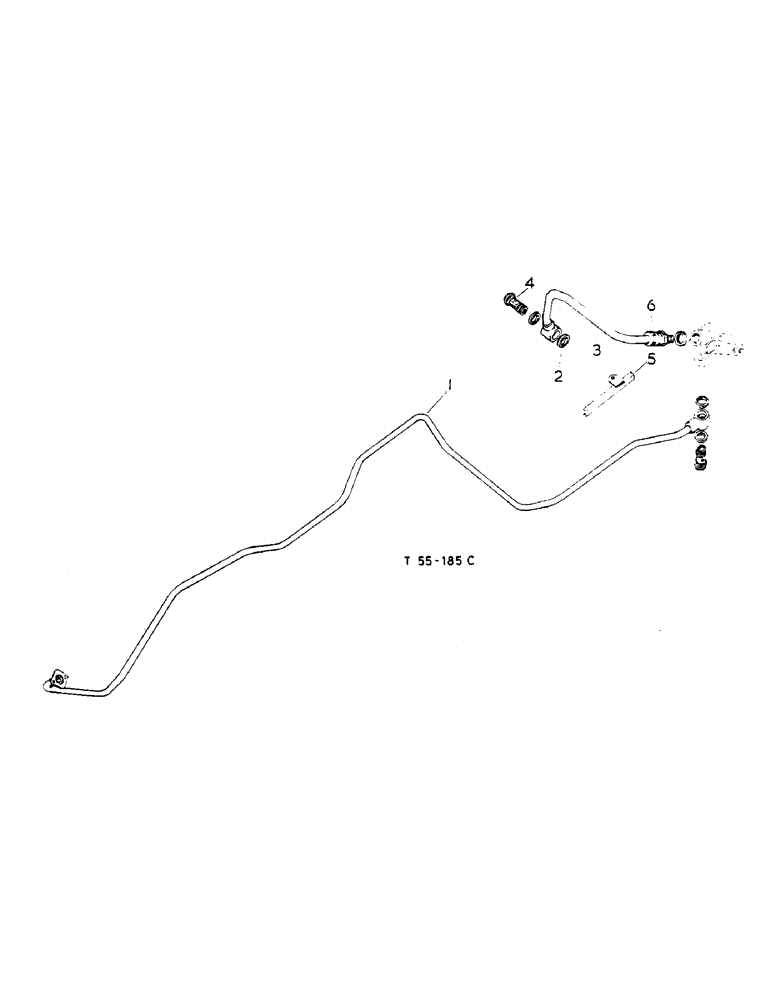

Запчасти Case IH 364 (5-27) - HYDRAULIC ATTACHMENTS, AUXILIARY VALVE, COMPLETING PACKAGE, AUXILIARY VALVE ATTACHMENTS (07) - HYDRAULIC SYSTEM

3108929R92

PACKAGE, completing aux. valves, Includes: Ref. 1 - 6

1шт.

1

3069028R31

PIPE

assy., pressure

1шт.

2

704337R1

SEALING WASHER

WASHER, Dowty

5шт.

3

3069024R11

PIPE

assy., pressure, adaptor block to main valve

1шт.

4

3069026R1

BOLT,1/2" BSP x 2"

banjo

2шт.

5

3069030R11

ROD

CONDUIT, CPTE., cable front

1шт.

6

3069027R91

COUPLING, BREAK AWAY

COUPLING, 1/2" BSP steel

1шт.

3069021R1

PLATE

valve cover

1шт.

lllustrated with aux. valves

1шт.

3069023R1

BLOCK

adaptor

1шт.

lllustrated with aux. valves

1шт.

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

"O" RING, 3/8" x 9/16" x 3/32"

3шт.

lllustrated with aux. valves

1шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, 5/8" x 7/16" x 3/32"

3шт.

lllustrated with aux. valves

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING, 1" x 1-1/4" x 1/8"

3шт.

lllustrated with aux. valves

1шт.

3110297R1

RETAINER

"o" ring

3шт.

lllustrated with aux. valves

1шт.

3110307R91

O-RING

PACKAGE, O-ring service, comprising: (1) O-ring 380794R1, (1) retainer 3110297R1

1шт.
