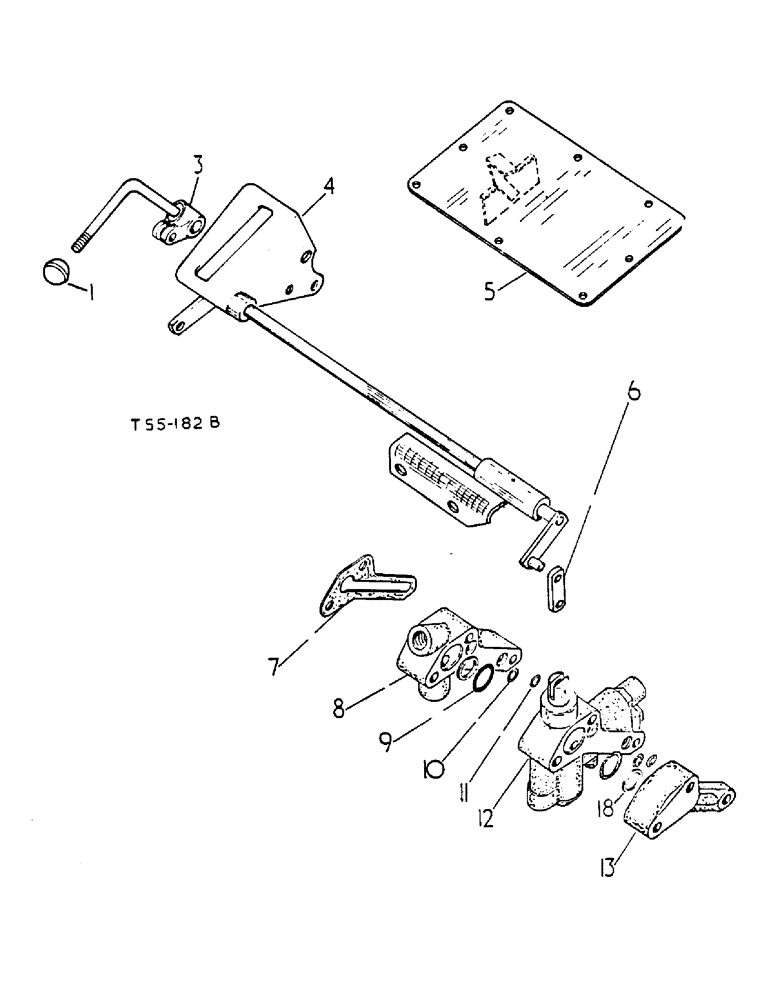

Запчасти Case IH 364 (5-21) - HYDRAULIC ATTACHMENTS, AUXILIARY VALVE ATTACHMENTS, WITH ONE D.A. VALVE (07) - HYDRAULIC SYSTEM

3070857R91

ATTACHMENT, double acting aux. valve

1шт.

1

371602R1

KNOB

1шт.

3

3114786R1

LEVER

CPTE., R.H. control

1шт.

3066427R1

PIN

5/16" x 7/8" srd. hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

4

3069016R91

SHAFT

assy., cross

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2" x 3-3/4" hex. hd.

2шт.

102635

NUT,3/8"-16, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

Q1505

WASHER

13/32" x 1" x 16 ga plain

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8 UNC x 1-3/8 hex. hd.

2шт.

5

3044366R12

PLATE

top cover welded assy

1шт.

6

3061040R1

LINK

connecting

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, std. hd. 5/16" x 1"

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

7

3061055R2

GASKET

1шт.

8

3069023R1

BLOCK

adaptor

1шт.

Furnished with complete package 3108929R91 only

1шт.

9

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING, 1" x 1-1/4" x 1/8"

2шт.

Furnished with complete package 3108929R91 only

1шт.

10

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, 7/16" x 5/8" x 3/32

2шт.

Furnished with complete package 3108929R91 only

1шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

"O" RING, 3/8" x 9/16" x 3/32"

2шт.

Furnished with complete package 3108929R91 only

1шт.

12

3069020R92

CONTROL VALVE

VALVE, double acting aux.

1шт.

13

3069021R1

PLATE

valve cover

1шт.

Furnished with complete package 3108929R91 only

1шт.

186289

BOLT,Hex, 3/8" - 16 x 5", Gr 5

3/8" x 5" hex. hd.

2шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8" x 4-1/4" hex. hd.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

18

3110297R1

RETAINER

"o" ring

2шт.

Furnished with complete package 3108929R91 only

1шт.

9410360

PLUG

blanking

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING

2шт.

3110307R91

O-RING

PACKAGE, O-ring service, comprising: (1) O-ring 380794R1, (1) retainer 3110297R1

1шт.

Furnished with complete package 3108929R91 only

1шт.
