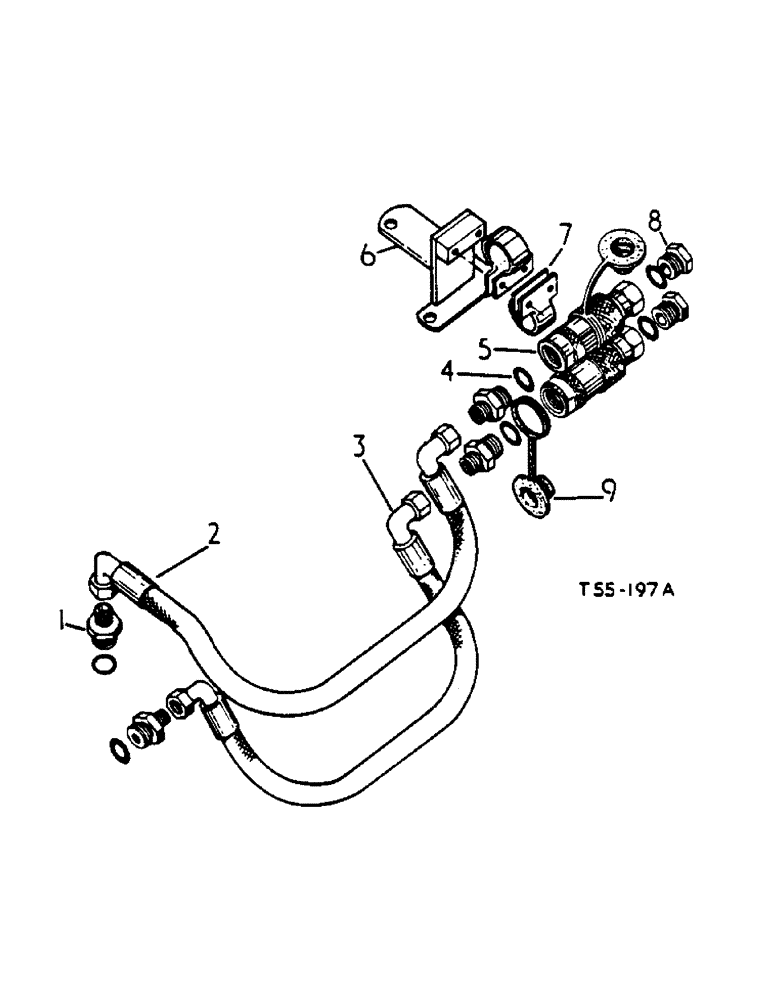

Запчасти Case IH 364 (5-17) - HYDRAULIC ATTACHMENTS, SELF SEALING COUPLING ATTACHMENT, DOUBLE ACTING, BREAKAWAY (07) - HYDRAULIC SYSTEM

3069764R91

ATTACHMENT, breakaway self sealing coupling

1шт.

Fitted to tractors with double acting independent aux. valve attachment

1шт.

1

3060799R2

ADAPTER

ADAPTOR hose

4шт.

2

3069765R91

HOSE

flexible

1шт.

3

3062508R91

HOSE

flexible

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, 3/4 x 16/16 x 3/32

6шт.

5

3067991R91

BREAKER POINTS

COUPLING, CPTE., breakaway

2шт.

3067993R91

COUPLING, BREAK AWAY

COUPLING, CPTE. female half breakaway

2шт.

3115783R1

O-RING

"O" RING, female half

1шт.

3115782R1

BACK-UP RING

back up

1шт.

3067992R91

COUPLING, BREAK AWAY

COUPLING, CPTE., male half breakaway

2шт.

6

3065078R12

SUPPORT

PLATE, assy., coupling support

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

hex. hd. 5/16 x 1-1/2

2шт.

NLS

NO LONGER SERVICED

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

3114106R1

CLAMP

coupling

2шт.

371114R1

CLAMP

FRAME

1шт.

On orders for frame 317114R1 and clamp 371115R1 furnish (2) clamp 3114106R1 and (2) bolt 180083 and (2) nut 102634

1шт.

371115R1

CLAMP

1шт.

On orders for frame 317114R1 and clamp 371115R1 furnish (2) clamp 3114106R1 and (2) bolt 180083 and (2) nut 102634

1шт.

8

9410360

PLUG

5/8 blanking

2шт.

9

373220R1

PLUG

SEAL, dust, opt.

2шт.

9

401757R11

PLUG

SEAL, dust

2шт.
