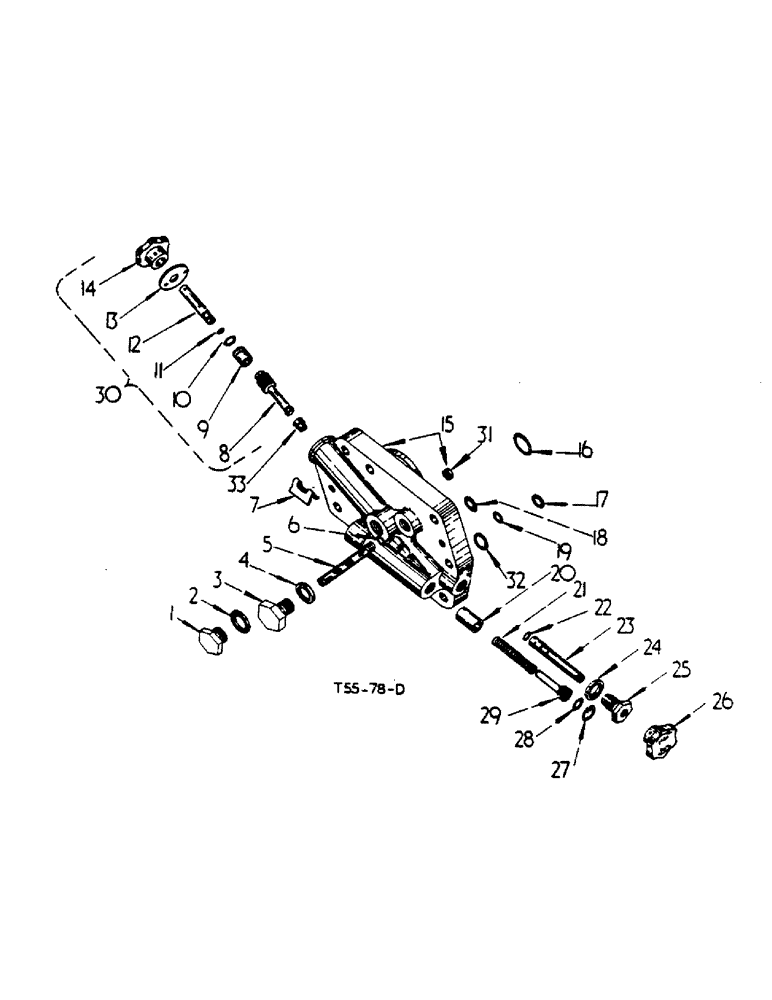

Запчасти Case IH 364 (5-09) - HYDRAULIC ATTACHMENTS, CYLINDER HEAD, CONTROL VALVE (07) - HYDRAULIC SYSTEM

3069236R95

CONTROL VALVE

VALVE, control draft, vary touch

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex. hd. 1/2" x 2-1/4"

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex. hd. 1/2" x 2-1/2"

6шт.

179842

SPACER

BOLT, hex. hd. 3/8" x 1-3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

704743R91

SEALING WASHER

WASHER, Dowty, 1/4" B.S.P., comprising: cylinder head, valve body see detail list

1шт.

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

1

706027R1

PLUG

1/2" BSP, auxiliary tapping

1шт.

2

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

3

751580R3

BOLT,5/8" - 18 x 5/8"

needle valve cover

1шт.

4

3045118R1

SEAL

WASHER, Dowty

1шт.

5

3047294R95

FILTER

ORIFICE, assy.

1шт.

6

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

"O" RING, 1/4" x 3/8" x 1/16"

1шт.

7

3045109R2

SPACER

1шт.

8

3045102R2

VALVE

isolator

1шт.

9

3045106R1

BUSHING

BUSH, isolator valve

1шт.

10

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

"O" RING, 15/32" x 21/32"

1шт.

11

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

"O" RING, 7/32" x 11/32", class 1

1шт.

12

3045107R1

SHAFT

isolator valve knob

1шт.

443137

AXLE PIN

PIN, groove, 5/32" x 1/2"

1шт.

13

3045104R1

PLATE

stop

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

3045113R1

KNOB

isolator valve

1шт.

142494

GUIDE

PIN - grooved, 5/32" x 7/8", Type A

1шт.

15

3069235R91

CYLINDER

HEAD, w/plug and seat 3067146R1 assy., cyl.

1шт.

16

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING, pressure outlet 11/16" x 7/8" x 3/32", class 5

1шт.

17

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O" RING, 9/16 x 3/4" x 3/32"

1шт.

18

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

"O" RING, 1/4" x 3/4", Angus

1шт.

19

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, pressure, inlet, 7/16" x 5/8" x 3/32", class 6

1шт.

20

3045105R1

PISTON

speed control

1шт.

21

3045111R1

SPRING

speed control piston

1шт.

22

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

"O" RING, 5/16" x 7/16" x 1/16", class 6

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL, speed control, order spool 3045103R11

1шт.

Order spool 3045103R11

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Rail 3/16" x 1/2", Slotted

1шт.

24

3045118R1

SEAL

WASHER, Dowty

1шт.

25

NSS

NOT SOLD SEPARAT

LATCH, spool, order spool 3045103R11

1шт.

Order spool 3045103R11

1шт.

26

3045112R1

KNOB

speed control

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

PIN - grooved, 5/32" x 7/8", Type A

1шт.

27

3047246R1

RETAINER

CIRCLIP, for 11/16" dia. bore

1шт.

28

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, 7/16" x 5/8" x 3/32"

1шт.

29

3108188R11

PLUG

assy.( replaced 3108188R1)

1шт.

30

3045102R21

VALVE

assy., isolator, comprising: (1) bush 3045106R1, (1) knob 3045113R1, (1) "o" ring 23524R1, (1) "o" ring 3045116R1, (1) pin 443137, (1) pin 142494, (1) plate 3045104R1, (1) shaft 3045107R1, (1) valve 3045102R1

1шт.

32

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O" RING, 9/16" x 3/4" x 3/32", class 6

1шт.

3045103R11

SPOOL

speed control, comprising: (1) knob 3045112R1, (1) latch, (1) pin 17136R1, (1) pin 142494, (1) spool

1шт.

31

NSS

NOT SOLD SEPARAT

(Not serviced)

1шт.

33

3067146R1

SEAT

isolator valve

1шт.
