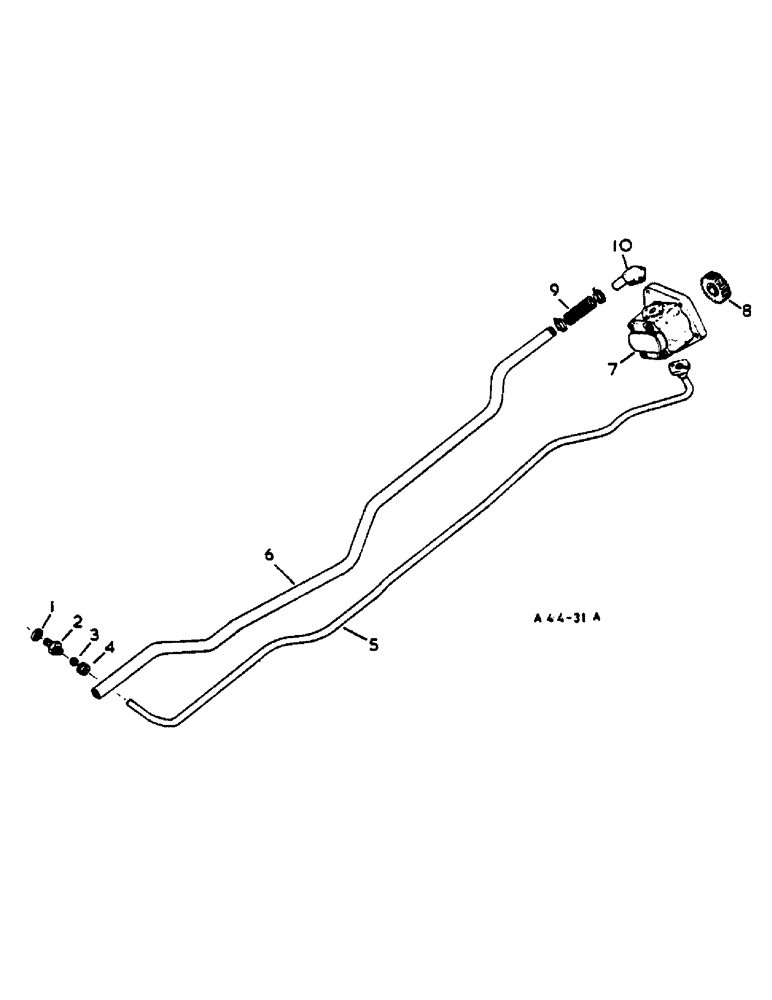

Запчасти Case IH 364 (5-08) - HYDRAULIC ATTACHMENTS, PUMP, SUCTION AND PRESSURE PIPES, HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (07) - HYDRAULIC SYSTEM

1

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

2

704336R1

COUPLING, BREAK AWAY

COUPLING, male, parallel, 1/2" x 1/2" BSP

1шт.

3

705519R1

RING

sealing

1шт.

4

705520R1

NUT,0.69" Length

1шт.

5

3112657R2

PIPE

CPTE., pressure

1шт.

The o-ring which sits between the flange and the pump housing is 238-6113

1шт.

6

3112661R1

PIPE

CPTE, suction

1шт.

7

NSS

NOT SOLD SEPARAT

PUMP, CPTE., hydraulic, see detail list

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

8

704331R1

GEAR

PINION, hydraulic pump

1шт.

706405R1

CLAMP

hydraulic pipe

2шт.

103084

NUT, hex. 1/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

9

704741R1

HOSE,0.81" ID x 2.50"

1шт.

705937R91

CLIP

CLAMP, hose

2шт.

10

3112659R1

MANIFOLD

suction

1шт.
