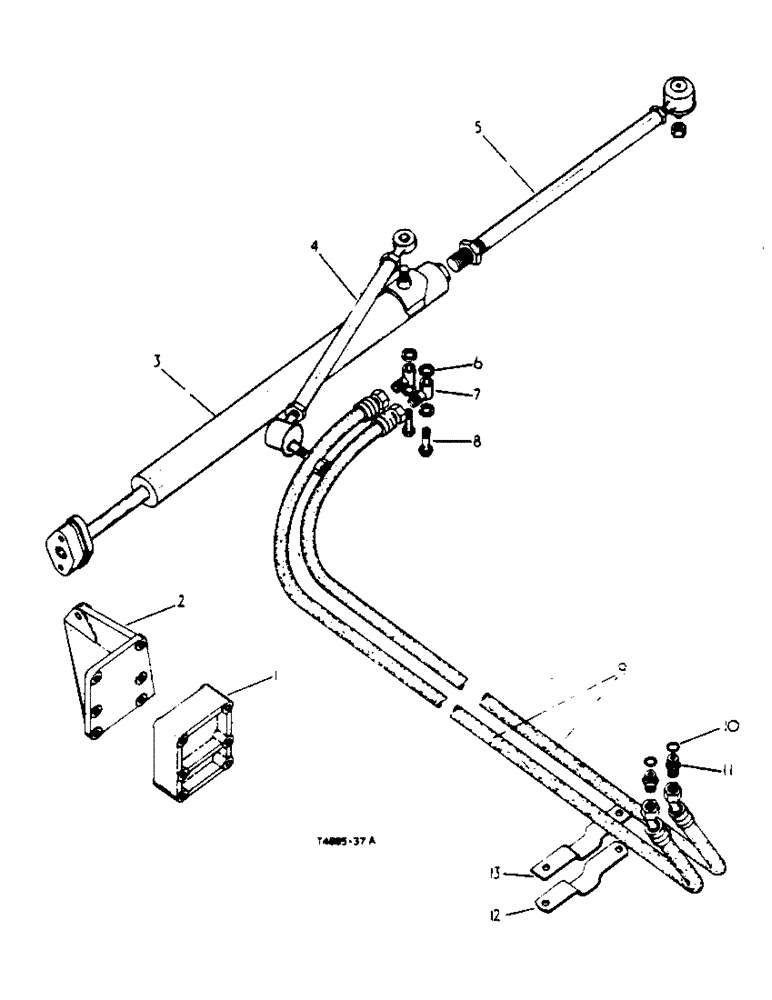

Запчасти Case IH 364 (6-15) - ATTACHMENTS, POWER STEERING AND FRONT AXLE ATTACHMENT, POWER STEERING BOOSTER AND HOSES Attachments

NSS

NOT SOLD SEPARAT

ATTACHMENT, power assisted steering for use w/std. single clutch

1шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT, power assisted steering, for use w/heavy duty single clutch or C.R.P.T.O.

1шт.

1

3070921R91

SPACER, reaction bracket

1шт.

2

3043954R1

BRACKET

reaction

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8" x 3-1/4" hex. hd.

3шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8" x 3-1/2" hex. hd.

2шт.

37-1616

DOWEL,3/8" x 1"

2шт.

102635

NUT,3/8"-16, G5

. 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

3043938R92

STEERING CYLINDER

BOOSTER, w/adaptor CPTE., steering, see detail list

1шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

2шт.

NLS

NO LONGER SERVICED

7/16" hex.

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

4

3105265R91

LINK

CPTE., drag w/two lubricators 110146R91, see detail list

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32" x 1-5/16" x .095"

1шт.

5

3070916R91

LINK

CPTE., connecting, see detail list

1шт.

6

3045118R1

SEAL

WASHER, see steering booster (replace DASHPART)

6шт.

7

3064499R1

BOLT,Mild Steel

BANJO, see steering booster (replace DASHPART)

2шт.

8

NSS

NOT SOLD SEPARAT

BOLT, banjo, see steering booster

2шт.

9

3112830R1

HOSE

, Serial Range: valve-booster

2шт.

10

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING, class 4

2шт.

11

3063920R1

ADAPTER

ADAPTOR

2шт.

12

3043979R2

BRACKET

hose

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

13

3043980R2

INSERT

rubber

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.
