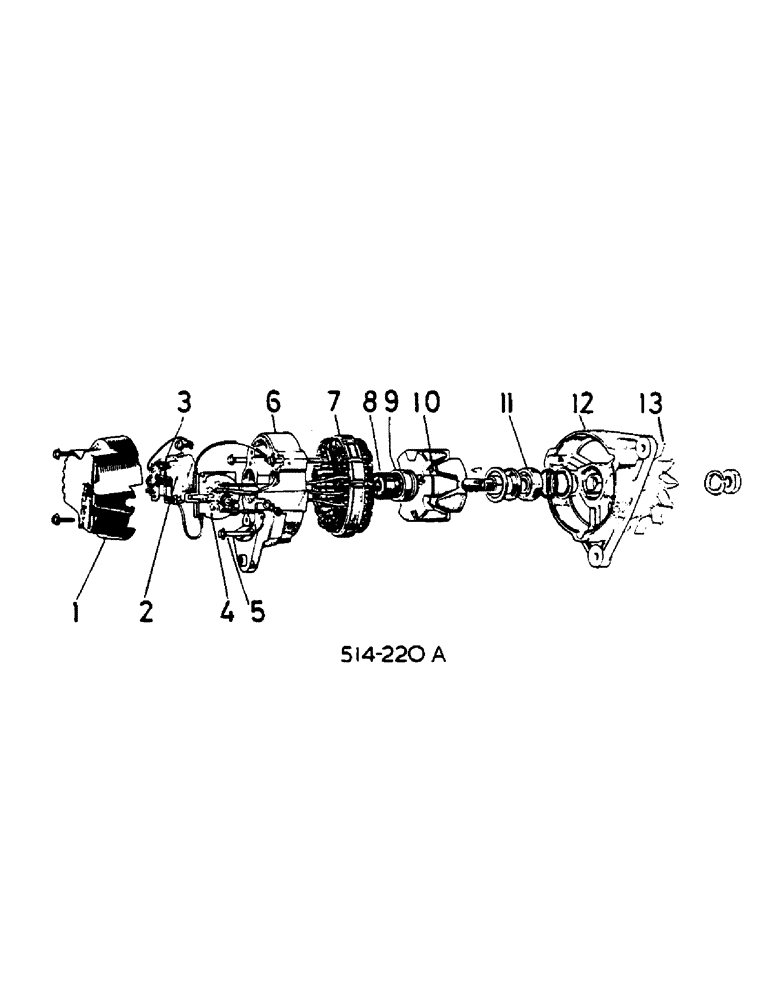

Запчасти Case IH 364 (3-26) - ELECTRICAL, ALTERNATOR (06) - ELECTRICAL SYSTEMS

3113331R92

ALTERNATOR

lucas 15 acr

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex hd

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 hex-hd

1шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 plain

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

1

3116086R1

COVER

1шт.

2

3116094R91

BRUSH HOLDER

BRUSH, box assy w/brush, kit 3116099R91

1шт.

3116099R91

BRUSH SET

KIT, brush

1шт.

3

3116087R1

REGULATOR

1шт.

4

3116088R1

RECTIFIER

1шт.

5

3116095R1

BOLT

fixing

2шт.

6

3116092R1

BRACKET

S.R.E.

1шт.

7

3116093R1

STATOR

1шт.

8

3116097R1

RING

slip

1шт.

9

3116098R1

KIT

BEARING KIT, S.R.E.

1шт.

10

3116091R91

ROTOR

ASSY, w/ring 3116097R1 and bearing 3116098R1

1шт.

11

3116096R91

BEARING ASSY

KIT, D.E.

1шт.

12

3116089R91

BRACKET

ASSY, drive end

1шт.

13

3117067R1

FAN

alternator

1шт.

3116090R91

KIT

parts sundry

1шт.

3115781R1

RECTIFIER

device anti-surge protection

1шт.

3123891R1

RECTIFIER

ASSEMBLY

1шт.
