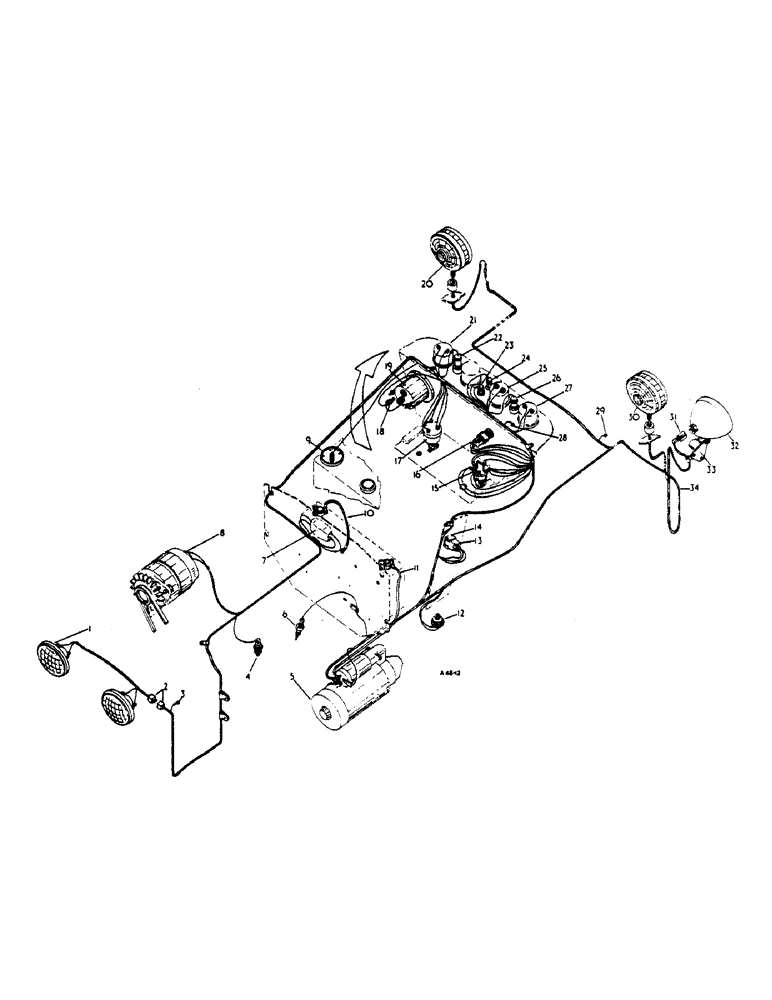

Запчасти Case IH 364 (3-21) - ELECTRICAL, ELECTRICAL SYSTEM USA/CANADA, TRACTORS FITTED WITH ALTERNATOR (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
LAMP, sealed beam unit, see headlamp
1шт.
2
NSS
NOT SOLD SEPARAT
CONNECTOR, two pin headlamp
1шт.
3
NSS
NOT SOLD SEPARAT
CONNECTOR, earth
1шт.
4
NSS
NOT SOLD SEPARAT
INDICATOR, heat, see electrical instruments
1шт.
5
NSS
NOT SOLD SEPARAT
MOTOR, starter, see detail list
1шт.
6
377206R92
GLOW PLUG
no. 4
1шт.
7
NSS
NOT SOLD SEPARAT
HOUSING, fuse, see electrical instruments
1шт.
8
NSS
NOT SOLD SEPARAT
ALTERNATOR, see detail list
1шт.
9
NSS
NOT SOLD SEPARAT
GAUGE, fuel sender, see electrical instruments
1шт.
10
3112292R91
CABLE
, Serial Range: battery-earth
1шт.
11
3111980R91
CABLE
, Serial Range: battery-starter
1шт.
12
NSS
NOT SOLD SEPARAT
SWITCH, safety
1шт.
13
NSS
NOT SOLD SEPARAT
FLASHER UNIT, see direction indicator instruments
1шт.
14
NSS
NOT SOLD SEPARAT
HOLDER, flasher unit
1шт.
15
NSS
NOT SOLD SEPARAT
SWITCH, light, see electrical instruments
1шт.
16
NSS
NOT SOLD SEPARAT
INDICATOR, resistor, see electrical instruments
1шт.
17
NSS
NOT SOLD SEPARAT
SWITCH, key, see electrical instruments
1шт.
18
NSS
NOT SOLD SEPARAT
LAMP ASSY, speedometer, see electrical instruments
1шт.
19
NSS
NOT SOLD SEPARAT
SPEEDOMETER, see electrical instruments
1шт.
20
NSS
NOT SOLD SEPARAT
LIGHT, flasher w/spacer, see flasher light, de-luxe
1шт.
21
NSS
NOT SOLD SEPARAT
GAUGE, water temperature, see electrical instruments
1шт.
22
NSS
NOT SOLD SEPARAT
LIGHT, panel
1шт.
705757R91
LAMP
12v 5w MCC
1шт.
751467R1
BULB
LAMP, 12v 5w MCC, optional
1шт.
23
NSS
NOT SOLD SEPARAT
LIGHT, alternator indicator
1шт.
3041099R1
LAMP
12v 5w MCC
1шт.
24
NSS
NOT SOLD SEPARAT
LIGHT, headlamp main beam warning
1шт.
3041099R1
LAMP
12v 5w MCC
1шт.
25
NSS
NOT SOLD SEPARAT
AMMETER ASSY, see electrical instruments
1шт.
26
NSS
NOT SOLD SEPARAT
LIGHT, panel
1шт.
705757R91
LAMP
12v 5w MCC
1шт.
751467R1
BULB
LAMP, 12v 5w MCC, optional
1шт.
27
NSS
NOT SOLD SEPARAT
GAUGE, fuel, see electrical instruments
1шт.
28
NSS
NOT SOLD SEPARAT
CONNECTOR, earth
1шт.
29
NSS
NOT SOLD SEPARAT
CONNECTOR, earth
1шт.
30
NSS
NOT SOLD SEPARAT
LIGHT, flasher w/spacer, see flasher light, de-luxe
1шт.
31
NSS
NOT SOLD SEPARAT
CONNECTOR, plough lamp, see sealed beam combination
1шт.
32
NSS
NOT SOLD SEPARAT
LIGHT, plough, see sealed beam combination
1шт.
33
NSS
NOT SOLD SEPARAT
BRACKET, plough light support, see sealed beam combination
1шт.
34
3119758R1
HARNESS, main cable
1шт.
