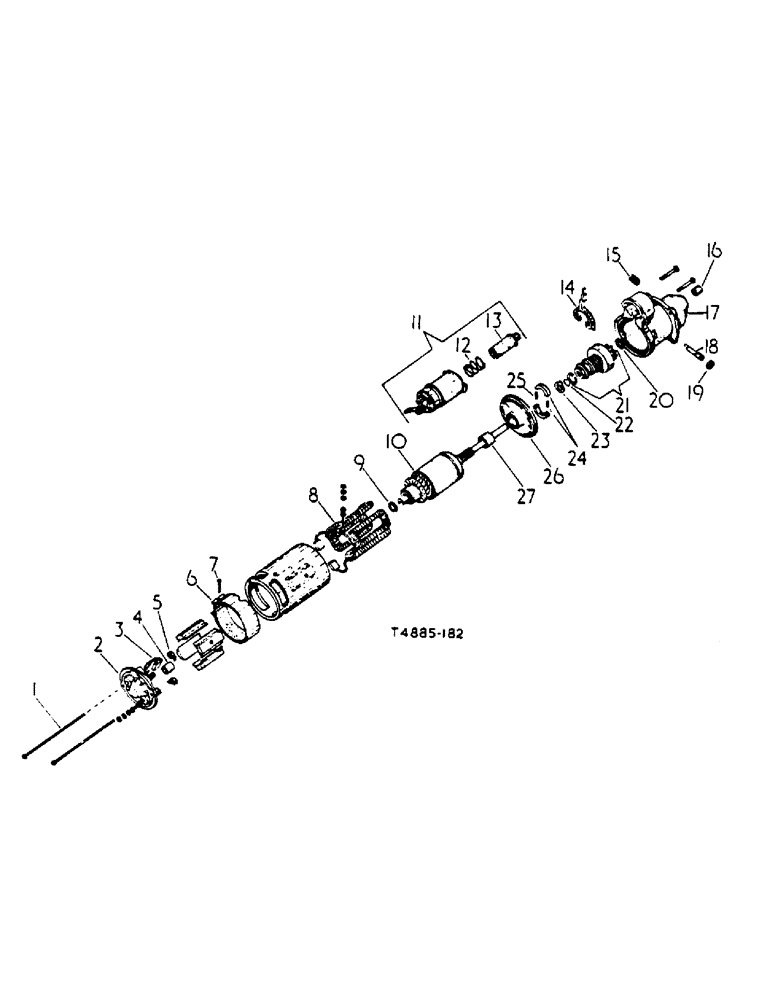

Запчасти Case IH 364 (3-08) - ELECTRICAL, STARTER MOTOR (06) - ELECTRICAL SYSTEMS

3046890R92

STARTER MOTOR

MOTOR, starter, Lucas 26288, opt w/starter motor 3114177R91

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex. hd. 3/8 x 1-1/8

2шт.

102635

NUT,3/8"-16, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

NSS

NOT SOLD SEPARAT

BOLT, through, supplied as a pair, order kit 3114768R91

1шт.

2

3111024R91

BRACKET

or frame w/bush 3111025R1

1шт.

3

705833R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

4

3113029R91

BUSHING

KIT, brushes

1шт.

5

3206523R91

SPRING KIT

KIT, brush tension spring

1шт.

6

3062342R91

BAND, cover w/nut 705832R1 and screw 3106686R1

1шт.

7

3106686R1

SCREW

cover band fixing

1шт.

705832R1

NUT

cover band fixing screw

1шт.

8

3062381R91

COIL

field, set

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, commutator thrust, order kit 3114823R91

1шт.

10

NSS

NOT SOLD SEPARAT

ARMATURE, order kit 3114823R91 or armature 3111039R91

1шт.

11

3111040R91

SOLENOID SWITCH

SOLENOID, starter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING, plunger, order kit 3117008R91

1шт.

13

3117088R91

KIT, solenoid end cap

1шт.

NSS

NOT SOLD SEPARAT

NUT, solenoid fixing, order kit 3114821R91

1шт.

14

NSS

NOT SOLD SEPARAT

LEVER, order kit 3114821R91

1шт.

15

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

16

NSS

NOT SOLD SEPARAT

BUSHING, bearing, order kit 3113029R91

1шт.

17

3111030R91

BRACKET

OR FRAME, w/bush

1шт.

18

NSS

NOT SOLD SEPARAT

PIN, pivot, order kit 3114821R91

1шт.

19

NSS

NOT SOLD SEPARAT

NUT, pivot bolt, order kit 3114821R91

1шт.

20

NSS

NOT SOLD SEPARAT

COLLAR, thrust, order kit 3114822R91

1шт.

21

NSS

NOT SOLD SEPARAT

DRIVE, roller clutch, order kit 3114822R91 or drive 3111029R91

1шт.

22

NSS

NOT SOLD SEPARAT

RING, retaining, order kit 3114822R91

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER, thrust, commutator end, order kit 3114823R91

1шт.

24

NSS

NOT SOLD SEPARAT

SHOE, CPTE., brake, w/two spring 3062376R1, order kit 3113030R91

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING, brake shoe, order kit 3113030R91

2шт.

26

3111034R91

BRACKET

OR FRAME, brake w/bush 3111035R1

1шт.

27

NSS

NOT SOLD SEPARAT

BUSH, brake bracket, order kit 3113029R91

1шт.

3114769R91

KIT

PARTS, sundry, set

1шт.

3114768R91

BOLT

KIT, bolts

1шт.

3113030R91

KIT

brakes

1шт.

3114821R91

PACKAGE

KIT, solenoid link

1шт.

3114822R91

KIT

drive assy

1шт.

3114823R91

ARMATURE

KIT, armature

1шт.

3113029R91

BUSHING

KIT, brushes

1шт.

3111029R91

DRIVE

roller clutch up to year 1971

1шт.

3111039R91

ARMATURE

up to year 1971

1шт.
