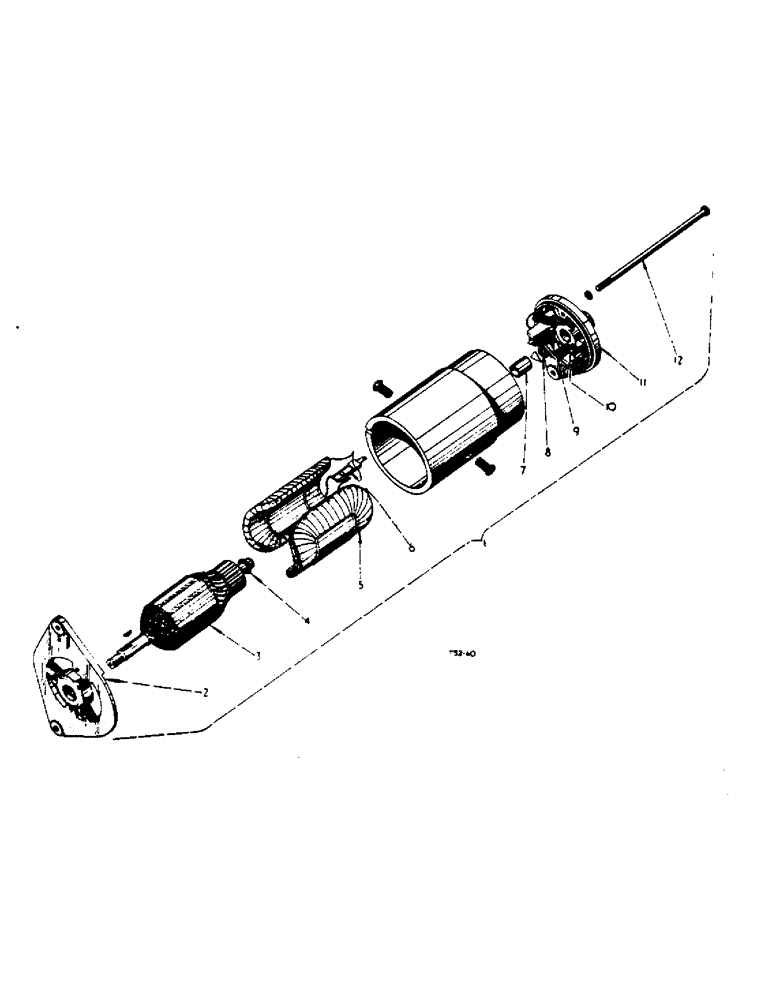

Запчасти Case IH 364 (3-07) - ELECTRICAL, GENERATOR (06) - ELECTRICAL SYSTEMS

1

3112883R91

GENERATOR

12 volt, CPTE., package, Includes: Ref. 2 - 12

1шт.

2

3043332R1

BRACKET

drive end, CPTE., circlipped (3043332R91)

1шт.

3112882R91

PACKAGE

KIT, bearing retention, comprising circlip, plate, bearing, ring, presure, retainer, pressure, retainer, pressure ring, washer, felt retaining, washer, felt

1шт.

3

702003R91

ARMATURE

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER, fibre, thrust

1шт.

5

3043338R91

COIL

S, field set

1шт.

6

3043339R91

TERMINAL CONNECTOR

TERMINAL, Lucas, set

1шт.

7

700474R1

BUSHING

BUSH, bronze

1шт.

8

3043329R91

OILER

FELT, oiler

1шт.

9

3043327R91

BRUSH, COMMUTATOR

BRUSH, set

1шт.

10

3043330R91

SPRING

KIT, brush tension spring

1шт.

11

3043328R91

BRACKET

commutator end, CPTE., comprising (1) bush 700474R1, (1) kit 3043330R91, (1) oiler 3043329R91

1шт.

12

702001R1

BOLT

through

2шт.

700468R1

BEARING

drive end

1шт.

3043340R91

PACKAGE

SUNDRY PARTS SET, comprising nut, shaft, washer, C.F. thrust, key, woodruff, collar, d.e., (2) screws, brush fixing, (2) washers, brush fixing, (2) washers, through bolts

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

181339

BOLT,Hex, 5/16" - 24 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

Q397

WASHER

11/32" x 3/4" x 16 ga.

1шт.
