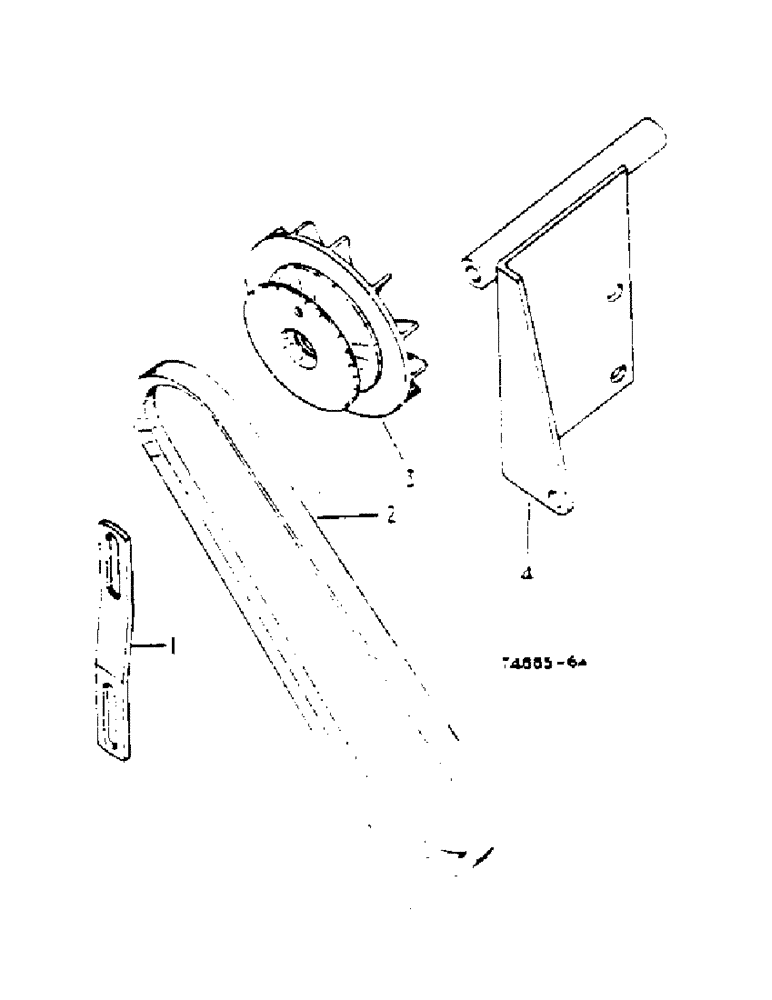

Запчасти Case IH 364 (3-06) - ELECTRICAL, GENERATOR PULLEY, FAN BELT AND BRACKET (06) - ELECTRICAL SYSTEMS

1

3070946R1

BRACE

generator

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

Q397

WASHER

11/32" x 3/4" x 16 ga.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

704449R1

BELT

BELT, Generator

1шт.

3

3070492R2

PULLEY

generator

1шт.

4

3070947R92

BRACKET

CPTE., generator

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
