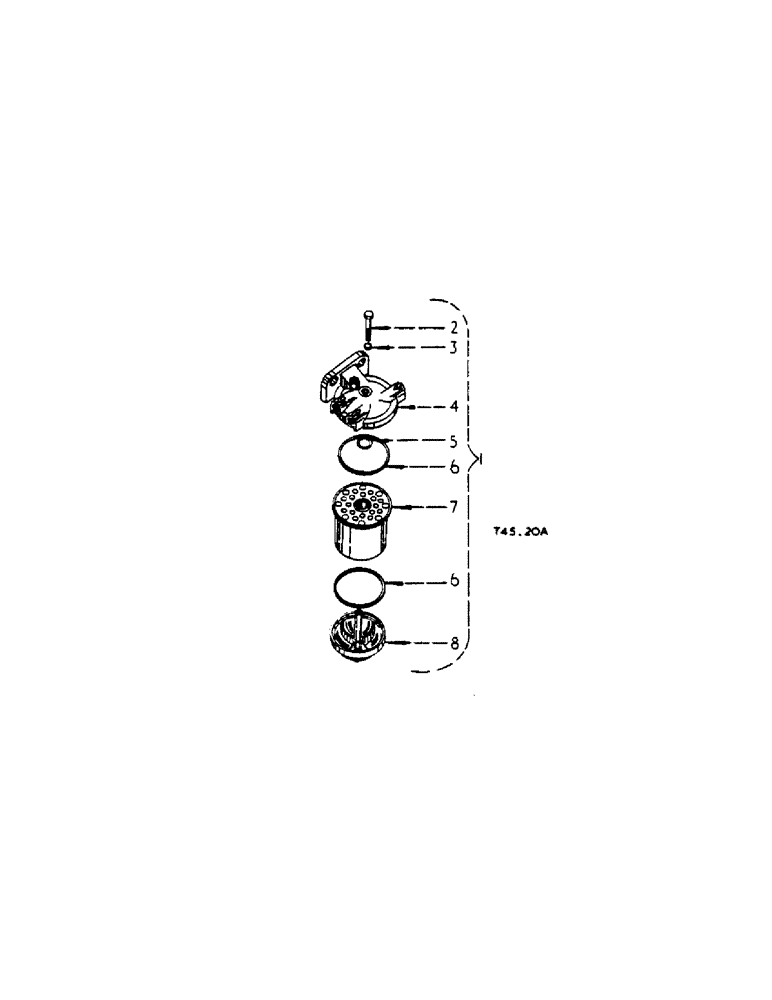

Запчасти Case IH 364 (1-12) - FUEL, FILTER ASSEMBLY (01) - ENGINE

1

3043645R91

FILTER CARTRIDGE

FILTER, fuel, CPTE., order filter 3117033R91 w/plug 3117735R1 and washer 3070777R1, comprising, Includes: Ref. 2 - 8

1шт.

2

3070771R2

BOLT

centre

1шт.

3

3044504R1

WASHER

centre bolt

1шт.

4

3111726R1

CYLINDER HEAD

HEAD, filter, order filter 3117033R91 w/plug 3117735R1 and washer 3070777R1

1шт.

5

3044505R1

SEAL

RING, element seal

1шт.

6

3105001R1

SEAL

head and base sealing

2шт.

7

3044506R93

FILTER, FUEL

ELEMENT, assy

1шт.

8

3048796R91

BASE

and stud, filter, assy

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
