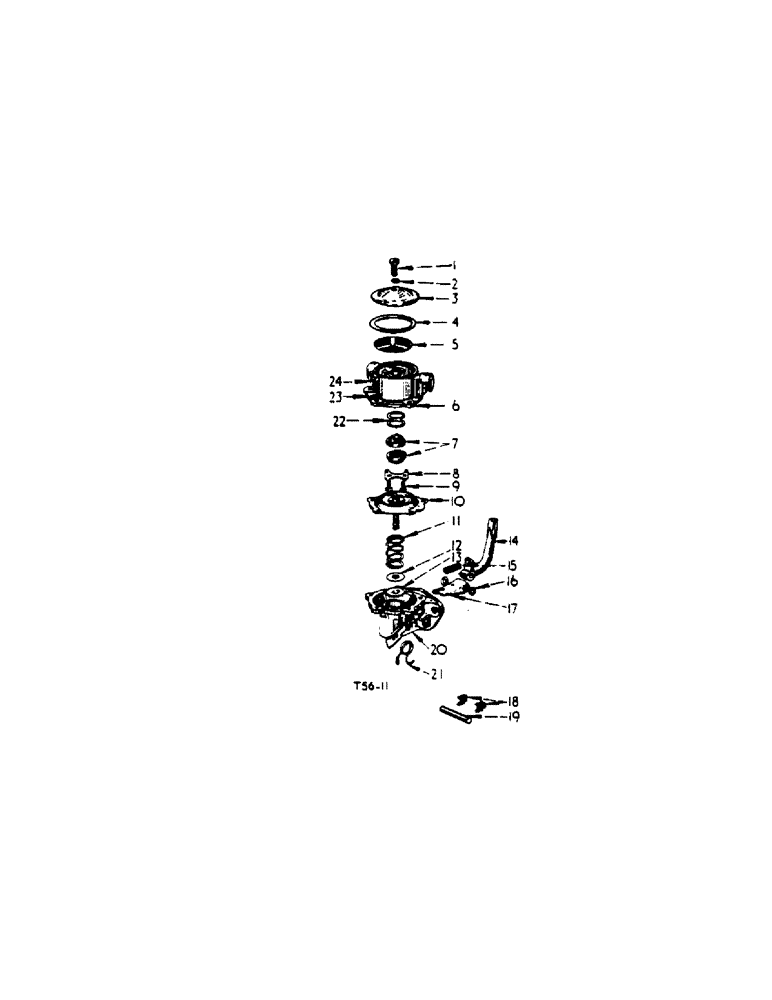

Запчасти Case IH 364 (1-12[A]) - FUEL FEED PUMP (01) - ENGINE

708294R93

PUMP

fuel feed, comprising, Includes: Ref. 1 - 24, FUEL PUMP CURRENTLY BEING FURNISHED WILL WORK ONLY IN APPLICATIONS WHERE THERE IS NOT A POWER STEERING PUMP OR AN UNDERSLUNG MUFFLER. FOR THESE APPLICATIONS, DEALER MUST REPAIR THE OLD PUMP AS SHOWN IN

1шт.

1

702953R1

SCREW

filter cover

1шт.

2

3044511R1

GASKET

filter cover screw

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

Part of First Aid Repair Kit, P/N 3066540R91

1шт.

3

3044512R1

COVER

filter

1шт.

4

3044518R1

GASKET

filter cover end

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

Part of First Aid Repair Kit, P/N 3066540R91

1шт.

5

3044513R1

FILTER SCREEN

SCREEN

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

6

3105122R91

COVER

assy.

1шт.

7

702959R91

VALVE

assy.

2шт.

Part of Repair Kit, P/N 3066610R92

1шт.

Part of First Aid Repair Kit, P/N 3066540R91

1шт.

8

702960R1

RETAINER

valve

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

9

702961R1

SCREW

2шт.

Part of Repair Kit, P/N 3066610R92

1шт.

10

3066607R91

DIAPHRAGM

assy.

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

Part of First Aid Repair Kit, P/N 3066540R91

1шт.

11

708954R1

SPRING

diaphragm

1шт.

12

3072671R1

WASHER

oil seal

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

Part of First Aid Repair Kit, P/N 3066540R91

1шт.

13

3072672R1

SEALING WASHER

OIL SEAL

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

Part of First Aid Repair Kit, P/N 3066540R91

1шт.

14

3044517R1

ARM

rokcer

1шт.

15

708956R1

SPRING

rocker arm

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

16

708957R1

WASHER

rocker arm pin

2шт.

Part of Repair Kit, P/N 3066610R92

1шт.

17

708963R1

LINK

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

18

3044516R1

RETAINER

rocker arm pin

2шт.

Part of Repair Kit, P/N 3066610R92

1шт.

19

3044515R1

PIN

rocker arm

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

20

3044519R91

COVER ASSY

BODY AND HAND PRIMER, assy.

1шт.

21

3044520R1

SPRING

priming lever

1шт.

22

3065032R1

GASKET, valve

1шт.

Part of Repair Kit, P/N 3066610R92

1шт.

Part of First Aid Repair Kit, P/N 3066540R91

1шт.

23

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

24

132105

SCREW,Sl Fil Hd, #10 - 32 x 3/8"

cover sltd., fill. hd. no. 10 UNF x 3/8"

5шт.

3063872R1

BOLT

12 point ring, 5/16" x 3/4"

2шт.

3066610R92

KIT

repair, less rocker arms, Includes: Ref. 2, 4, 5, 7 - 10, 12, 13, 15 - 19 and 22

1шт.

3066540R91

STRIPPER PACKAGE

KIT, first aid repair, BD-17, Includes: Ref. 2, 4, 7, 10, 12, 13 and 22

1шт.

3044458R91

SPRING

PRIMER, parts set

1шт.

3043370R1

GASKET

feed pump

1шт.

3061658R1

GASKET

feed pump

1шт.
