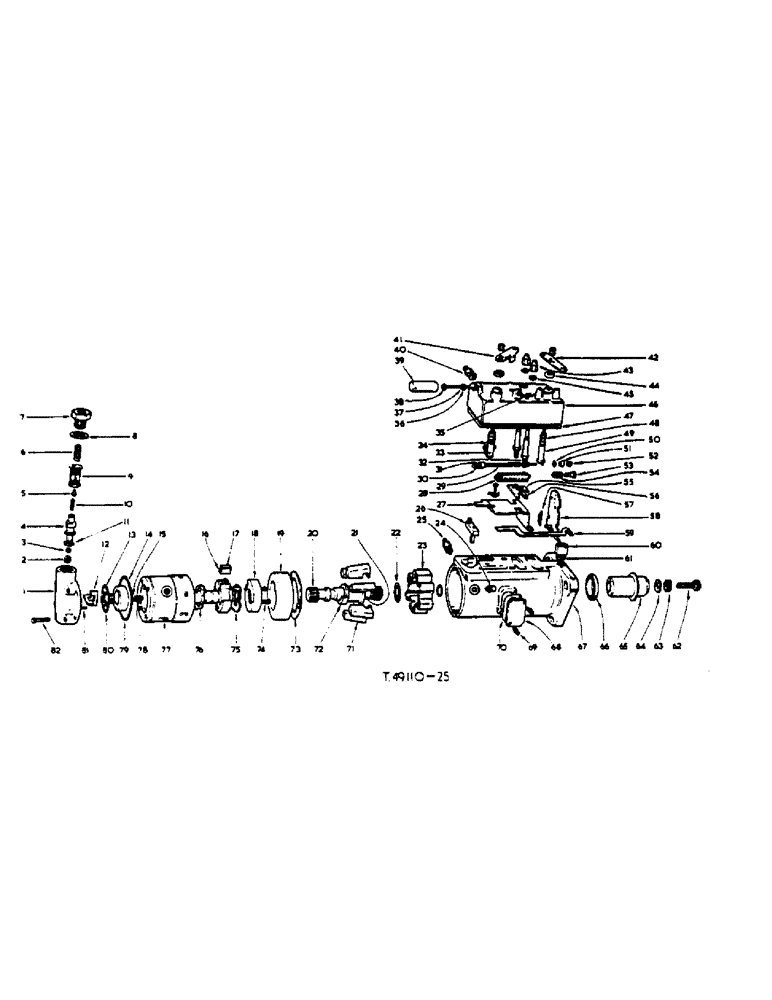

Запчасти Case IH 364 (1-10) - D.P.A. FUEL INJECTION PUMP (01) - ENGINE

3044494R92

FUEL INJECTION PUMP

D.P.A. FUEL INJECTION PUMP (clockwise rotation)

1шт.

Group index in the front of the catalogue

1шт.

3061083R91

FUEL INJECTION PUMP

D.P.A. FUEL INJECTION PUMP, high altitude

1шт.

Separate group indexes to units

1шт.

1

3110089R91

PLATE

end, clockwise rotation

1шт.

2

795945R1

SPRING

piston retaining

1шт.

3

795946R1

PISTON

regulating

1шт.

4

3072492R1

SLEEVE

regulating

1шт.

5

3072493R1

PLUG, regulating

1шт.

6

795952R1

SPRING

retaining sleeve

1шт.

7

3043083R1

CONNECTOR, ELEC

CONNECTION, inlet

1шт.

8

3105137R1

WASHER

inlet

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

9

3043084R1

FILTER

1шт.

10

3072495R1

SPRING

regulating

1шт.

11

795948R1

WASHER

sleeve

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

12

3043086R1

BLADE

transfer pump

2шт.

13

3069749R1

RING

SEAL, transfer

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

14

795965R1

RING

SEAL, distributor head

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

15

795963R1

SCREW, plugging

1шт.

16

795977R1

NO LONGER SERVICED

SHOE, roller

2шт.

17

795976R1

ROLLER

2шт.

18

3072511R1

PLATE

drive

1шт.

19

3072513R1

RING

cam

1шт.

3072514R1

SCREW

cam locating

1шт.

20

3072518R1

SHAFT, drive

1шт.

21

3072519R1

SEAL

drive shaft

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

22

3110449R1

WASHER

thrust, opt.

1шт.

895950H1

THRUST WASHER

thrust, opt.

1шт.

23

3072516R1

RETAINER

weights

1шт.

24

795970R1

BOLT,Locking, 5/16" - 24 x 1/2"

SCREW, head locking

1шт.

3043089R1

WASHER

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

25

796048R91

SCREW,Lock

assy., head vent

1шт.

3069751R1

SCREW

head vented

1шт.

3069752R1

SCREW

vent

1шт.

3043089R1

WASHER

head vent

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

26

895980H1

VALVE

metering

1шт.

26

384789R1

VALVE

metering (oversize)

1шт.

27

895968H1

BRACKET, control

1шт.

895969H1

SCREW

bracket

1шт.

3109745R1

WASHER

tab

1шт.

28

3072523R1

SPRING

governor

1шт.

29

895978H1

SPRING

linkage

1шт.

30

895977H1

HOOK, linkage

1шт.

31

895979H1

RETAINER, linkage

1шт.

32

895971H1

STUD

control cover

2шт.

33

895984H1

SHAFT

throttle

1шт.

3105138R1

NUT

1шт.

705380R1

WASHER, shakeproof

1шт.

34

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

SEAL

2шт.

35

3105139R1

WASHER

2шт.

36

(Not used)

1шт.

37

3105138R1

NUT

screw

3шт.

38

3043097R1

ADJUSTMENT SCREW,M10 x 32 x 35mm

SCREW, adjusting

2шт.

39

3064263R1

SLEEVE

locking

1шт.

40

3069753R91

SCREW

assy. vent

1шт.

3069751R91

SCREW, vent body

1шт.

3069752R1

SCREW

vent

1шт.

3043100R1

WASHER

vent body

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

41

3043104R1

ARM

throttle

1шт.

42

3043103R1

LEVER

shut-off

1шт.

43

3043101R1

NUT

stud

2шт.

44

895983H1

CAP, dust

2шт.

45

3043102R1

SEALING WASHER

stud

2шт.

Part of Gasket Package, P/N 3073962R1

1шт.

46

3072525R1

COVER

control

1шт.

47

895963H1

GASKET

housing

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

48

796020R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

SEAL

2шт.

Part of Gasket Package, P/N 3073962R1

1шт.

49

895982H1

SHAFT, shut-off

1шт.

3105138R1

NUT

1шт.

705380R1

WASHER

1шт.

50

895976H1

WASHER, linkage

1шт.

51

895975H1

WASHER

pivot ball

1шт.

895974H1

WASHER

1шт.

52

895972H1

NUT, linkage

1шт.

53

895987H1

GUIDE

idling spring

1шт.

54

3072524R1

SPRING

idling

1шт.

55

895967H1

WASHER

tab

1шт.

56

895966H1

PLATE

keep

1шт.

57

895965H1

SPRING

governor arm

1шт.

58

895964H1

ARM, governor

1шт.

59

895981H1

BAR

shut-off

1шт.

60

3043107R1

CONNECTOR, ELEC

CONNECTION, drain

1шт.

61

3043093R1

WASHER

drain connection

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

62

895956H2

SCREW

drive shaft

1шт.

63

3072520R1

WASHER

spring

1шт.

Group index in the front of the catalogue

1шт.

63

895957H1

SPRING WASHER

WASHER, spring

1шт.

Separate group indexes to units

1шт.

64

895958H1

WASHER

support

1шт.

65

3072521R1

HUB CAP

HUB, drive

1шт.

66

895960H1

SEAL

drive hub

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

67

3072522R1

HOUSING

pump

1шт.

68

3043109R1

PLATE

cover

1шт.

69

3043111R1

SCREW

cover plate

2шт.

705380R1

WASHER, shakeproof

2шт.

70

3043110R1

GASKET

cover plate

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

71

895947R1

WEIGHT, governor

6шт.

72

3072517R1

SLEEVE

thrust

1шт.

73

RING, timing (NSS)

1шт.

74

3072512R1

SCREW

drive plate

1шт.

Group index in the front of the catalogue

1шт.

74

795980R1

DRIVE SCREW,12 Pt Serr Flg, 5/16" - 24 x 25.50mm

drive plate

1шт.

Separate group indexes to units

1шт.

75

3072510R1

KNOB

PLATE, adjusting tap

1шт.

76

3072499R1

PLATE ASSY.

PLATE, adjusting, bottom

1шт.

77

3072496R1

HEAD

AND ROTOR, assy

1шт.

78

795964R1

WASHER

screw

1шт.

79

795960R1

SLEEVE

LINER, transfer, pump

1шт.

Group index in the front of the catalogue

1шт.

80

3072526R1

ROTOR

transfer pump

1шт.

81

795943R1

PIN

locating

1шт.

82

3110088R1

SCREW

end plate

4шт.

795966R1

BOLT

banjo, long screwed

2шт.

3043091R1

BOLT

banjo, short screwed

1шт.

3043094R1

CONNECTOR, ELEC

CONNECTION, radial

1шт.

3025562R1

NUT, delivery union

4шт.

3072497R1

SCREW

head locating

1шт.

3043090R1

STUD

fuel connection

3шт.

3043093R1

WASHER

connection

7шт.

3072498R1

WASHER

locating screw

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

3025563R1

WASHER

delivery union

4шт.

3073962R1

PACKAGE

gasket, consists of items

1шт.

Part of Gasket Package, P/N 3073962R1

1шт.

(Not serviced separately)

1шт.
