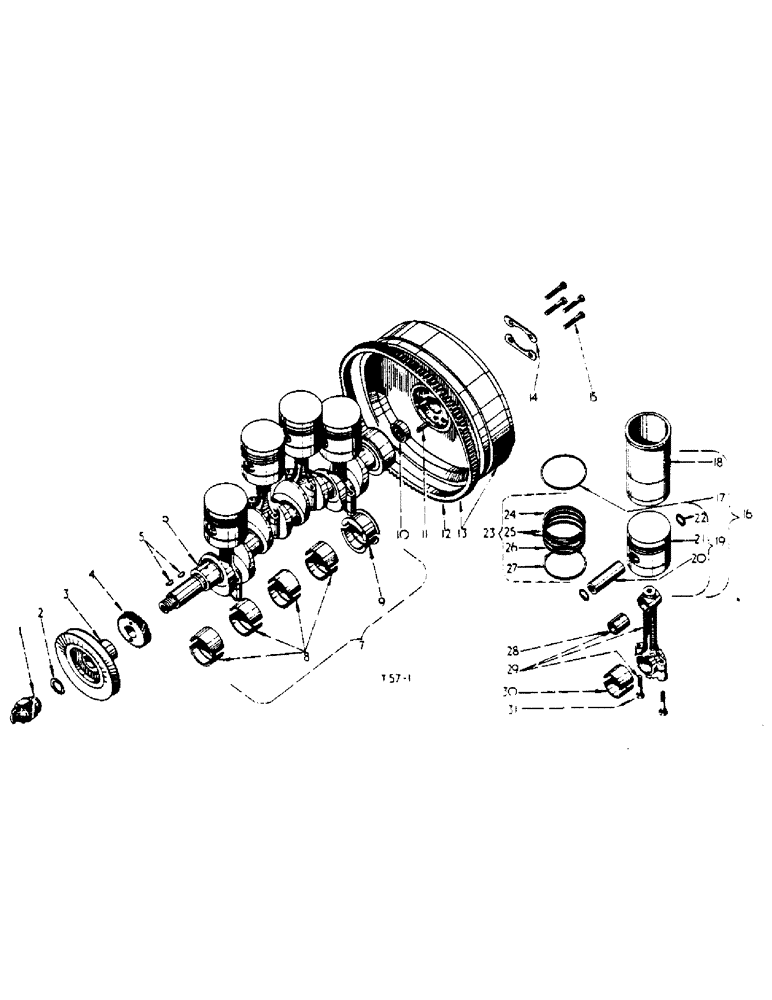

Запчасти Case IH 364 (1-07) - CRANKSHAFT, FLYWHEEL, CONNECTING RODS AND PISTONS (01) - ENGINE

1

3107767R1

TINE

NUT, starting crank

1шт.

1

3046883R1

NUT, fan drive pulley (Canadian market)

1шт.

2

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

3

3046391R2

PULLEY

fan drive (Canadian market)

1шт.

3

708286R1

PULLEY

fan drive

1шт.

4

703865R1

GEAR

PINION, crankshaft, 33 T

1шт.

5

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

crankshaft pinion (1 reqd for Canadian market)

2шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, CPTE., standard, w/two pin 214550D, order 311995R91 (NSS)

1шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, CPTE., .015" undersize, w/two pin 24550D, order 3067471R91 (NSS)

1шт.

6

NSS

NOT SOLD SEPARAT

CRANKSHAFT, CPTE., .030" undersize, w/two pin 24550D, order 3110996R91 (NSS)

1шт.

708912R91

CRANKSHAFT BEARING

SET, crankshaft bearing std., comprising (1) bearing 708910R91, (4) bearing 3064523R11

1шт.

7

708914R91

CRANKSHAFT BEARING

SET, crankshaft bearing, .015" undersize, comprising (1) bearing 708915R91, (4) bearing 3064525R11

1шт.

7

708913R91

CRANKSHAFT BEARING

SET, crankshaft bearing, .030" undersize, comprising (1) bearing 708911R91, (4) bearing 3064524R11

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, crankshaft, front and centre, two halves standard

4шт.

8

3064525R11

BEARING LINER

BEARING, crankshaft, front and centre, two halves .015 undersize

1шт.

8

3064524R11

BEARING LINER

BEARING, crankshaft, front and centre, two halves .030 undersize

1шт.

9

708910R91

BEARING ASSY

BEARING, crankshaft, rear, two halves standard

1шт.

9

708915R91

BEARING ASSY

BEARING, crankshaft, rear, two halves .015 undersize

1шт.

9

708911R91

BEARING ASSY

BEARING, crankshaft, rear, two halves, .030 undersize

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot, Fischer

1шт.

10

751846R93

BALL BEARING

clutch pilot, R & M opt.

1шт.

10

751848R93

NO LONGER SERVICED

BEARING, clutch pilot, Hoffman

1шт.

10

751847R93

BALL BEARING

clutch pilot, Skefco

1шт.

11

24550D

PIN

flywheel dowel

1шт.

11

3066811R1

PIN, flywheel dowel for O.S.D. crankshafts

1шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3043823R11

FLYWHEEL

w/gear 704436R1 and two pin 141215 STD

1шт.

Variations of transmission builds includes flywheel (see attachments)

1шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

3044478R94

PISTON ASSY.

SLEEVES AND PISTONS, set w/four sleeves and pistons 3044479R94

1шт.

16

3044479R94

PISTON & RINGS KIT

SLEEVE AND PISTON, CPTE., comprising (1) piston 3044480R94, (1) ring 704100R1, (1) sleeve 3044481R3

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, cylinder sleeve packing

4шт.

18

3044481R3

LINER, ENGINE CYLIND

SLEEVE, cylinder

4шт.

19

3044480R94

PISTON

assy., comprising (1) pin 3044476R1, (1) piston 3044486R3 (1) ring (NSS), (2) ring (NSS), (2) ring (NSS), (1) retainer 704195R1

1шт.

20

3044476R1

PIN

piston

4шт.

20

3044477R1

PIN, piston, .005 oversize

1шт.

21

3044486R3

PISTON

4шт.

22

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

23

3114778R91

PISTON RING SET

SET, piston ring, comprising (1) ring (NSS), (2) ring (NSS), (2) ring (NSS)

4шт.

24

NSS

NOT SOLD SEPARAT

RING, compression piston top (NSS)

1шт.

25

NSS

NOT SOLD SEPARAT

RING, compression, piston (NSS)

2шт.

26

NSS

NOT SOLD SEPARAT

RING, oil control, piston, upper (NSS)

1шт.

27

NSS

NOT SOLD SEPARAT

RING, oil control, piston, lower (NSS)

1шт.

28

711045R1

BUSHING

piston pin, opt.

4шт.

28

3043611R1

BUSHING

piston pin, opt.

4шт.

29

3061216R91

CONNECTING ROD

SET, connecting rod w/four rod 3061214R91

1шт.

29

704089R91

CONNECTING ROD

SET, connecting rod, order 3061216R91

1шт.

29

3061214R91

PITMAN ASSY.

ROD, assy., connecting, comprising (2) bolt 3043216R1, (1) bush 711045R1, (1) cap (NSS), (1) rod (NSS)

4шт.

30

3070536R11

BEARING

CPTE., connecting rod, two halves standard

4шт.

30

3070538R11

JOURNAL

BEARING, CPTE., connecting rod, two halves .015" undersize

1шт.

30

3070537R11

BEARING

CPTE., connecting rod, two halves .030" undersize

1шт.

31

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

1шт.

3070546R91

BEARING LINER

SET, connecting rod bearing, standard w/four bearing 3070536R11

1шт.

3070539R91

BEARING LINER

SET, connecting rod bearing, .015" undersize w/four bearing 3070538R11

1шт.

3070547R91

CRANKSHAFT BEARING

SET, connecting rod bearing, .030" undersize w/four bearing 3070537R11

1шт.

141215

PIN,5/16" x 1/2"

used w/flywheel

2шт.

3110995R91

CRANKSHAFT

PACKAGE, service, crankshaft, standard, comprising (1) crankshaft (NSS), (1) set 708912R91, (1) set 3070546R91

1шт.

3067471R91

PACKAGE, service, crankshaft, .015" undersize, comprising (1) crankshaft (NSS), (1) set 708914R91, (1) set 3070539R91

1шт.

3110996R91

PACKAGE

service, crankshaft, .030" undersize, comprising (1) crankshaft (NSS), (1) set 708913R91, (1) set 3070547R91

1шт.
