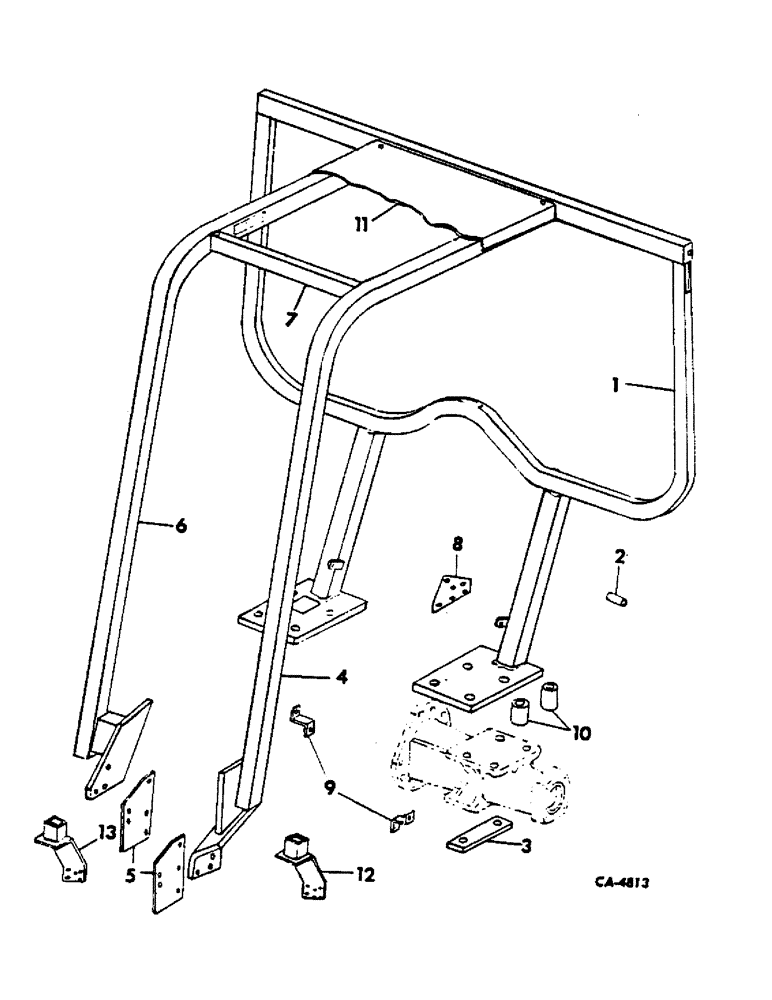

Запчасти Case IH 364 (6-87) - ATTACHMENTS, ROLL OVER PROTECTIVE FRAME AND SEAT BELT Attachments

66083C92

PROTECTIVE FRAME ATTACHMENT

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY, rear, not serviced separately order protective frame att. 66083C92

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

528265R1

POST, rear lamp

1шт.

380575R2

SCREW,Hex, 5/8" - 11 x 8.80", Gr 8

4шт.

270366C1

WASHER

4шт.

3

528267R1

STRIP, spacer

2шт.

21434R1

NUT,5/8"-11, G8

5/8-11 C-Z hex.

4шт.

4

NSS

NOT SOLD SEPARAT

LEG ASSY, front left, not serviced separately order protective frame att. 66083C92

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 type 4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

5

528273R1

PLATE, spacer

2шт.

6

NSS

NOT SOLD SEPARAT

LEG ASSY, front right, not serviced separately order protective frame att. 66083C92

1шт.

20611R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 type 4 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

7

NSS

NOT SOLD SEPARAT

BAR, front cross, not serviced separately order protective frame att. 66083C92

1шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 type 8 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 znd hex. type 8

4шт.

8

117729C1

PLATE, handbrake lever mounting

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

125-10003

NUT,3/8"-16, G5, LH

3/8-16 hex.

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

66088C1

FILLER, fender

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051 znd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

10

66089C1

SPACER, fender

4шт.

22297R1

BOLT

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

4шт.

11

66797C1

TOP

CANOPY

1шт.

432487

HOLE PLUG BUTTON,11/16"

PLUG, 11/16 button

2шт.

21759R1

WASHER

21/32 x 2 x 11 ga

4шт.

12

NSS

NOT SOLD SEPARAT

BRACKET ASSY, mounting left hand, tractors equipped w/1850 loader order completing package 68410C91

1шт.

20906R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap type 8

4шт.

21574R1

WASHER, 5/8 znd med lock

4шт.

21434R1

NUT,5/8"-11, G8

5/8-11 znd hex. tyoe 8

4шт.

13

NSS

NOT SOLD SEPARAT

BRACKET ASSY, mounting right hand, tractors equipped w/1850 loader order completing package 68410C91

1шт.

20537R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap type 8

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

529458R1

SAFETY BELT

SAFETY BELT

1шт.

80305R1

BOLT,Hex, 7/16" - 20 x 1 1/4", Gr 8

SCREW, 7/16-20 x 1-1/4 type 4 PHC hex-hd cap

2шт.

456939

NUT,7/16"-20, G8

7/16-20 hex.

2шт.

65982C1

DECAL

PRODUCT GRAPHIC, caution instruction

1шт.

70571C1

DECAL

PRODUCT GRAPHIC, rops caution instr.

1шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt and rops caution instructions

1шт.

142862

SCREW,Type U Metallic, Rnd Hd, #4 x 1/4"

4 x 1/4 rd-hd blunt metal drive

2шт.
