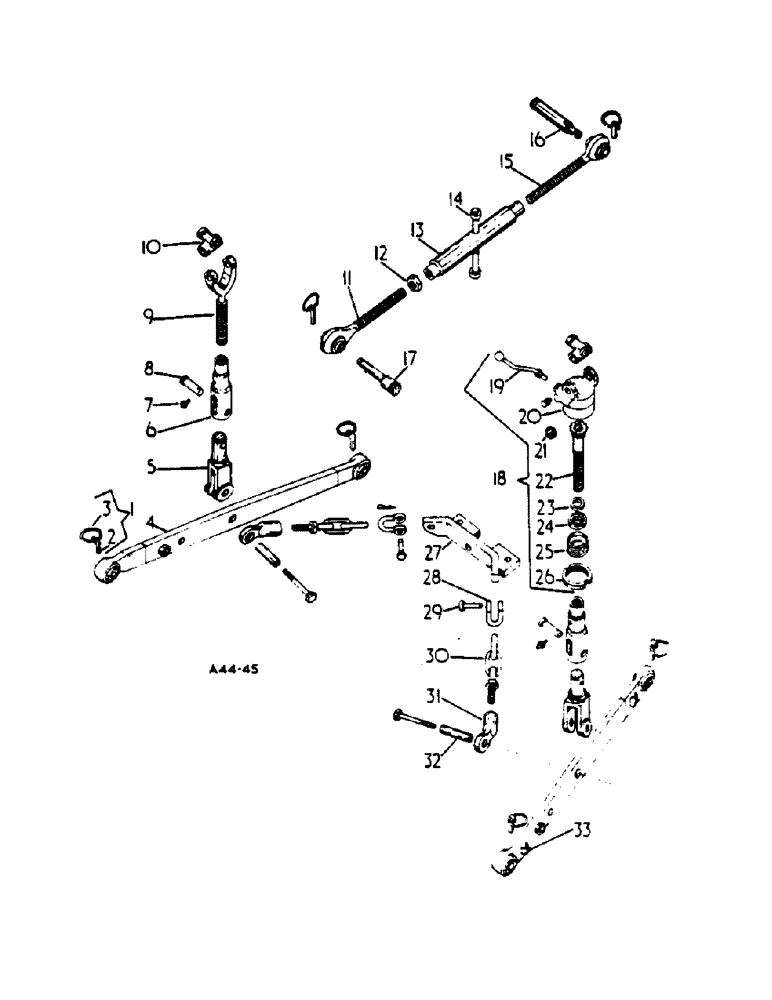

Запчасти Case IH 364 (6-85) - ATTACHMENTS, DRAWBAR ATTACHMENT Attachments

3112780R91

ATTACHMENT, drawbar

1шт.

1

3111194R1

BAR

DRAWBAR, swinging (replace 311194R1)

1шт.

2

3071327R91

FRAME

drawbar, CPTE.

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex. hd. 3/4" x 2-1/4"

2шт.

220081

NUT

hex. 3/4"

2шт.

3

3071789R2

PIN

stop swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

4

3110213R91

PLATE

drawbar, support CPTE., L.H.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex. hd. 3/4" x 1-3/8"

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

3шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

hex. hd. 3/4" x 1-1/8"

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

hex. hd. 3/4" x 1-3/4"

1шт.

5

3067210R1

CLIP

spring

2шт.

6

704058R1

PIN

drawbar frame

1шт.

7

704212R91

COTTER PIN

PIN, implement, cotter

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, clip, implement cotter

1шт.

8

3110214R91

PLATE

drawbar support CPTE., R.H.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex. hd. 3/4" x 1-3/8"

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

3шт.

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

hex. hd. 3/4" x 1-1/8"

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

hex. hd. 3/4" x 1-3/4"

1шт.
