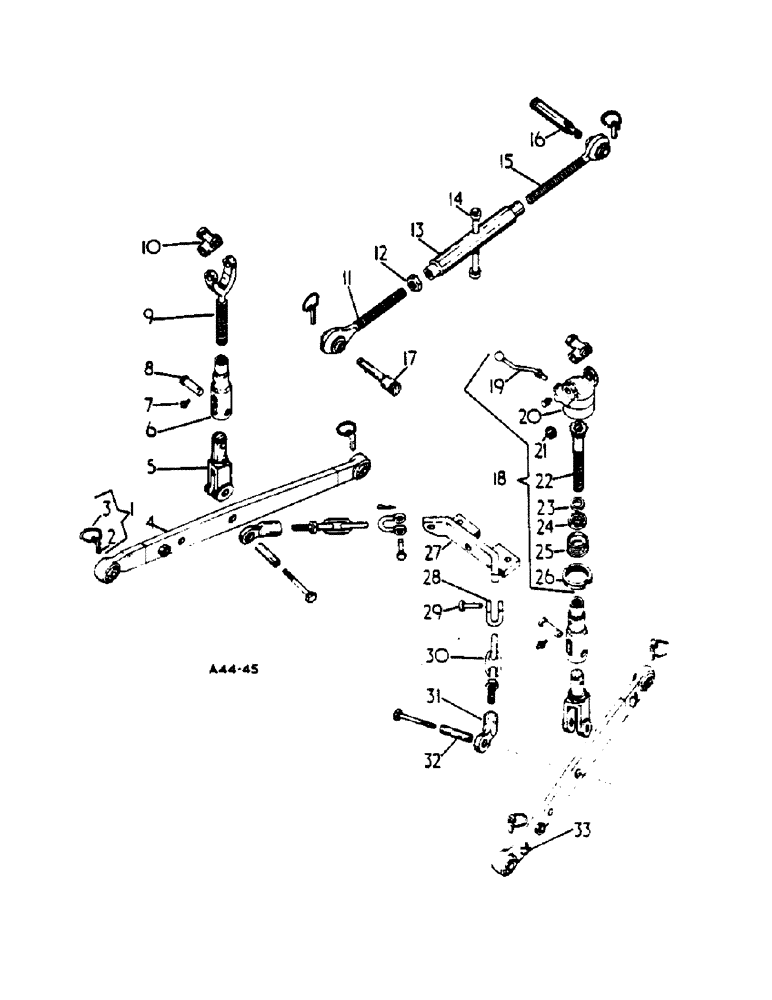

Запчасти Case IH 364 (6-83) - ATTACHMENTS, THREE POINT LINKAGE ATTACHMENT Attachments

3069515R91

ATTACHMENT, three point linkage

1шт.

For vary touch lift, when swinging draw bar is also fitted, include adjustable check chains.

1шт.

3044339R91

LINK

top CPTE., comprising: (1) eyebolt 704177R21, (1) eyebolt 704178R21, (1) handle 3074660R11, (1) nut 426899, (1) turnbuckle 3044340R1

1шт.

1

517758R91

SPLIT PIN/SAFETY PIN

COTTER, assy. opt.

6шт.

1

704212R91

COTTER PIN

COTTER, w/ring 704187R1 and cotter 700531R1 CPTE., implement

6шт.

2

700531R1

NO LONGER SERVICED

COTTER, implement

6шт.

3

704187R1

LOCKING RING

RING, clip implement cotter

2шт.

4

3109308R91

SWEEP

LINK, lower, assy w/two holders 3074662R1

2шт.

5

3044352R1

FORK

lift rod

2шт.

6

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

telescoping lift rod

2шт.

7

3071482R1

PIN

std hd 3/4" x 2-3/8"

2шт.

720631R1

LINCH PIN

CLIP, spring, opt.

2шт.

520175R1

CLIP

spring, opt.

2шт.

Q3501

WASHER

25/32 x 1-1/4 x 11 ga

2шт.

8

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

9

3044350R1

ROD

lift upper half L.H.

1шт.

10

704207R3

PIVOT

SWIVEL, lift rod

2шт.

3069069R1

PIN

5/8" x 3-3/4" std hd.

1шт.

3044309R1

PIN

special std hd

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

11

704178R21

BOLT

EYEBOLT, top link assy, cat. 1

1шт.

12

426899

NUT,Jam, 1"-8, G5

jam, hex. 1", cad. pltd

1шт.

13

3044340R1

BUCKLE

TURNBUCKLE, top link

1шт.

14

3074660R11

HANDLE

CPTE.

1шт.

15

704177R21

BOLT

EYEBOLT, top link assy, cat. 11

1шт.

16

3074756R1

PIN

top link, cat. 11

1шт.

3074163R1

CIRCLIP

1шт.

17

3074815R1

PIN

top link, cat. 1

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

18

3069056R92

ROD

CPTE., lift leveling, comprising

1шт.

19

3069062R2

CRANK

levelling control CPTE.

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

PIN - grooved, 3/16" x 3/4", Type A

1шт.

20

3069057R1

BOX

levelling gear

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Opt. 1/8"-27 x .66 lg

1шт.

21

3069063R1

GEAR

levelling box pinion

1шт.

22

3105188R1

ROD

AND GEAR, levelling

1шт.

23

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

levelling lift rod

1шт.

24

3044346R91

BALL BEARING

BEARING, 1" ball thrust, opt.

1шт.

3044347R91

THRUST BEARING

BEARING, 1" ball thrust, opt.

1шт.

3044348R91

BEARING, THRUST

BEARING, 1" ball thrust, opt.

1шт.

3068049R91

BALL BEARING

BEARING, 1" ball thrust, opt.

1шт.

25

3069064R1

BEARING

levelling rod

1шт.

26

3069065R1

LOCK NUT

levelling rod bearing lock

1шт.

27

3044329R91

BRACKET, CPTE., check chain

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

2шт.

28

3044357R1

STIRRUP

SHACKLE, dee

2шт.

29

6642

PIN

5/8" x 2-1/4" std hd

2шт.

720631R1

LINCH PIN

CLIP, spring

2шт.

30

3061991R91

CHAIN (AG)

CHAIN, assy check

2шт.

218443

NUT

3/4" hex jam

2шт.

31

3063457R1

ANCHOR

check chain

2шт.

3060311R2

BOLT

check chain

2шт.

120026R1

WASHER, 17/32" x 1-1/4" x 16 ga

2шт.

3040353R1

NUT

lock, 1/2"

1шт.

32

3044353R1

BUSHING

BUSH, lift rod

2шт.

704194R2

BUSHING

BUSH, lower link

2шт.

709307R92

BOLT

EYEBOLT, top link assy, cat. 1 end, comprising: (1) circlip 3074763R1, (1) cotter 704212R91, (1) eyebolt 704178R21, (1) pin 3074755R1, (1) nut 218445

1шт.

709308R92

BOLT

EYEBOLT, top link assy, cat. 11. end, comprising: (1) circlip 3074763R1, (1) cotter 704212R91, (1) eyebolt 704177R21, (1) pin 3074756R1

1шт.
