Запчасти Case IH 364 (6-79) - ATTACHMENTS, BOSTROM SUSPENSION SEAT Attachments

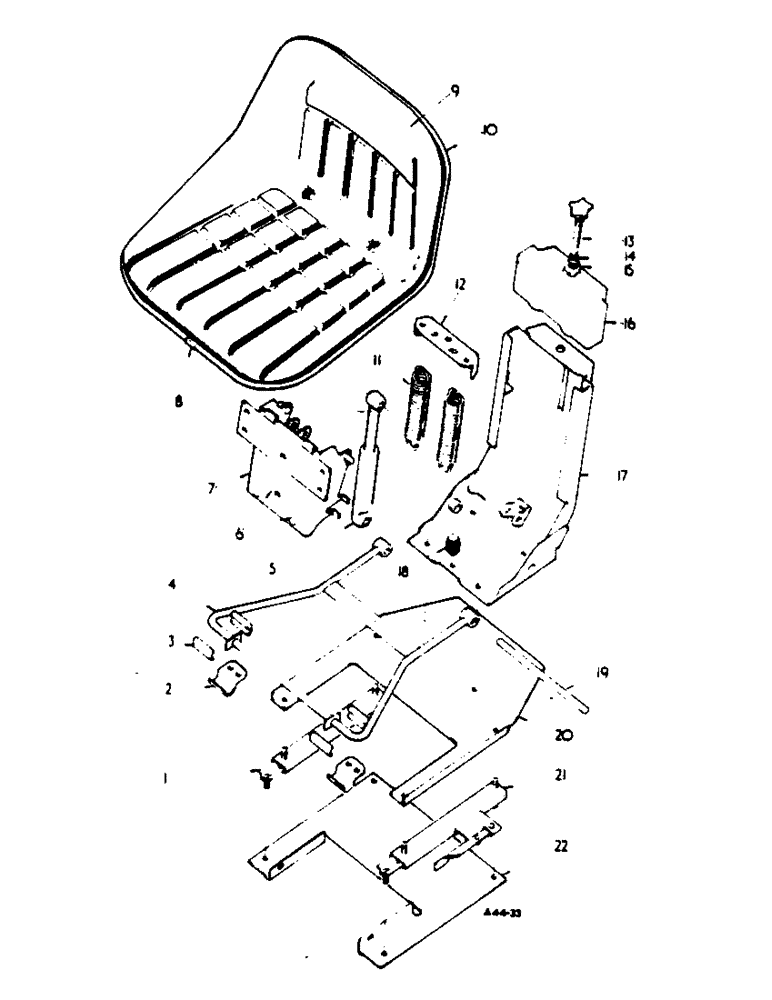

Схема запчастей Case IH 364 - (6-79) - ATTACHMENTS, BOSTROM SUSPENSION SEAT Attachments
17
21
18
10
9
12
14
4
19
2
8
1
13
3
16
15
20
11
6
7
22
5

Артикул

Название

Примечание

Количество

3112285R91

DRIVER SEAT

SEAT, CPTE., suspension baltic mk. 111.

1шт.

1

3070941R1

SLIDE

RAIL, slide, R.H.

1шт.

3112822R1

NUT

hex. 5/16"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

2

825204C1

RETAINER

bearing

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, hex. hd. 5/16" x 1/2"

4шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

825203C1

BUSHING

BEARING, half

4шт.

4

3112729R91

STABILIZER

sub-assy.

1шт.

5

825214C1

DAMPER

1шт.

825215C1

PIN

2шт.

3112728R1

SNAP RING

CIRCLIP, external "E" type 3/8"

4шт.

6

825213C1

ROLLER

2шт.

7

825212C1

CARRIER

CARRIAGE, weld assy

1шт.

8

825224C1

CLIP

flange

1шт.

9

3112734R1

CUSHION

SKIN AND FOAM, assy

1шт.

3112733R1

PAN

assy., seat weld

1шт.

825222C1

GROMMET

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, hex. hd. 5/16" x 1/2"

4шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

3112735R1

FLANGE, plastic, finisher

1шт.

11

825211C1

SPRING

tension

1шт.

12

825206C1

BRACKET

assy., weld

1шт.

13

525209C1

SCREW, assy., adjuster

1шт.

615029R1

WASHER

3/8" plain

1шт.

14

825210C1

COLLAR

1шт.

15

567833R91

THRUST BEARING

thrust

1шт.

16

825207C1

COVER

1шт.

17

3112719R91

BASE

assy., pedestal

1шт.

3112822R1

NUT

hex. 5/16"

4шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

18

825219C1

BUMPER

1шт.

3109720R1

SCREW

1/4" x 3/4"

1шт.

19

825218C1

SHAFT

1шт.

3112731R1

PIN

roll 5 x 20 dia.

1шт.

20

3112715R1

PLATE

mounting

1шт.

21

3070940R1

SLIDE

RAIL, slide L.H.

1шт.

3112822R1

NUT

hex. 5/16"

4шт.

106261

WASHER,1/4"

5/16" plain

4шт.

22

3112718R91

HINGE

assy., platform

1шт.

Выбрано товаров: 41
