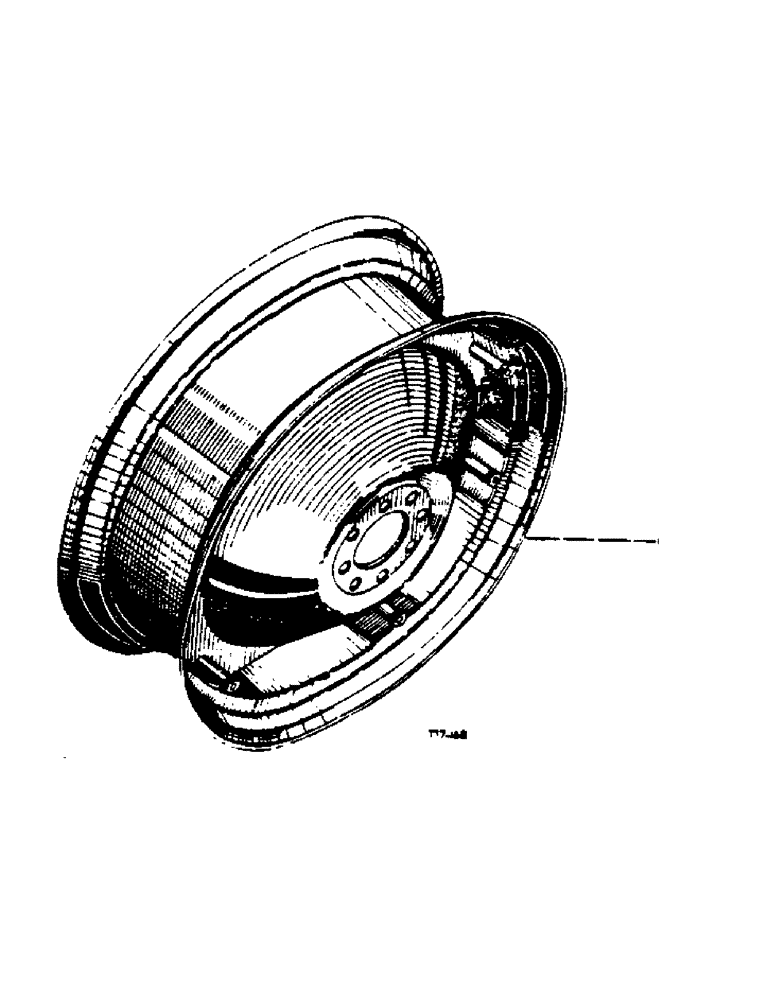

Запчасти Case IH 364 (6-67) - ATTACHMENTS, REAR WHEEL, TIRE AND TUBE ATTACHMENT Attachments

3069487R91

ATTACHMENT, rear wheel, tyre and tube, 12-24, agricultural, comprising:

1шт.

3049216R91

RIM

AND DISC, rear wheel, W12-24, comprising:

2шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

rear wheel rim

12шт.

3061824R1

DISC

rear wheel, agricultural

2шт.

703930R2

NUT

rear wheel rim bolt

12шт.

3061823R91

RIM

rear wheel

2шт.

406952R1

WASHER

rear wheel rim bolt

12шт.

3069488R91

ATTACHMENT, rear wheel, tyre and tube, industrial

1шт.

3049217R93

WHEEL ASSY.

DISC AND RIM, rear wheel W12-24, comprising:, rear wheel, tyre and tube attachment

2шт.

703992R1

WASHER

BOLT, rear wheel rim, tyre and tube attachment

6шт.

3061825R1

DISC

rear wheel, industrial, tyre and tube attachment

1шт.

703930R2

NUT

rear wheel rim bolt, tyre and tube attachment

6шт.

3072901R91

RIM

rear wheel, rear wheel, tyre and tube attachment

1шт.

400952R1

WASHER, rear wheel rim bolt, rear wheel, tyre and tube attachment

6шт.

3069484R91

ATTACHMENT, rear wheel pnue. tyre and rim 9 x 28, tube attachment

1шт.

3069485R91

ATTACHMENT, rear wheel pnue. tyre and rim 12 x 28, tube attachment

1шт.

3069489R91

ATTACHMENT, rear wheel pnue. tyre and rim 13 x 28, tube attachment

1шт.

1

3048867R91

WHEEL ASSY.

WHEEL, CPTE., rear, rim and disc W9 x 28, R.H., opt.

2шт.

1

3042291R92

RIM

WHEEL, CPTE., rear, rim and disc W9 x 28, R.H., opt.

2шт.

Comprising only (6) bot 406951R1, (1) disc 3042290R1, (6) nut 121358, (1) rim 703928R92, (6) washer 406952R1::1

1шт.

1

3068209R92

RIM

WHEEL, CPTE., rear, rim and disc W12 x 28, B2, comprising: (6) bolt 406951R1, (1) disc 3042290R1, (6) nut 121358, (1) rim 3070083R92, (6) washer 406952R1

1шт.

1

3068210R92

WHEEL ASSY

WHEEL, CPTE., rear, rim and disc W13 x 28, C2, comprising: (6) bolt 406951R1, (1) disc 3042290R1, (6) nut 121358, (1) rim 3070084R92, (6) washer 406952R1

1шт.

703929R1

BOLT,5/8" - 18 x 2 7/8"

nib bolt, rear wheel rim, .2

1шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

5/8" UNF, sq. nk

12шт.

3042290R1

DISC

rear wheel

2шт.

703930R2

NUT

rear wheel nib bolt

12шт.

425-1110

NUT,5/8"-18, G5

hex. 5/8" UNF, for sq. nk. bolt

12шт.

703928R92

RIM

CPTE., rear wheel, R.H.

2шт.

3070083R91

WHEEL

RIM, CPTE., rear wheel, L.H.

2шт.

3070084R91

WHEEL

RIM, CPTE., rear wheel

2шт.

406952R1

WASHER

rear wheel rim bolt

12шт.

3069471R91

ATTACHMENT

front wheel, use w/750-16 tyres

1шт.

751734R91

WHEEL ASSY.

WHEEL, front rim and disc 550F-16

1шт.
