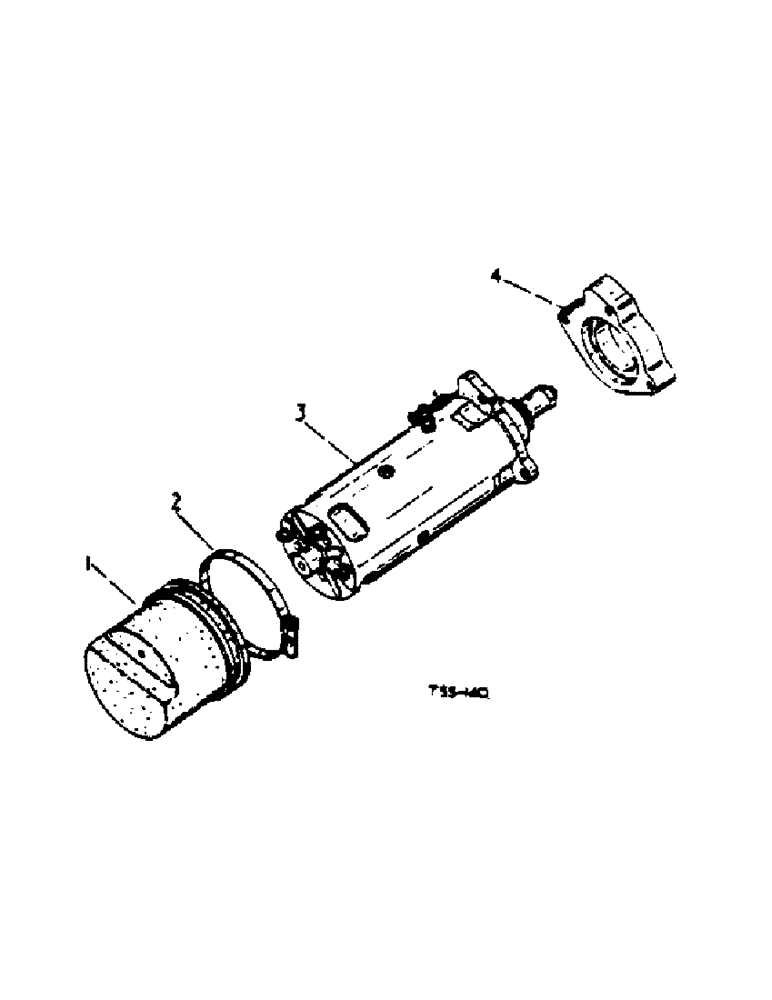

Запчасти Case IH 364 (6-61) - ATTACHMENTS, COLD STARTING ATTACHMENT Attachments

NSS

NOT SOLD SEPARAT

ATTACHMENT, cold starting, comprising: components, starter motor, see detail list

1шт.

NSS

NOT SOLD SEPARAT

COMPONENTS

1шт.

3062302R91

BREAKER

circuit

1шт.

426915

RETAINER

NUT, hex. mach. screw no. 8 x 36

2шт.

436714

SCREW, pan hd sltd. mach no. 8 x 1/2", 36 TPI

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

3066551R1

BOLT

battery hold down

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3066558R1

ELEMENT

ballast resistor, .040 ohms

1шт.

3111982R91

HARNESS

main cable

1шт.

703899R1

SPRING

WIRE, connecting no. 2 to no. 3 glow plug

1шт.

3065071R2

FASTENER

WIRE, connecting no. 1 glow, Serial Range: plug-earth

1шт.

703898R1

ELECTRICAL WIRE

WIRE, connecting no. 1 to no. 2 and no. 3 to no. 4 glow plug

1шт.

3109131R91

SWITCH

solenoid starter

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

no. 10-24 x 1/2 rd hd

1шт.

3112181R1

NUT

1шт.

705329R1

WASHER

2шт.

1

3064053R2

SLEEVE

SHEATH, protective, starter motor cold starting attachment

1шт.

2

708404R91

CLIP

jubilee 5, starter motor cold starting attachment

1шт.

3

3066553R92

STARTER MOTOR

MOTOR, CPTE., starter, 12 volt, see detail list, cold starting attachment

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

Starter motor cold starting attachment Hex, 3/8"-16 x 2 1/4", G5

3шт.

4

3066554R1

SPACER

starter motor, cold starting attachment

1шт.
