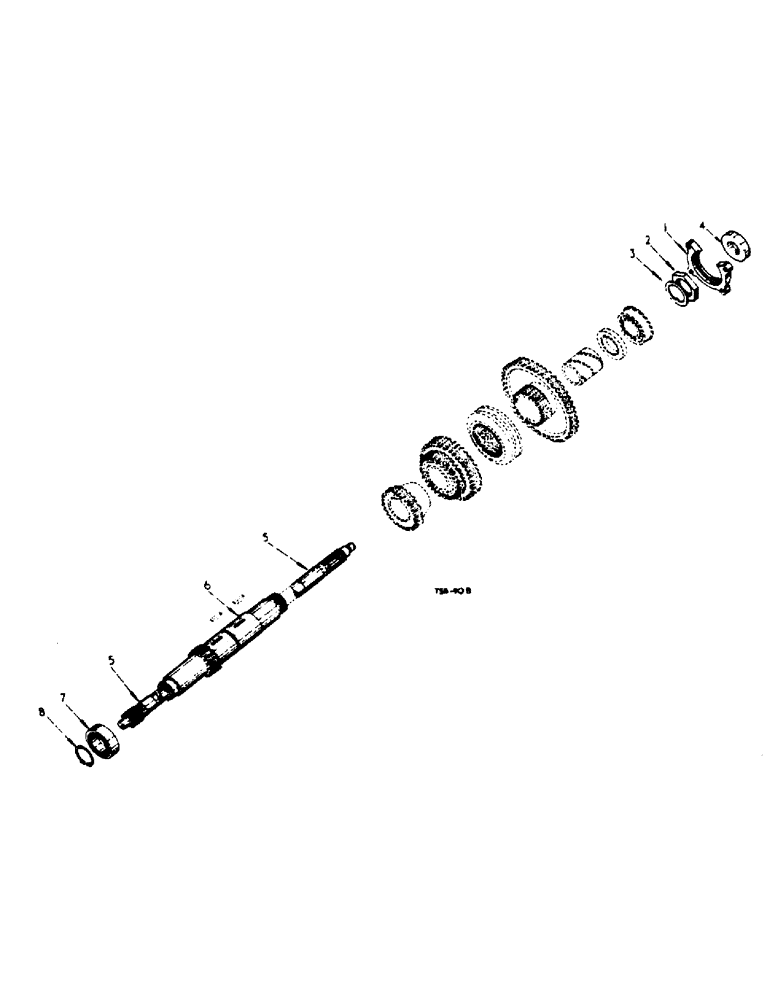

Запчасти Case IH 364 (6-51) - ATTACHMENTS, FULL FORWARD AND REVERSE ATTACHMENT, TRANSMISSION GEARS AND SHAFTS Attachments

1

3048705R1

RETAINER

front bearing, trans. countershaft

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex. hd.

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

751065R1

BEARING LOCK NUT

countershaft front bearing, lock

1шт.

3

751066R1

WASHER

countershaft front bearing, lock

1шт.

4

3048764R1

SLINGER

FLINGER, P.T.O. shaft, front, oil

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT, front P.T.O. (NSS)

1шт.

6

3043992R11

SHAFT

GEAR, w/bush 751161R1 trans. countershaft and 1st speed, CPTE.

1шт.

7

751063R91

BALL BEARING,50 mm ID x 80 mm OD x 19 mm

ball, trans. countershaft, rear, opt.

1шт.

7

3040830R91

BALL BEARING

BEARING, ball, trans. countershaft, rear, opt.

1шт.

7

3049757R91

BALL BEARING

BEARING, ball, trans. countershaft, rear, opt.

1шт.

8

751638R1

RING, SNAP

CIRCLIP, retaining, trans. countershaft rear bearing

1шт.

751161R1

BUSHING

BUSH, P.T.O. shaft

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, front P.T.O. shaft oil flinger set

2шт.

3048703R31

SHAFT

w/shaft, two screw 102569 and flinger 33048764R1 CPTE., front P.T.O.

1шт.
