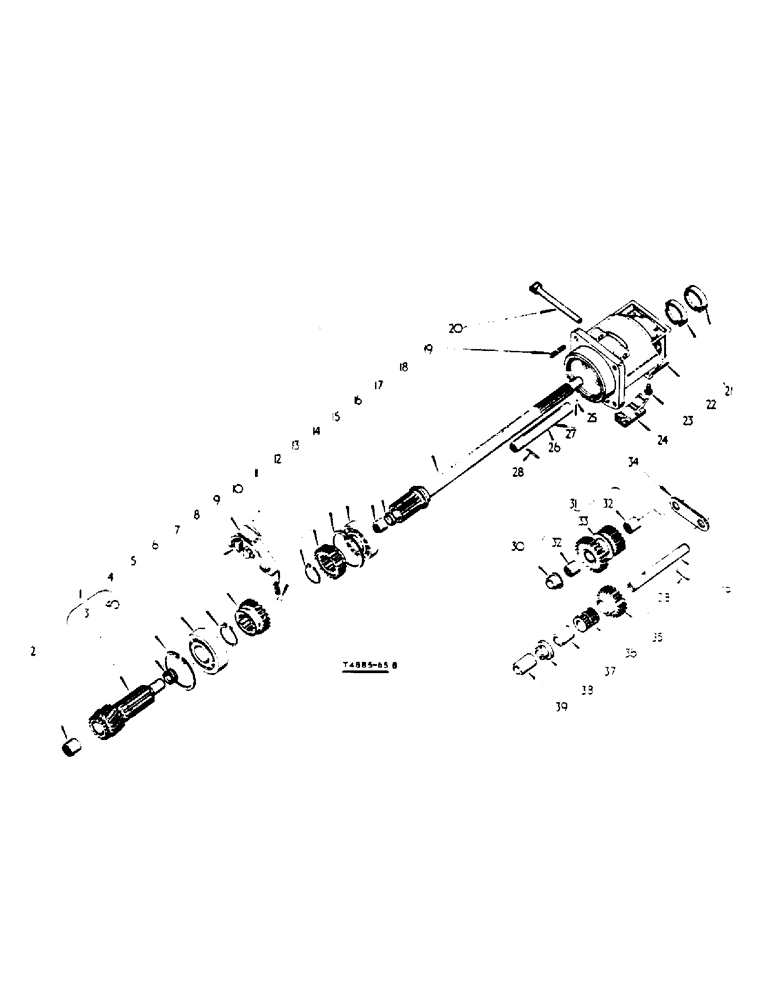

Запчасти Case IH 364 (6-48) - ATTACHMENTS, FULL FORWARD AND REVERSE ATTACHMENT, KEY TO UNITS Attachments

NSS

NOT SOLD SEPARAT

CLUTCH SHAFT GEAR HOUSING AND GEARS, tractors fitted w/dual clutch

1шт.

Group index in the front of the catalogue

1шт.

NSS

NOT SOLD SEPARAT

GEAR HOUSING AND GEARS, tractors fitted w/heavy duty single clutch

1шт.

Separate group indexes to units

1шт.

1

3073620R91

SHAFT

GEAR AND SHAFT, w/collar 3073619R1 CPTE driving trans

1шт.

2

3115488R1

NEEDLE BEARING

BEARING, pilot trans spline shaft, opt.

1шт.

2

321981R91

NEEDLE BEARING

pilot trans spline shaft, opt.

1шт.

2

3068951R91

NO LONGER SERVICED

BEARING, pilot trans spline shaft, opt.

1шт.

2

3069773R91

NEEDLE BEARING

BEARING, pilot trans spline shaft, opt.

1шт.

3068278R1

BEARING CUP,1.02" ID x 1.25" OD x 0.1"

pilot bearing distance piece

1шт.

3

3070706R2

SET

GEAR AND SHAFT, trans driving on order for R1 order shaft 3070706R2 w/ring 3111806R1

1шт.

4

751081R1

CLIP

CIRCLIP, trans driving shaft bearing retaining

1шт.

5

3048783R91

BEARING, ball rear trans driving shaft, opt.

1шт.

5

3048739R91

BEARING

ball rear trans driving shaft, opt.

1шт.

5

85660H

BEARING

ball rear trans driving shaft, opt.

1шт.

5

3048741R91

BALL BEARING

BEARING, ball rear trans driving shaft, opt.

1шт.

5

3063610R91

BALL BEARING

BEARING, ball rear trans driving shaft, opt.

1шт.

6

3048709R1

RING, SNAP

CIRCLIP, retaining trans driving shaft rear ball bearing up to B014609, B000826, B005820, B000502, B000783, B000587, B000515

1шт.

6

3119806R1

RETAINER

RING, retaining B014610 up, B000827, B005821, B000503, B000784, B000516, B000588

1шт.

7

3048714R3

GEAR

output

1шт.

8

3048731R1

SHOE

gear shifter fork

2шт.

9

NSS

NOT SOLD SEPARAT

FORK, gear shifter, order package 3067265R91

1шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

10

3072000R1

SPRING

poppet gear shifter rail

1шт.

11

3072884R1

BALL

13/32" dia. grade 2

1шт.

12

3048709R1

RING, SNAP

CIRCLIP, clutch shaft rear ball bearing retaining

1шт.

Group index in the front of the catalogue

1шт.

12

3048709R1

RING, SNAP

CIRCLIP, trans, and P.T.O. rear ball bearing retaining

1шт.

Separate group indexes to units

1шт.

13

3048711R1

GEAR

input

1шт.

14

751149R1

RING

CIRCLIP, clutch shaft rear ball bearing retaining

1шт.

Group index in the front of the catalogue

1шт.

14

751149R1

RING

CIRCLIP, trans. and P.T.O. rear ball bearing retaining

1шт.

Separate group indexes to units

1шт.

15

703644R91

BALL BEARING

BEARING, ball, clutch shaft rear

1шт.

Group index in the front of the catalogue

1шт.

15

704327R91

BEARING, BALL

clutch shaft rear

1шт.

Group index in the front of the catalogue

1шт.

15

42454H

BALL BEARING

BEARING, ball, clutch shaft rear

1шт.

Group index in the front of the catalogue

1шт.

15

708170R91

BEARING, BALL

clutch shaft rear

1шт.

Group index in the front of the catalogue

1шт.

15

703644R91

BALL BEARING

BEARING, ball, trans. P.T.O. driving shaft rear

1шт.

Separate group indexes to units

1шт.

15

704327R91

BEARING, BALL

trans. P.T.O. driving shaft rear

1шт.

Separate group indexes to units

1шт.

15

42454H

BALL BEARING

BEARING, ball, trans. P.T.O. driving shaft rear

1шт.

Separate group indexes to units

1шт.

15

708170R91

BEARING, BALL

trans. P.T.O. driving shaft rear

1шт.

Separate group indexes to units

1шт.

16

3062462R91

BEARING

INA

1шт.

Group index in the front of the catalogue

1шт.

17

3062461R1

SPACER

pilot bearing distance piece

1шт.

Group index in the front of the catalogue

1шт.

18

3073618R2

SHAFT

clutch, on orders for R1 order shaft 3073618R2 w/ring 3119806R1

1шт.

Group index in the front of the catalogue

1шт.

19

703877R1

STUD

3шт.

20

NSS

NOT SOLD SEPARAT

SHAFT, gear shifter fork, order package 3067265R91

1шт.

21

3070050R91

SEAL

OIL SEAL, clutch and P.T.O. driving shaft, opt.

1шт.

21

3070049R91

SEAL

OIL SEAL, clutch and P.T.O. driving shaft, opt.

1шт.

21

3048756R91

SEAL

OIL SEAL, clutch and P.T.O. driving shaft, A2, opt.

1шт.

Group index in the front of the catalogue

1шт.

22

3067261R2

HOUSING

gear carrier

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex. hd.

1шт.

329-146

JAM NUT,Jam, 3/8"-16, G5

Screw, mach., hex. Jam, 3/8"-16, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

3048721R1

BOLT (SPREADER)

BOLT, locking

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

3048730R2

RAIL

gear shifter

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4" x 7/8" hex. hd.

2шт.

141155

DOWEL,3/16" x 3/4"

PIN, dowel 3/16" x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

3072885R1

BALL,1/4" Dia

steel

1шт.

26

3048726R1

COUNTERSHAFT

1шт.

27

3048726R11

SHAFT

COUNTERSHAFT, w/ball 3072885R1 and countershaft 3048726R1 CPTE.

1шт.

28

443024

GROOVED PIN,3/16" x 1 1/4", Type F

PIN, 3/16' x 1-1/4" type 8 groove

2шт.

29

3070705R1

SHAFT

idler

1шт.

30

3048725R1

SPACER

countershaft

1шт.

31

3048722R21

GEAR

w/gear and two bearing 3048759R91 CPTE., countershaft cluster

1шт.

32

3048759R91

BEARING

needle roller, countershaft cluster gear

2шт.

33

NSS

NOT SOLD SEPARAT

GEAR, countershaft cluster (NSS)

1шт.

34

3048715R4

THRUST WASHER

WASHER, thrust

1шт.

35

3070703R1

GEAR

idler, CPTE.

1шт.

36

3070729R91

BEARING

needle roller, idler gear

2шт.

37

3070704R1

SLEEVE

idler gear, needle roller bearing

1шт.

38

3070707R1

SPACER

roller shaft

1шт.

39

3070708R1

TUBE,0.828" ID, 1.604" Length

idler spacer

1шт.

40

3073619R1

COLLAR

trans. driving shaft

1шт.

3067261R21

HOUSING

CPTE., gear carrier, comprising (1) housing 3067261R2 (1) fork, (2) oil seal 3048756R91, (2) pin 17132R1, (1) shaft

1шт.

Group index in the front of the catalogue

1шт.

3067262R92

HOUSING

CPTE., gear carrier, comprising (1) housing 3067261R2 (1) fork, (2) pin 17132R1, (1) shaft

1шт.

Separate group indexes to units

1шт.

3067265R91

FORK

PACKAGE, shifter fork, service, comprising: (1) fork, (2) pin 17132R1, (1) shaft

1шт.

3070727R91

PACKAGE

service, forward and reverse trans.

1шт.
