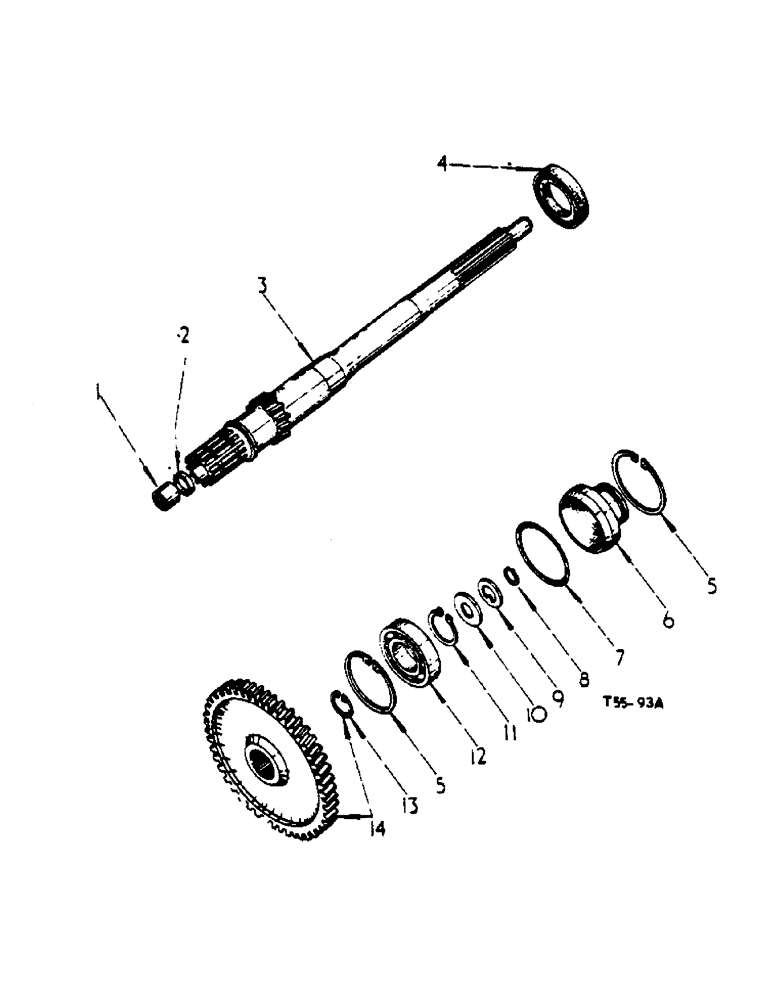

Запчасти Case IH 364 (6-47) - ATTACHMENTS, FULL FWD. AND REV. ATTACHMENT, P.T.O. DRIVING SHAFT AND GEARS, HEAVY DUTY SINGLE CLUTCH Attachments

1

3062462R91

BEARING

I.N.A.

1шт.

2

3062461R1

SPACER

pilot bearing distance piece

1шт.

3

3073617R1

SHAFT

trans. and P.T.O. driving

1шт.

4

3066617R91

SEAL

OIL SEAL, trans. and P.T.O. driving shaft, opt.

1шт.

4

751080R91

SEAL

OIL SEAL, trans. and P.T.O. driving shaft, opt.

1шт.

4

3049150R92

SEAL

OIL SEAL, trans. and P.T.O. driving shaft, opt.

1шт.

5

751149R1

RING

CIRCLIP, P.T.O. front bearing retaining, 85 mm internal

2шт.

6

751148R3

CAP

P.T.O. front bearing

1шт.

7

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

"O" RING, 3-3/8" x 3-3/4" x 3/16 P.T.O. front bearing cap

1шт.

8

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

9

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

10

751142R1

WASHER

P.T.O. shaft, front, retaining

1шт.

11

751146R1

RING

CIRCLIP, P.T.O. front bearing, retaining, 45 mm int

1шт.

12

704327R91

BEARING, BALL

BEARING, P.T.O. shaft, front, opt.

1шт.

12

703644R91

BALL BEARING

BEARING, P.T.O. shaft, front, opt..

1шт.

12

42454H

BALL BEARING

BEARING, P.T.O. shaft, front, opt.

1шт.

12

708170R91

BEARING, BALL

BEARING, P.T.O. shaft, front, opt.

1шт.

13

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

14

3044007R91

GEAR, w/circlip 751145R1 CPTE., driven P.T.O., 55 teeth

1шт.
