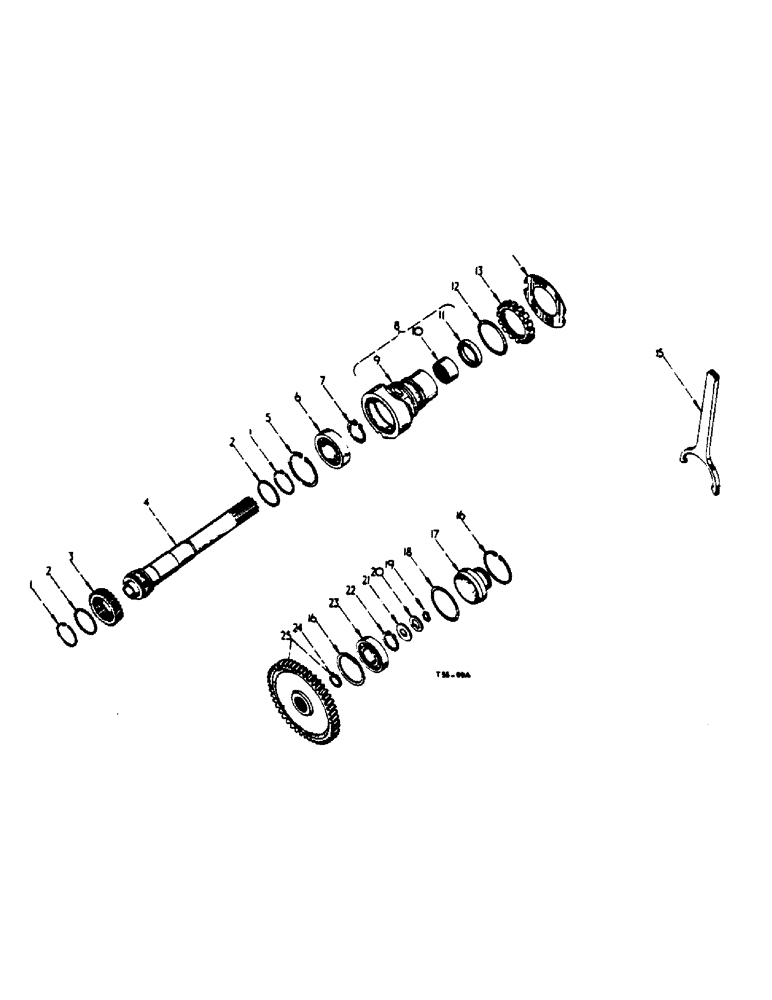

Запчасти Case IH 364 (6-45) - ATTACHMENTS, FULL FORWARD AND REVERSE ATTACHMENT, P.T.O. DRIVING SHAFT AND GEARS, 1,050 R.P.M. Attachments

1

3047842R1

RETAINER

CIRCLIP, retaining

2шт.

2

3048826R1

WASHER, retaining

2шт.

3

3048825R1

GEAR, P.T.O. driving, 23 teeth

1шт.

4

3048824R1

SHAFT, P.T.O. driving

1шт.

5

751297R1

RETAINER

CIRCLIP, ball bearing, retaining

1шт.

6

704235R91

BALL BEARING

BEARING, ball, P.T.O. driving shaft, opt.

1шт.

6

704234R91

BALL BEARING

BEARING, ball, P.T.O. driving shaft, opt.

1шт.

6

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

P.T.O. driving shaft, opt.

1шт.

6

3048701R91

BALL BEARING

BEARING, ball, P.T.O. driving shaft, opt.

1шт.

7

751638R1

RING, SNAP

CIRCLIP, retaining, ball bearing

1шт.

8

3048693R11

CAGE, w/cage 3048693R1, bearing 392680R1 and oil seal 3048704R91 CPTE., P.T.O. driving shaft bearing

1шт.

9

3048693R1

CAGE, P.T.O. driving shaft bearing

1шт.

10

392680R1

BEARING, P.T.O. driving shaft, front, needle roller

1шт.

11

3048704R91

OIL RESERVOIR

OIL SEAL, P.T.O. driving shaft

1шт.

3066621R91

SEAL

OIL SEAL, P.T.O. driving shaft

1шт.

12

352216R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

"O" RING P.T.O. driving shaft bearing cage

1шт.

13

3048697R1

NUT, lock, P.T.O. driving shaft bearing cage

1шт.

14

3048696R1

WASHER, lock, P.T.O. driving shaft bearing cage.

1шт.

15

3048695R1

SPANNER, P.T.O. driving shaft bearing cage locknut

1шт.

16

751149R1

RING

CIRCLIP, driven gear bearing retainer

2шт.

17

751148R3

CAP

P.T.O. front bearing

1шт.

18

468335R1

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

"O" RING, P.T.O. front bearing cap, 3-3/8" x 3-3/4" x 3/16"

1шт.

19

516010R1

O-RING

CIRCLIP, 3/4" ext.

1шт.

20

NSS

NOT SOLD SEPARAT

(Not used)

1шт.

21

751142R1

WASHER

front P.T.O. retaining

1шт.

22

751146R1

RING

CIRCLIP, driven gear bearing retainer

1шт.

23

703644R91

BALL BEARING

BEARING, ball, P.T.O. driven gear, opt.

1шт.

23

704327R91

BEARING, BALL

P.T.O. driven gear, opt.

1шт.

23

42454H

BALL BEARING

BEARING, ball, P.T.O. driven gear, opt.

1шт.

23

708170R91

BEARING, BALL

P.T.O. driven gear, opt.

1шт.

24

751145R1

RING, SNAP

CIRCLIP, P.T.O. driven gear

1шт.

25

3045892R11

GEAR, w/circlip 751145R1 CPTE., P.T.O. driven, 46 teeth

1шт.
